LINDY 42347 2prt HDMI 18G USBC,USB2&Aud (97-42347)

$295.00(AUD inc. Tax)
Qty
NO STOCK - BACK ORDER
Help
Bookmark and Share

Related Items

No related items.

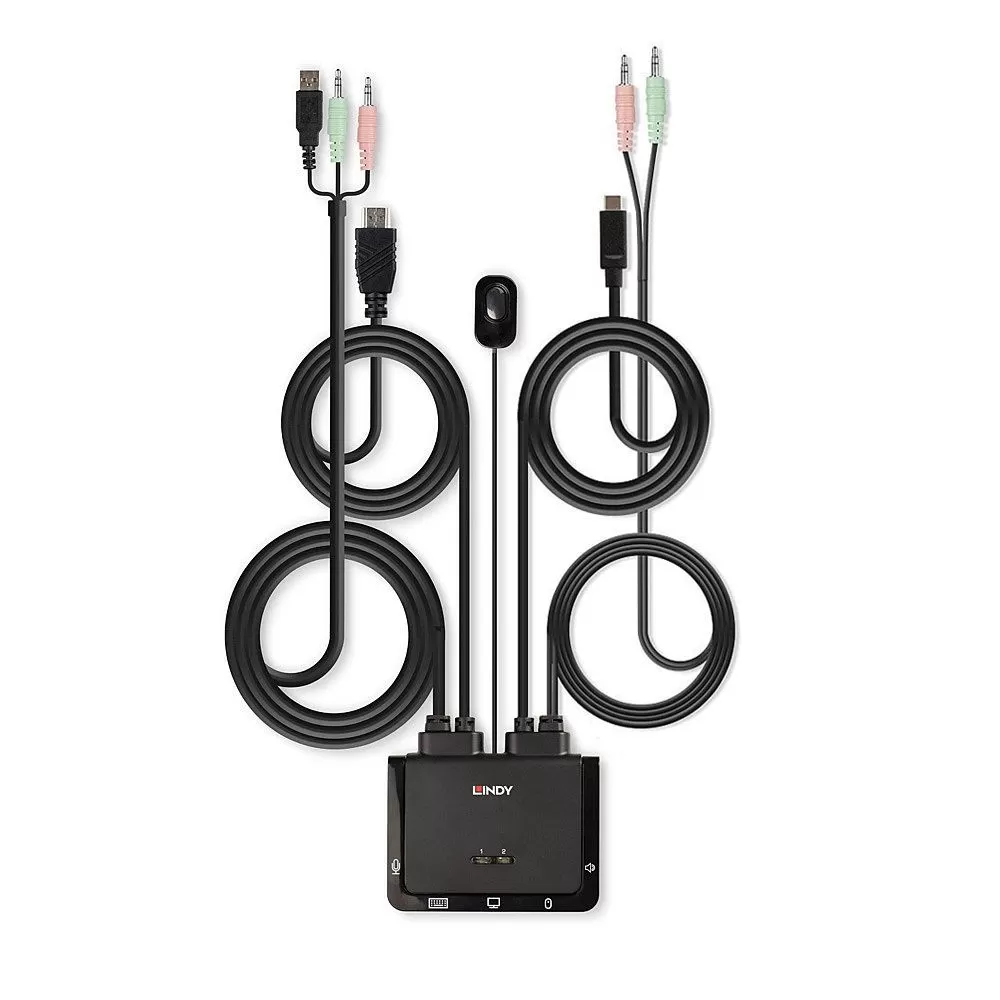

2 Port HDMI 18G, USB C, USB 2.0 & Audio KVM Switch

  • Controls an HDMI PC and Type C laptop or tablet from a single keyboard, mouse and monitor
  • Switches via push button control, software or keyboard hot keys
  • Supports resolutions up to 4K UHD 3840x2160@60Hz
  • Integrated cables for quick, hassle-free installation
  • 2 year warranty

The Lindy 2 Port HDMI 18G, USB Type C, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over a HDMI equipped PC and Type C laptop or Desktop OS tablets from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need to purchase additional cables and to save time during installation.

Support for resolutions up to 3840x2160@60Hz ensures high image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The integrated USB Type C cable allows for control of a variety of laptops and tablets alongside a PC, great for maximising workspaces in universities or residential offices. The audio output port on the main unit also allows users to connect headphones or speakers to add immersive 2-channel audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first-time users.

Package Contents
  • HDMI/USB Type C KVM switch
  • Lindy Manual



Specifications

  • AV Interface: HDMI, USB Type C
  • Console Interfaces: USB
  • Interface Standard: HDMI 18G, USB 2.0
  • Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
  • HDCP Support: HDCP 1.4
  • Supported Audio: Analogue Stereo
  • Separate Audio Ports: 2 x 3.5mm (Female)
  • Serial Interface: -
  • Console Number: 1
  • Max Number PC/Server: 2
  • Cascadable: -
  • Switching Method: Push Button, Hotkey Switching & Software
  • 19" Rack Mountable: -
  • Special Features:
  • Supports USB 2.0 Hubs and Device Sharing, Active LED Indicators

Connectors

  • Console Interfaces: HDMI (Female), USB 2.0 Type A (Female), 2 x 3.5mm (Female)
  • PC/Server Interfaces: HDMI (Male), USB Type C (Male), USB 2.0 Type A (Male), 2 x 3.5mm (Male) 1.2m Integrated Cables
  • Other Interfaces: -
  • Power : Bus-Powered

Physical Properties

  • Dimensions (approx.) WxDxH: 97x25x82.18mm (3.82x0.98x3.24in)
  • Housing Material: Plastic
  • Net Weight : 0.433kg (0.95lb)
  • Operating Temperature: 0°C - 55°C (32°F - 131°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 0 - 90% RH (non-condensing)
  • Power Requirements: 5V Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 160x60x250mm (6.3x2.36x9.84in)
  • Gross Weight: 0.514kg (1.13lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH & California Proposition 65
