LINDY 32310 4" programable touchpad` (97-32310)

10% off	~~$1,295.00~~ $1,165.49(AUD inc. Tax) Qty NO STOCK - BACK ORDER

Overview
Specifications
Accessories

4” Programmable Touchpanel, AV Room Control and Automation

Programmable 4” wall-mounted touchpanel designed for intuitive control of professional AV and room automation systems.
Supports LAN, RS-232, RS-485, IR, relay and I/O control for integration with displays, switchers, audio systems and environmental controls.
Simple configuration through Lindy Pro Control software enables customised user interfaces and room control workflows.
PoE or external power support simplifies installation while reducing cabling requirements in meeting rooms and educational spaces.
Compact professional design with capacitive touch interface provides reliable operation for corporate, hospitality and presentation environments.

Intuitive Touch Control for Professional AV Environments

The Lindy 4” Control Touchpanel provides a flexible and programmable room control interface for professional AV and automation environments, enabling intuitive management of displays, audio systems, lighting and connected devices from a compact wall-mounted touchscreen.

Programmable AV and Room Automation Interface

Designed for modern meeting rooms, classrooms and presentation spaces, this 4” capacitive touchpanel combines a user-friendly programmable interface with comprehensive control connectivity including LAN, RS-232, IR, relay and I/O ports. Support for PoE or external power together with simple configuration through Lindy Pro Control software allows streamlined integration into professional AV and automation systems.

At a Glance

4” capacitive touchscreen
Provides intuitive and responsive room and device control.

Programmable control platform
Customise interfaces and workflows through Lindy Pro Control software.

Comprehensive connectivity
Supports LAN, RS-232, IR, relay and I/O integration.

PoE or external power
Flexible powering options simplify installation and deployment.

Key Benefits

Simplifies room and device management
Provides a centralised touch interface for controlling displays, switchers, audio systems, screens, lighting and other connected AV or automation devices.

Flexible integration across AV systems
Integrated LAN, RS-232, IR, relay and I/O ports support compatibility with a wide range of professional AV and environmental control systems.

Customisable user experience
The programmable touchscreen interface can be tailored through Lindy Pro Control software to suit different rooms, operational requirements and user workflows.

Efficient installation and deployment
Support for PoE allows both network connectivity and power delivery through a single cable, reducing installation complexity and infrastructure requirements.

Professional wall-mounted design
The compact form factor integrates neatly into modern meeting rooms, lecture theatres, classrooms and hospitality environments.

Designed for scalable AV environments
Suitable for standalone room control or integration into larger enterprise AV and automation infrastructures requiring consistent user operation.

Typical Applications

The 4” Control Touchpanel is ideal for meeting rooms, classrooms, lecture theatres, hospitality suites, boardrooms and presentation environments requiring intuitive and reliable control of AV systems and room automation devices. It is particularly suited to professional installations where customised user interfaces and simplified room operation are important for both staff and visitors.

Technical Summary

The touchpanel features a 4” capacitive touchscreen with an ARM Cortex-A7 processor running Linux and integrated 100Mbps network connectivity via RJ45. Multiple control interfaces including RS-232, IR, relay and configurable I/O ports provide flexible compatibility with professional AV and automation equipment.

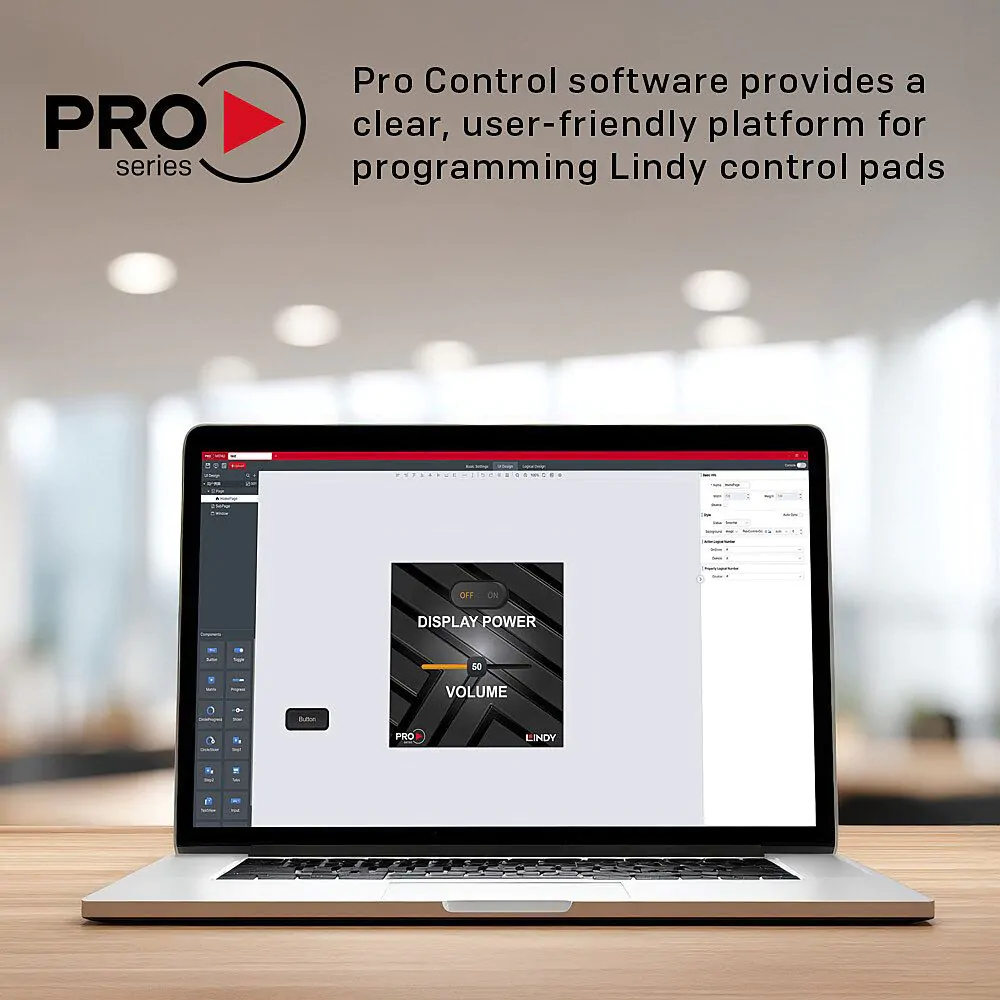

Configuration and programming are managed using Lindy Pro Control software, enabling customised touch interfaces and room control functionality tailored to individual deployment requirements.

The compact wall-mounted enclosure supports both PoE and external DC powering for flexible installation within corporate, education and hospitality environments. The touchpanel is supplied with mounting accessories, power supply and installation documentation, and is backed by a 2-year warranty.

Package Contents

Control Touchpad
3pin-3.81mm Phoenix Connector (male）
2x Wall Mounting Screw with wall mounting bracket
24V 1A Multi Country Power Supply, 2pin-3.81mm Phoenix Connector
Quick Installation Guide

Specifications

CPU: ARM Cortex-A55 1.8GHz
Operation system: Android 11.0
RAM: 4Gb DDR4
Flash memory: 32Gb EMMC
Interfaces Standard: PoE 802.3af
Supported Bandwidth: 1Gbps
Maximum Distance: 100m (393.7ft) (Point to Point)
Transmission Medium: Cat.6
Special Features: programmable via Lindy Pro Control software and app

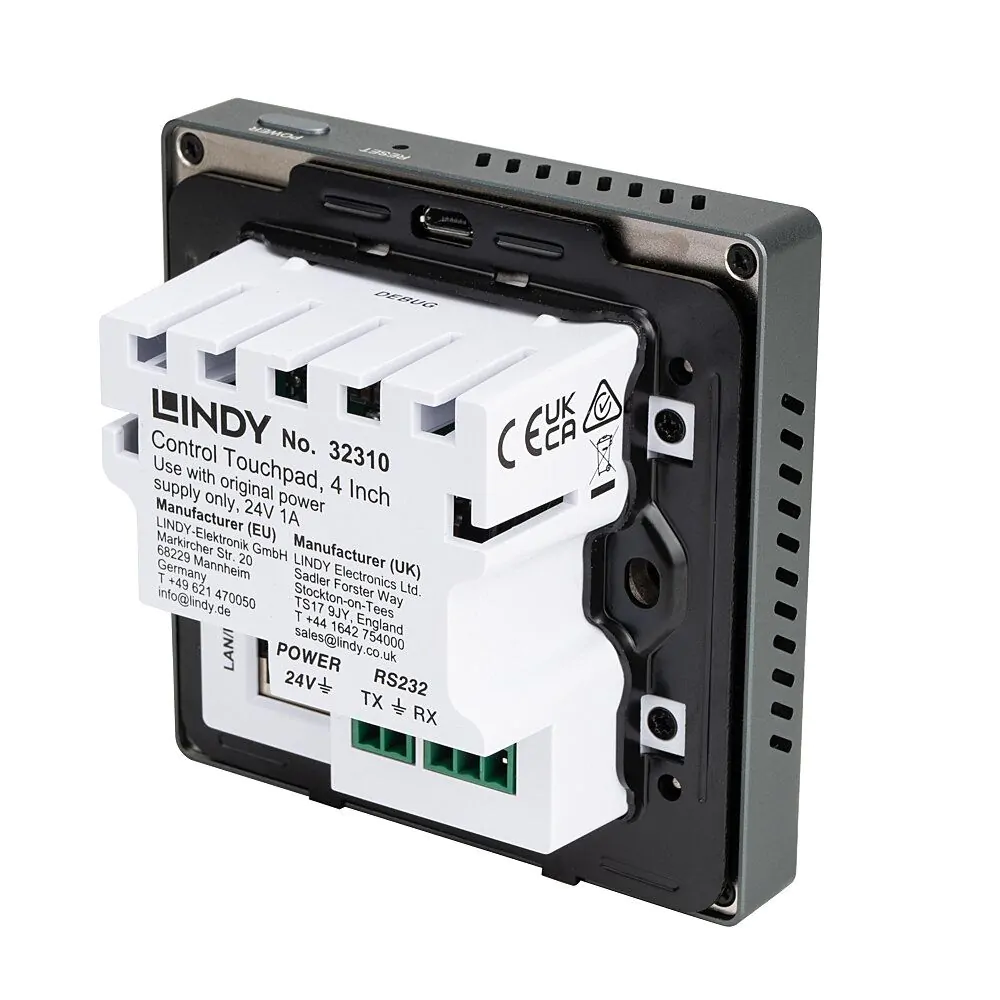

Connectors

Control Interfaces:
1x RJ45 POE
1x RS232 (3 pin terminal block)
1x Micro-USB debug port (Female)
Power: 2 pin terminal block

Physical Properties

Dimensions (approx.) WxDxH: 86x86x44mm (3.39x3.39x1.73in)
Housing Material: Aluminium alloy frame
Net Weight: 0.218kg (0.48lb)
Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 10 - 90% RH (non-condensing)
Power Requirements: 24VDC 1A
MTBF: >30000 hours
Colour: Dark Grey Frame

Miscellaneous

Packaging Type: Carton box
Packaging Dimensions: 152x133x95mm (5.98x5.24x3.74in)
Gross Weight: 0.440kg (0.97lb)
Warranty: 2
Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
