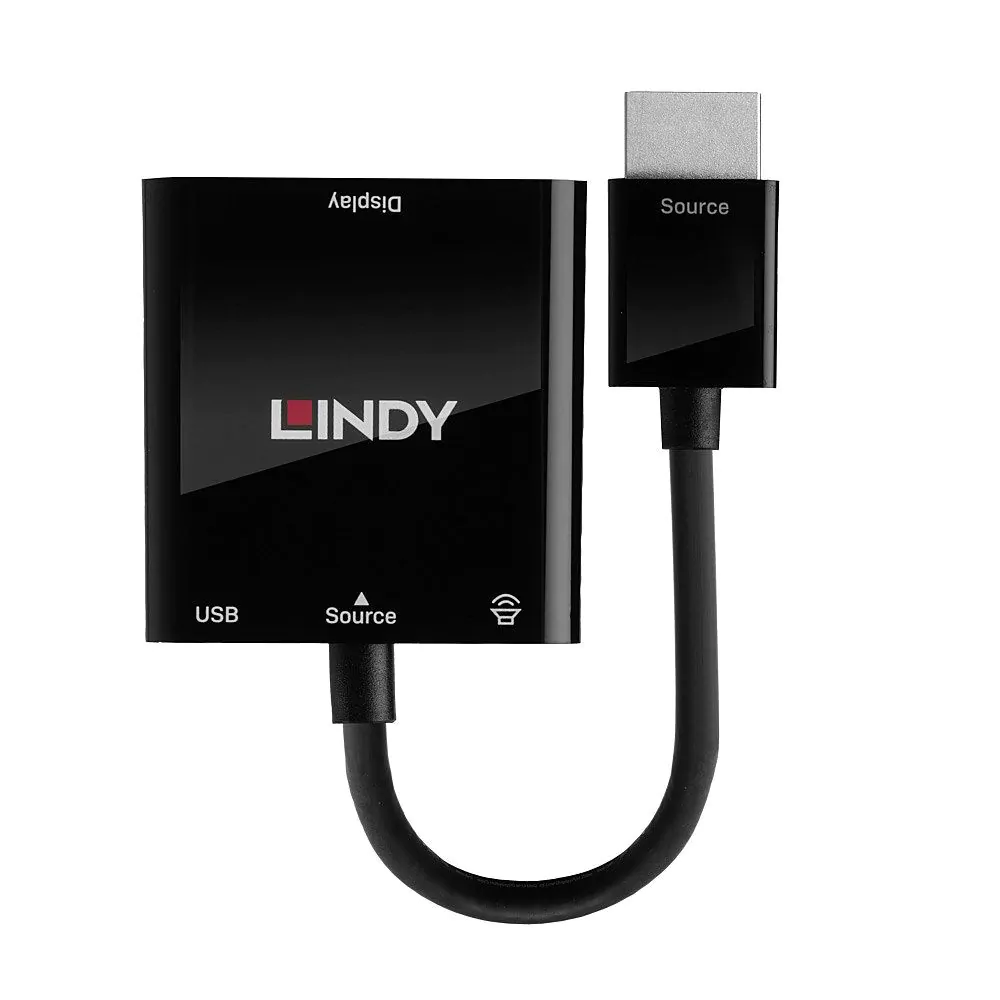

LINDY 38285 HDMI - VGA & audio converter (97-38285)

5%
off
$35.00 $33.24(AUD inc. Tax)
Qty
IN STOCK
Help
Bookmark and Share

Related Items

No related items.

HDMI to VGA & Audio Converter, HDMI In / VGA + Audio Out

  • Connects an HDMI equipped device to a VGA display and analogue speakers
  • Supports resolutions up to 1920x1200 including 1080p
  • Direct signal conversion, without scaling
  • Compact dimensions for easy installation and use
  • 2 Year Warranty

The Lindy HDMI to VGA and Audio Converter connects a HDMI source such as a laptop, ultrabook or PC to a VGA display, with a seperate 3.5mm port for connection with analogue speakers.

It converts the HDMI signal (along with the associated digital audio stream) into an analogue VGA signal, simultaneously extracting the audio for a stereo speaker connection. Full HD signals are supported, including 1080p for HDTV connections and up to 1920x1200 for PC VGA monitors.

No external power source is required, which makes this converter the perfect tool for flexible working in different environments, whether it’s in the office, travelling to hold presentations or at home, as it also permits the use of older VGA monitors or projectors to display content.



Connectors

  • Connector A: HDMI Type A Male
  • Connector B: VGA Female, 3.5mm Stereo Audio Port, USB Micro-B (Power)
  • Housing Material: ABS
  • Connector Plating: Nickel
  • Pin Construction: Phosphor Bronze
  • Pin Plating: Nickel
  • Dimensions (approx.) WxDxH: 45x43x14.5mm (1.77x1.69x0.57in)

Cable Construction

  • Length: 100mm (3.94in)
  • Standard: HDMI 1.3
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 4.8mm (0.19in)
  • Jacket Material: PVC
  • Conductor Material: Tinned Copper
  • Conductor Gauge: 30AWG
  • Shielding: Aluminium Braid + Mylar

Specifications

  • Supported Bandwidth: 4.95 Gbps
  • Maximum Resolution: 1920x1200@60Hz 12bit
  • Nominal Attenuation:
  • 300kHz-825MHz <5dB
  • 825MHz-2.475GHz 5dB-12dB
  • 2.475GHz-4.125GHz 12dB-20dB
  • 4.125GHz-5.1GHz 20dB-25dB
  • Operating Temperature: 0°C - 70°C (32°F - 158°F)
  • Storage Temperature: -10°C - 80°C (14°F - 176°F)

Miscellaneous

  • Packaging Type: Polybag
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS & REACH
