LINDY 43399 USB32 15mt Hybrid act ect (97-43399)

5%
off
$765.00 $726.74(AUD inc. Tax)
Qty

ETA: 21st Aug 2026

Bookmark and Share

Related Items

No related items.

15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable

  • 15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable for data and video extension
  • Data transfer rates up to 10Gbps
  • Supports DisplayPort Alternate Mode and DP 1.4 (4 lanes) with video resolutions up to 4K 3840x2160@144Hz
  • Supports Power Delivery up to 60W (20V 3A)
  • 2 year warranty

15m USB 3.2 10Gbps & DP 1.4 Type C Hybrid Cable

Go the Distance with Confidence.

Hybrid Cable. Maximum Potential.

The Lindy 15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable offers an advanced, long-distance USB-C connection for combined high-speed data, 4K144 video, and 60W power. Using fibre optic technology, this hybrid cable enables reliable, interference-resistant transmission across 15 metres — ideal for modern meeting spaces, classrooms, and professional AV setups. Building on the proven performance of Lindy No. 43333, this version adds full USB 10Gbps support and extended video refresh rates, ensuring maximum performance across all applications.

AT A GLANCE

Fibre optic hybrid construction - Maintains high-speed data and video over 15 metres.

RFI/EMI resistance - Perfect for medical, industrial, and AV-critical setups.

USB 3.2 Gen 2, 10Gbps - 10Gbps transfer speeds for data-intensive workflows.

DisplayPort 1.4 Alt Mode - Supports high refresh rates for smooth, detailed visuals.

Power Delivery up to 60W - Delivers charging power to laptops and devices.

Flexible cable design - Simplifies routing through desks, walls, and mounts.

INSTALLATION EXAMPLE

15m USB 3.2 10Gbps & DP 1.4 Type C Hybrid Cable Installation Example

TYPICAL SECTORS

10m USB 3.2 10Gbps & DP 1.4 Type C Hybrid Cable Cable Applications

APPLICATIONS

Meeting & Conference Rooms - Connect laptops to LFDs and USB-C displays across long distances.

Classrooms & Auditoriums - Clean, interference-resistant AV installation.

Digital Signage - Integrate display, power, and control in one cable run.

Creative Studios - Power and connect USB-C monitors and devices at a distance.

Enterprise Workstation - Enable high-speed, high-resolution connections in flexible setups.

Retail & Point-of-Sale Systems - Clean, long-distance connections from back-office to displays.

Lindy-x-Inogeni

GO FURTHER. TRANSFER FASTER. POWER SMARTER - WITH LINDY.

Combining 10Gbps data transfer, 4K144 video, and 60W power delivery into one slim, fibre-based cable, the Lindy 15m USB 3.2 Gen 2 & DP 1.4 Hybrid Cable is the modern AV integrator’s best choice for powerful Type C connectivity with room to move.

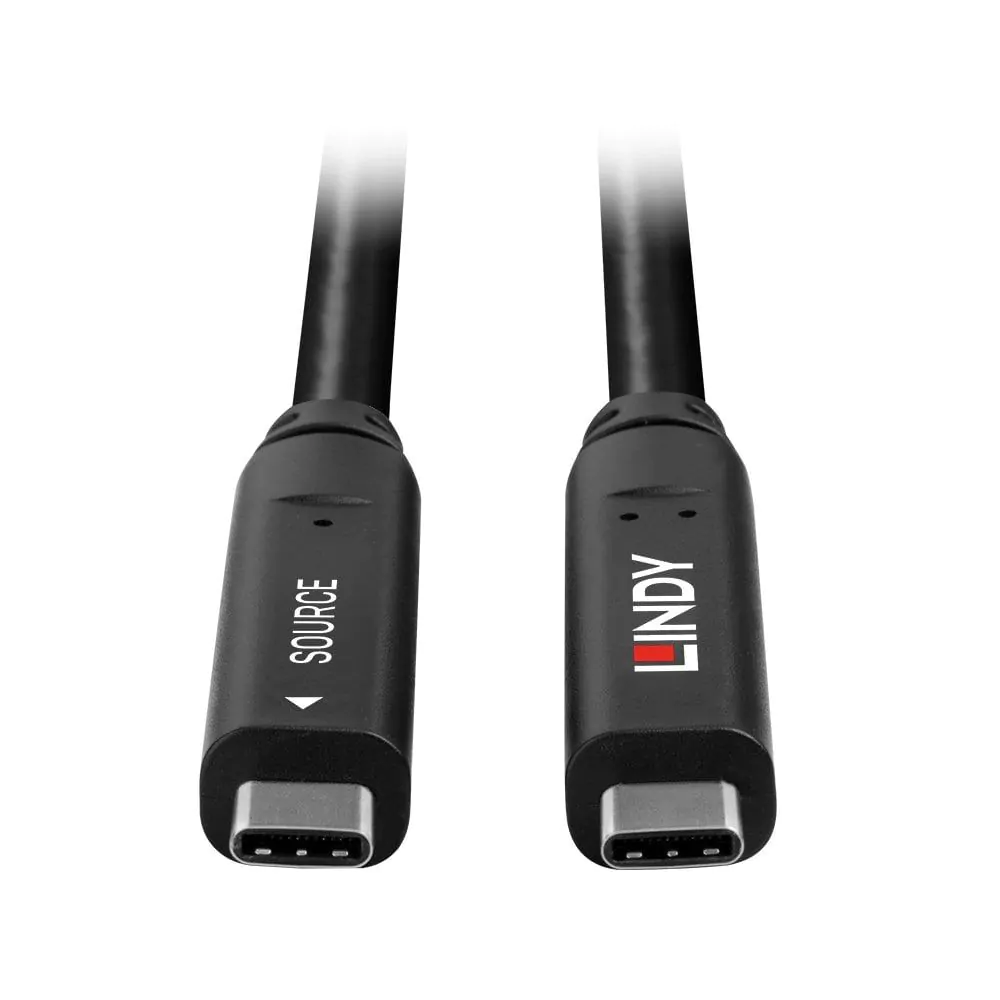

15m USB 3.2 10Gbps & DP 1.4 Type C Hybrid Cable Product View

Package Contents
  • 15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
  • Lindy manual



Connectors

  • Connector A: USB Type C Male
  • Connector B: USB Type C Male
  • Power: PD 20V / 3A (60W)
  • Housing Material: Plastic
  • Connector Plating: Stainless Steel + Solder Nickel 50u" min.
  • Pin Construction: Copper Alloy + Mating area Au
  • Pin Plating: Mating area: 2µ" Au min.
  • Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)

Cable Construction

  • Length: 15m (49.21ft)
  • Standard: USB 3.2 / 3.1 Gen 2
  • Colour: Black
  • Type: Round
  • Jacket Diameter: 6.5mm (0.26in)
  • Jacket Material: PVC
  • Conductor Material: -
  • Conductor Gauge: 21AWG*3 (Power)
  • Shielding: Tinned Copper

 Specifications

  • Supported Bandwidth: 10Gbps (USB 3.2 Gen 2), 32.4Gbps (DP 1.4, 4 lanes)
  • Maximum Resolution: 4K 3840x2160@144Hz
  • Nominal Attenuation: ≤10dB/km@850nm,≤8dB/km@1300nm
  • Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
  • Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
  • Operating Temperature: 5°C to 60°C (41°F - 140°F)
  • Storage Temperature: -20°C to 80°C (-4°F - 176°F)
  • Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber
  • Transmission Technology: 850nm Laser Optical

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
  • Net Weight: 1.2kg (2.65lb)
  • Gross Weight: 1.4kg (3.09lb)
  • Warranty (Years): 2
  • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
