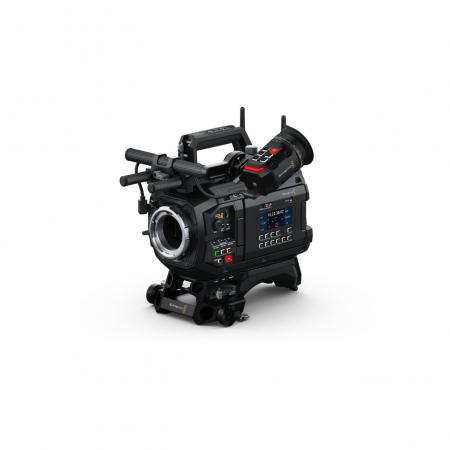

BLACKMAGIC Ursa Cine 12K LF 100G camera (b-CINEURSAA12KLF100G)

The Blackmagic Design URSA Cine 12K LF 100G Camera captures cinema-quality footage with live production workflows that were previously impossible. Built around a full-frame 36 x 24mm sensor delivering 12K resolution and 16 stops of dynamic range, this camera records Blackmagic RAW while simultaneously streaming via 100 Gigabit Ethernet, Wi-Fi, or mobile data to Blackmagic Cloud or live platforms, making it ideal for high-end drama, commercial work, and broadcast productions where remote monitoring and instant media delivery matter.


Cinematic Large-Format Sensor with RGBW Architecture

The 12K full-frame sensor features equal amounts of red, green, blue, and white pixels, delivering rich colours at every resolution from 4K to 12K without cropping. In-sensor scaling maintains your lens's full field of view regardless of recording format, while 16 stops of dynamic range capture detail in highlights and shadows that would be lost on traditional broadcast cameras.


Interchangeable Lens Mounts for Every Production

This body includes a locking EF mount, with optional B4, ARRI PL, and ARRI LPL mounts available separately. Switch between autofocus photographic lenses for fast-paced documentary work and cinema glass for controlled studio environments. Lens metadata is read through contact pins for monitoring and post-production workflows.


Built for High-End Production Environments

The magnesium alloy chassis with carbon fibre composite skin balances durability with portability. Dual 5-inch HDR touchscreens (1500 cd/m² brightness) include a fold-out monitor for operators and a dedicated assist station for focus pullers, eliminating the need for external monitors on many shoots. Backlit buttons remain visible in low light, while standard LEMO and Fischer connectors provide camera control, lens motor power, and 24V accessory power without additional cabling.


Professional Connectivity

    Dual 12G-SDI outputs for simultaneous monitoring with independent overlays
    100 Gigabit Ethernet for ST-2110 live video standards and Blackmagic Cloud storage sync
    USB-C for mobile data connection via smartphone tethering
    XLR audio inputs with phantom power
    10G Ethernet port for high-speed wired networking
    Wi-Fi 6 for wireless streaming and cloud uploads


Multiple Recording Formats and Frame Rates

Record 12K at 100 fps (12,288 x 6480 17:9) or 120 fps (2.4:1 widescreen), 8K at 224 fps (2.4:1), and 4.6K B4 crop at 240 fps with the optional B4 mount. The sensor supports 3:2 open gate, anamorphic formats with multiple de-squeeze factors (1.3x, 1.5x, 1.6x, 1.66x, 1.8x, 2x), and Super 35 modes (9K 4-perf, 3-perf, 2-perf) for compatibility with classic cinema lenses. All formats are captured in Blackmagic RAW with constant quality or constant bit rate encoding options.


Built-In ND Filters

Motorised 2-stop, 4-stop, and 6-stop ND filters are colour-balanced to match the camera's sensor and filter both optical and infrared wavelengths evenly. Filter values display as ND numbers, stop reduction, or fractions on the LCD.


Generation 5 Colour Science

Blackmagic's latest film curve extracts maximum colour data from the sensor, delivering accurate skin tones and better rendering of highly saturated colours in high-contrast scenes. The technology works with all Blackmagic RAW files, including footage shot on previous Blackmagic cameras.


Live Streaming and Cloud Workflows

Stream directly to platforms via RTMP and SRT protocols, or send live feeds to Blackmagic ATEM Streaming Bridge for wireless video village monitoring. Connect via Ethernet, Wi-Fi, or mobile data by tethering an iOS or Android phone to the USB-C port. The camera automatically creates H.264 proxy files alongside full-resolution media, uploading proxies to Blackmagic Cloud in real time so editors worldwide can begin work immediately while high-resolution files transfer overnight.


High-Performance Recording Media

The included Media Module CF provides dual CFexpress card slots. Optional Media Module 8TB or 16TB units use removable M.2 SSDs that slot directly into Blackmagic Media Dock for fast file transfer to editing systems or network storage. An 8TB module captures over four hours of 12K Blackmagic RAW or 20 hours in 4K.


Advanced Monitoring and Metadata Tools

On-screen overlays display histogram, false colour, zebras, frame guides, focus peaking, and recording parameters. The digital slate system auto-advances take numbers and reel numbers, captures lens metadata automatically, and stores production information within Blackmagic RAW files for use in DaVinci Resolve during editing and grading.


Wireless Bluetooth Control

Control the camera remotely from up to 9 metres away using the Blackmagic Camera Control app on iPad or third-party apps on iOS and Android devices. Trigger recording, adjust settings, and enter metadata on jib, gimbal, or crane-mounted cameras without physical access to the unit.


Flexible Power Options

The 8-pin LEMO connector accepts 24V and 12V power from standard cinema batteries and power supplies. Use separately available Gold mount, V-mount, or B-mount battery plates from manufacturers including IDX, Blueshape, Core SWX, and BEBOB. Front LEMO and Fischer connectors provide power for lens motors and accessories directly from the camera.

Lens Mount
Canon EF
Image Sensor
Full-Frame
Effective Sensor Resolution
98 Megapixel (12,288 x 8040)
Image Stabilization
Supplies Stabilization Metadata
ISO/Gain Sensitivity
Native: 200 to 3200
Max Recording Modes
Blackmagic RAW
Up to 12K up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/80 fps
Max Video Output
via HDMI / SDI/BNC
Up to UHD 4K
Media/Memory Card Slot
Dual Slot: CFexpress Type B
Video I/O
RJ45

BNC
Mobile App Compatible
Yes: iOS Only
Functionality: Remote Control
Battery
Built-In Lithium-Ion
Imaging
Lens Mount
Canon EF
Lens Communication
Yes
Image Sensor
35.64 x 23.32 mm (Full-Frame) CMOS
Effective Sensor Resolution
98 Megapixel (12,288 x 8040)
Image Stabilization
Supplies Stabilization Metadata
Built-In ND Filter
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
Built-In CC Filter
No
Internal Filter Holder
No
Capture Type
Video Only
Exposure Control
Shutter Type
Mechanical Focal Plane Shutter and Electronic Rolling Shutter
ISO/Gain Sensitivity
Native: 200 to 3200
Signal-to-Noise Ratio
Not Specified by Manufacturer
Advertised Dynamic Range
16 Stops
Focus
Focus Mode
Automatic, Full-Time Servo, Manual Focus
Video Capture
Internal Recording
Blackmagic RAW
12288 x 8040 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/80 fps (90 to 1432 MB/s)
9648 x 8040 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
12288 x 6912 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/100 fps
12288 x 6480 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
7680 x 6408 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
9408 x 6264 up to 23.98/24.00/25/29.97/30.00/59.94/60.00/100 fps (54 to 856 MB/s)
8192 x 5360 up to 23.98/24.00/25/29.97/30.00/59.94/60.00/144 fps (40 to 533 MB/s)
6432 x 5360 up to 23.98/24.00/25/29.97/30.00/50/60.00 fps
12288 x 5112 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/120 fps
9312 x 4896 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
8688 x 4896 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
8192 x 4608 up to 23.98/24.00/25/29.97/30.00/59.94/60.00 fps
8192 x 4320 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
8192 x 3408 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/224 fps
4096 x 2680 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00/144 fps (10 to 135 MB/s)
4096 x 2304 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
4096 x 2160 up to 23.98/24.00/25/29.97/30.00 fps
3840 x 2160 up to 23.98/24.00/25/29.97/30.00/50/60.00 fps
4096 x 1704 up to 23.98/24.00/25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080 up to 23.98/24.00/25/29.97/30.00/50/60.00 fps
Video Output
via HDMI / SDI/BNC
3840 x 2160
1920 x 1080p
Fast-/Slow-Motion Support
Slow-Motion Only
Built-In Microphone
Stereo
Audio Recording
2-Channel, 24-Bit at 48 kHz
IP Streaming
RTMP, SRT
1920 x 1080 at 60p
Interface
Media/Memory Card Slot
Dual Slot: CFexpress Type B
Internal Storage
No
Video I/O
1x RJ45 LAN Output
2x BNC (12G-SDI) Output
Audio I/O
2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power)
1x 1/8" / 3.5 mm TRRS Headphone/Mic Output
Power I/O
1x LEMO 8-Pin (12 to 24VDC) Input
1x LEMO 7-Pin (12 to 24VDC) Output
1x Fischer 3-Pin (12 to 24VDC) Output
Other I/O
2x USB-C (Camera Interface) Input/Output
1x USB-C (Firmware)
1x RJ45 (10 Gigabit Ethernet) Control/Data/Monitor/Video Input/Output (Shared with Video Output)
1x BNC (Reference, Timecode) Data Input
Wireless
Wi-Fi
Mobile App Compatible
Yes: iOS Only
App Name: Blackmagic Camera Control
Functionality: Remote Control
Global Positioning (GPS, GLONASS, etc.)
No
Monitor
Display Type
Primary Monitor: Articulating 5" Touchscreen LCD
Status Display: Fixed Non-Touchscreen LCD
Resolution
Primary Monitor: 1920 x 1080
Power
Battery
Built-In Lithium-Ion
Environmental
Operating Conditions
32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions
-4 to 113°F / -20 to 45°C up to 90% Humidity
General
Shoe Mount
No
Tripod Mount
5x 3/8"-16 Female (Bottom)
4x 1/4"-20 Female (Bottom)
Accessory Mounting Thread
3x 1/4"-20 on Camera Body
4x 3/8"-16 on Camera Body
Netflix Approved
Yes
Materials
Carbon Fiber, Magnesium Alloy
Dimensions (W x H x D)
9.87 x 6 x 6" / 25.07 x 15.2 x 15.2 cm
Weight
8.2 lb / 3.7 kg (Body Only)
