LINDY 38300 70mt cat6 > DVI extender (97-38300)

10%
off
$225.01 $202.50(AUD inc. Tax)
Qty
NO STOCK - BACK ORDER
Help
Bookmark and Share

Related Items

No related items.

70m CAT6 DVI Extender

  • Extends DVI-D video signals up to 70m using low cost CAT5e/6 Cable (not included)
  • Supports resolutions from 800x600 up to 1920x1200 including 1080p
  • The Extender supports the following resolutions/distance combinations:
    - 800x600 up to 70m
    - 1024x768 up to 65m
    - 1280x1024 to 1920x1200 up to 50m
  • HDCP not supported
  • 2 year warranty

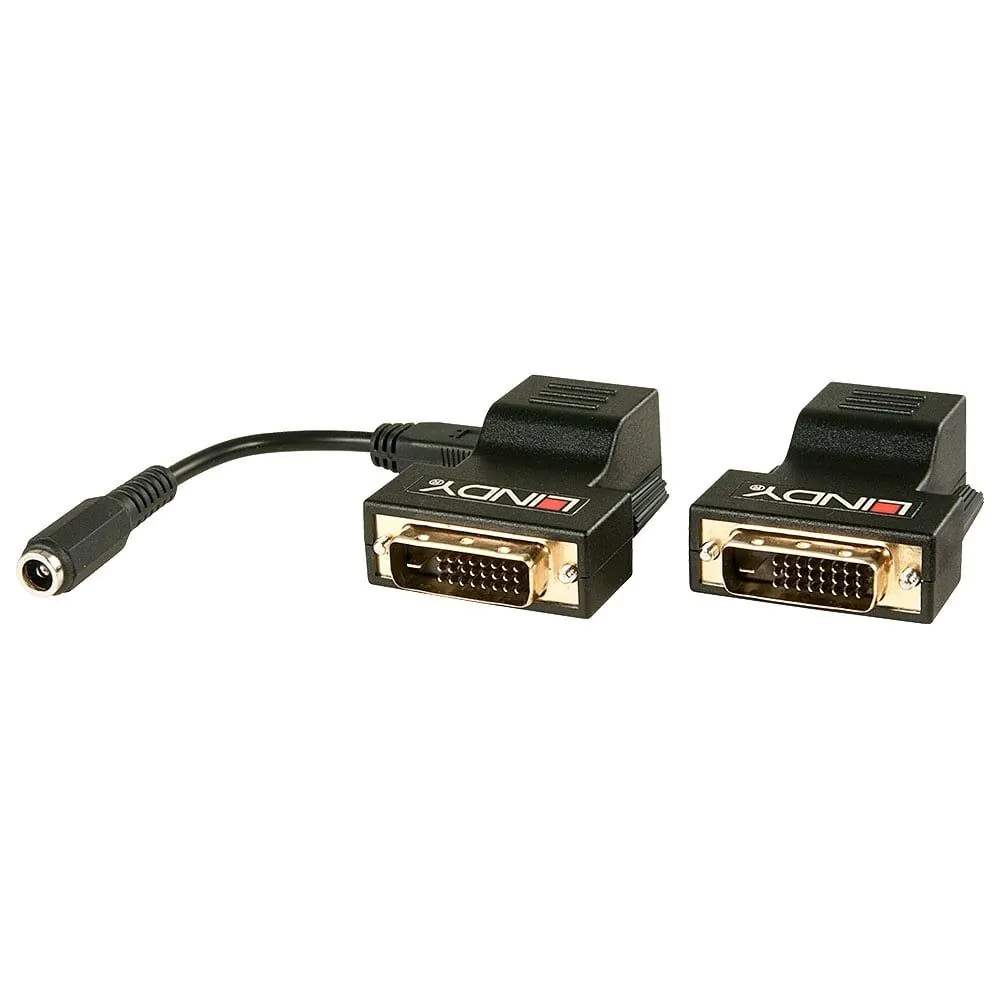

Please note: picture is for illustration purposes only. Network cable is not included.

With this Extender you can use up to 70m of high quality inexpensive CAT5e/6 cable to connect a DVI source to a DVI display device. The slim RJ45 connectors and CAT6 cable (not included) allow greater flexibility not possible with larger DVI connectors and cables. Normal operation will not require external power; however the Transmitter unit allows external power to be attached in cases where the graphics card does not provide sufficient power.

The Extender supports the following resolutions/distance combinations:
  • 800x600 = 70m
  • 1024x768 = 65m
  • 1280x1024 up to 1920x1200 = 50m

Additional Requirements:

  • RJ-45 patch cable: 1 x CAT5e/6 UTP Cable
Package Contents
  • Transmitter and Receiver Units
  • LINDY Manaul



Specifications

  • AV Interface: DVI-D
  • Interface Standard: DVI-D 1.1 (Single Link)
  • Supported Bandwidth: 4.95Gbps
  • Maximum Distance:
  • 70m (229.66ft) - 800x600@60Hz
  • 50m (164.04ft) - 1920x1200@60Hz
  • Maximum Resolution: 1920x1200@60Hz
  • Transmission Medium: 1 x Cat.5e or Cat.6

Connectors

  • Transmitter Input: DVI-D (Male)
  • Transmitter Output: RJ45 (Female)
  • Receiver Input: RJ45 (Female)
  • Receiver Ouput: DVI-D (Male)
  • Bidirectonal Ports: -
  • Power: USB Micro-B socket

Physical Properties

  • Dimensions WxDxH: 55x40x22mm (2.17x1.57x0.87in) per unit
  • Housing Material: Plastic
  • Net Weight: 0.03kg (0.07lb) per unit
  • Operating Temperature: 0°C - 55°C (32°F - 131°F)
  • Storage Temperature: -20°C - 85°C (-4°F - 185°F)
  • Humidity: 0 -  95% RH (non-condesing)
  • Power Requirements: 5VDC
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 110x165x42mm (4.33x6.5x1.65in)
  • Gross Weight: 0.14kg (0.31lb)
  • Warranty (Years): 2
  • Certificated: CE, FCC, RoHS, REACH
