MANFROTTO MVK504XCTALL 536CF 504X hd (TM-VK504XCTALL)

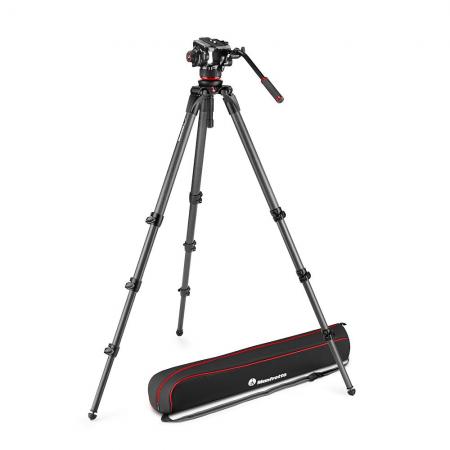

This video system includes the Manfrotto 504X Fluid Video Head and the 536 Single Leg Carbon Tripod.

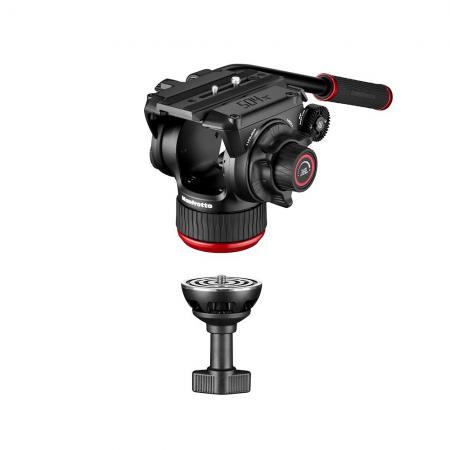

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The tripod head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

The 536 features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm, perfect in combination with the 504X head for fast levelling and precision. Thanks to its four section design, you can easily set up and disassemble in a flash, so you’ll never waste time on a shoot.

The tripod enables you to select the exact angle that suits you thanks to the leg angle selector. Together with the head you can move smoothly up and down, from 40.5cm to 217.5cm.

Supplied with its own padded carrying bag.

Weight 5.84 kg
Safety Payload UNI/PdR 105:2021 12 kg
Counterbalance System Variable Steps
Counterbalance Weight 2.2, 4.4, 6.5 kg
Maximum Height 218 cm
Min Height 42 cm
Base Diameter 75 mm
Bubble Spirit Level (No.) 1
Center of gravity 55 mm
Carrying Bag Included yes
Center Column no centre column
Closed Length 87 cm
Colour Black
Top Attachment 1/4″ screw, 3/8″ screw attachmenttype
Ball Flat 0
Powered by (batteries) Lithium
Easy Link Yes (with antirotation)
Front Tilt -70° / +90° tiltrange
Head Type Video/Fluid Head
Leg Type Single
Leg Angles 23°, 50°, 70°
Leg Lock Type Flip Lock
Leg Sections 4
Material Aluminium, Carbon Fiber
Maximum Working Temperature 60 °C
Minimum Working Temperature -30 °C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360 °
Plate Type 504PLONGR-1
Quick Release Yes
Tilt Drag continuously adjustable from 0 to max level
Accessory Compatibility 114; 127V; 127VS; MVAPANBARM; MVAPANBARL
