MANFROTTO MVK504XTWINMA 504X hd MS legs (TM-VK504XTWINMA)

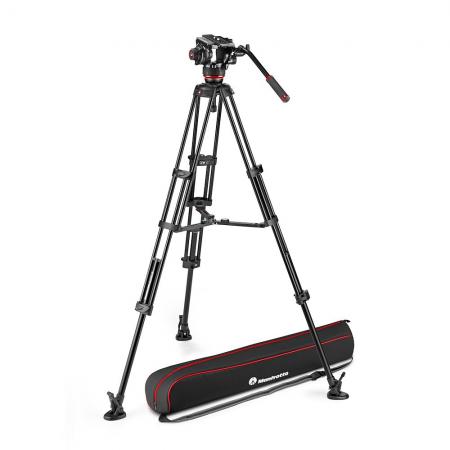

This video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINMA aluminium twin leg with middle spreader tripod.

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.

The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.

It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

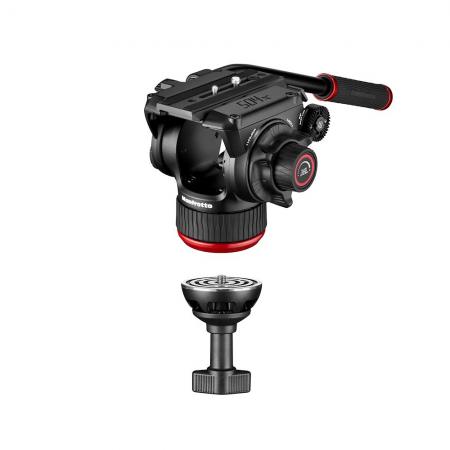

The head attaches to the tripod via a dedicated 75mm half ball.

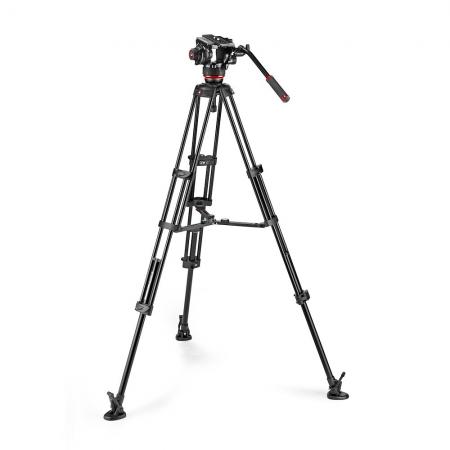

The MVTTWINMA aluminium twin leg with middle spreader video tripod is a professional-quality tripod with a two-stage, rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.

The tripod has mid-level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the usage of the tripod also in combination with the ground spreader Manfrotto 165MV which is sold separately.

 Weight 5.6 kg
Safety Payload UNI/PdR 105:2021 12 kg
Counterbalance System Variable Steps
Counterbalance Weight 2.2, 4.4, 6.5 kg
Maximum Height 169 cm
Min Height 75 cm
Base Diameter 75 mm
Bubble Spirit Level (No.) 1
Center of gravity 55 mm
Carrying Bag Included yes
Center Column no centre column
Closed Length 86 cm
Colour Black
Top Attachment 1/4″ screw, 3/8″ screw attachmenttype
Ball Flat Flat
Powered by (batteries) Lithium
Easy Link Yes (with antirotation)
Front Tilt -70° / +90° tiltrange
Head Type Video/Fluid Head
Leg Type Twin
Leg Lock Type Flip Lock
Material Aluminium
Maximum Working Temperature 60 °C
Minimum Working Temperature -30 °C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360 °
Plate Type 504PLONGR-1
Quick Release Yes
Spreader mid level - variable arm length
Tilt Drag continuously adjustable from 0 to max level
Accessory Compatibility 114MV; 181B; 165MV; MVAPANBARM; MVAPANBA
