MANFROTTO 509HD pro video w/100mm half ball (TM-H509HD)

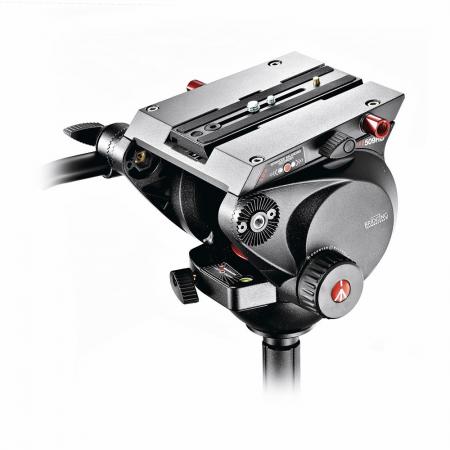

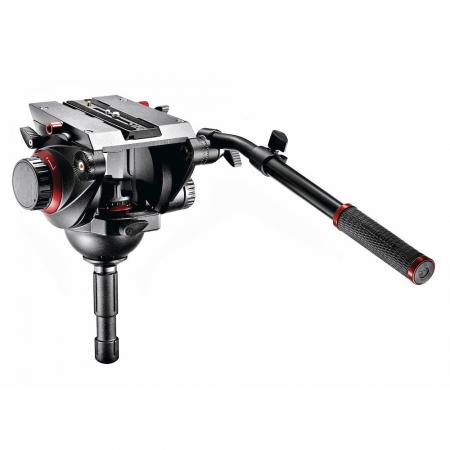

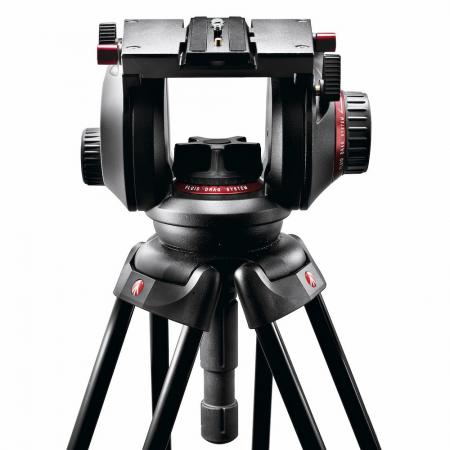

A perfect balance of design and performance, the Manfrotto 509 fluid video head with incorporated 100mm half ball puts you in control. Stability, strength and speed to suit any condition.The head is made from durable aluminium.

When you’re setting up a shot, the Manfrotto head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement which allows smooth shooting, and a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. The head has a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.Easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted.

The 509 features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast. Levelling is simple thanks to the 100mm diameter half ball and backlit levelling bubble.

Weight 3.9 kg
Safety Payload UNI/PdR 105:2021 13.5 kg
Counterbalance Weight 8.5 kg
Material Aluminum
Bubble Spirit Level (No.) 1
Center of gravity 125 mm
Powered by (batteries) Lithium
Certifications WEEE; RoHS
Top Attachment 1/4″ screw, 3/8″ screw attachmenttype
Color Black
Easy Link Yes
Front Tilt -60° / +90° tiltrange
Ball Flat 100 Ball
Head Type Video/Fluid Head
Maximum Working Temperature 60 °C
Minimum Working Temperature -20 °C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360 °
Plate Type 509PLONG
Quick Release Yes
Tilt Drag continuously adjustable from 0 to max level
Working Height 18 cm
Accessory Compatibility 502HLV; 509HLV
