502 Fluid Video Head Flat Base&055 Video Carbon Fibre Tripod
Smooth PAN and TILT Movements with variable Fluid Drag System
Stable and Adjustable Setup with 4-section CF tripod and levelling colu
Effortless and Solid Setups using Quick Power Lock System
Enhanced Flexibility with Easy Link attachments for accessories
Highest safety standards ensured by UNI/PdR 105:2021 compliance

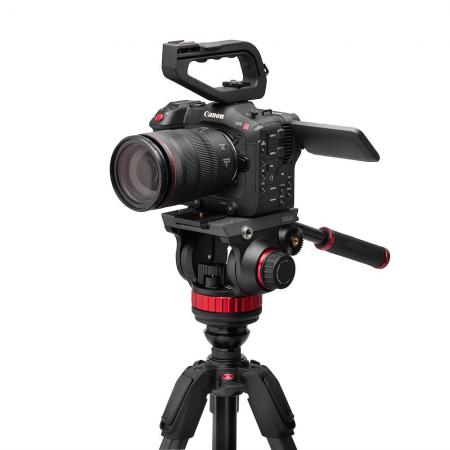

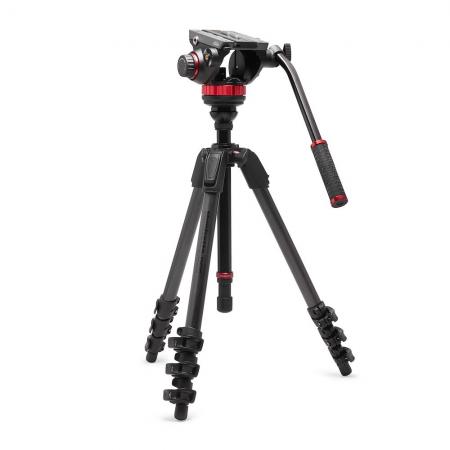

The MVK502055CXPROV is comprehensive a video system that includes the MVH502AH fluid video head and a dedicated 055 Video carbon fibre tripod.

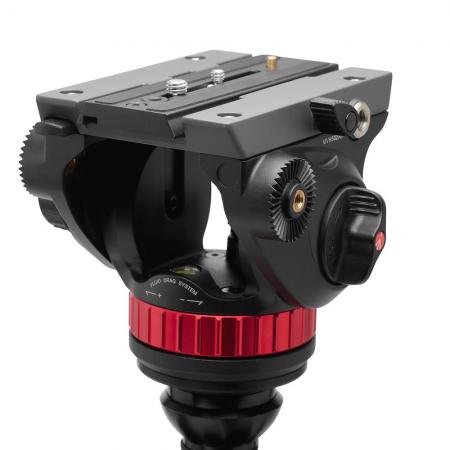

Enjoy greater versatility with the 502 fluid video head's flat base (Ø75mm), ideal for use with other video accessories like a slider. Benefit from a fixed counterbalance system of 4 kg at 55mm C.O.G., while supporting up to 10 kg of equipment. Experience smooth movements with the variable continuous Fluid Drag System on both pan and tilt movements, and conveniently fit external monitors or accessories with the 3/8'' Easy Link attachment points.
Benefit from the lightweight and stability of the dedicated single leg, 4-section carbon fibre 055 video tripod with levelling column, designed to minimize weight while maintaining top-tier stability and rigidity. Experience quick and easy setup thanks to the Quick Power Lock (QPL) levers specially designed for comfortable, single-handed operation, allowing you to open all leg sections in a single movement. Additionally, ensure maximum rigidity and stability for your tripod with the powerful locks on each leg section. Solidly set each leg independently with intuitive and ergonomic leg angle selectors. Enhance your setup with an Easy Link connector equipped with anti-rotation for accessories.
The system can support up to 10 kg.
Weight 4.2 kg
Counterbalance System Fixed
Counterbalance Weight 4 kg
Maximum Height 179 cm
Min Height 54 cm
Base Diameter 78 mm
Bubble Spirit Level (No.) 1
Carrying Bag Included No
Center Column rapid
Closed Length 70 cm
Color Black Matt
Top Attachment 1/4″ screw, 3/8″ screw attachmenttype
Ball Flat Flat
Safety Payload Weight 10 kg
Easy Link Yes
Front Tilt -80° / +90° tiltrange
Head Type Video/Fluid Head
Leg Type Single
Leg Angles 25°,46°,66°,88°
Leg Lock Type Flip Lock
Leg Sections 4
Legs Tube Diameter 29.2, 24.8, 20.4, 16 mm
Material Aluminum, Carbon Fiber, Plastic
Maximum Height (with Center Column Down) 157 cm
Maximum Working Temperature 60 °C
Minimum Working Temperature -20 °C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360° °
Plate Type 504PLONG
Quick Release Yes
Tilt Drag continuously adjustable from 0 to max level
Upper Disc Diameter 78 mm
Accessory Compatibility MVAPANBARM; MVAPANBARL; 502HLV; 509HLV
