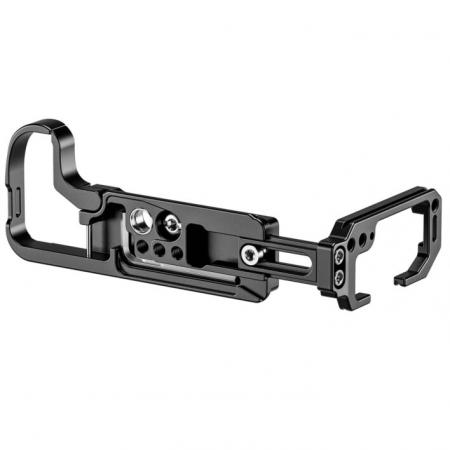

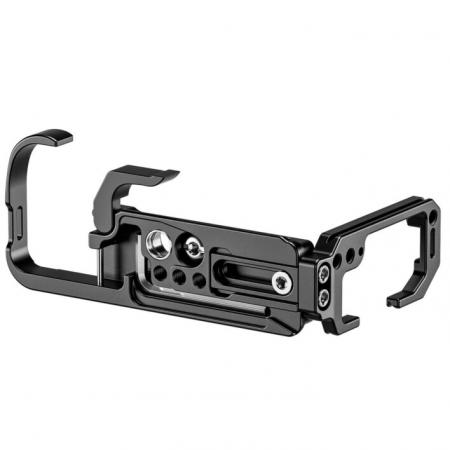

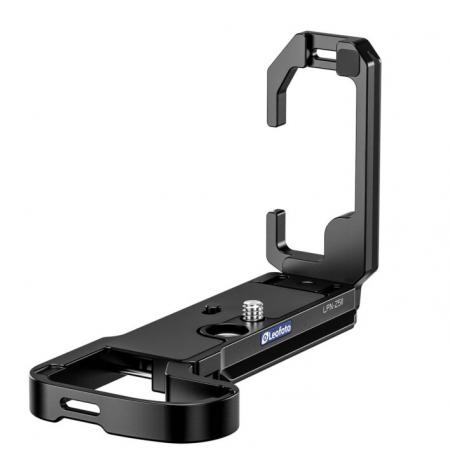

LEOFOTO LPN-Z5II L bracket (TL-LPN-Z5II)

The Leofoto LPN-Z5II is a custom-designed Arca-Swiss compatible L-bracket engineered exclusively for the Nikon Z5II mirrorless camera and also works with the Z6II and Z7II cameras. Crafted from a single solid block of CNC-machined 6061-T6 aluminum, this bracket offers a flawless fit that matches the Z5II body contour for maximum stability and zero play. Its form-fitting design ensures the camera remains secure, while providing seamless compatibility with all 1.5” standard Arca-style quick-release clamps.

The bracket features a dual dovetail design, allowing photographers to mount their camera in either landscape or portrait orientation without the need to reframe their composition. The vertical arm is precisely offset to maintain full access to the camera’s side ports and articulating LCD, while the base is equipped with multiple mounting options to accommodate accessories like straps, QD mounts, and tripod plates.

For added convenience, the LPN-Z5II includes a magnetic slot key integrated into the base—always within reach for fast adjustments in the field. The vertical arm features an open design with a hinged battery door cutout, ensuring uninterrupted battery access without removing the bracket.
Key Features:

    Perfectly Contoured Fit for Nikon Z5II
    Precision-machined from aerospace-grade aluminum to match the body shape of the Nikon Z5II, ensuring a snug fit and eliminating movement or twisting during use.

    Dual Dovetail Arca-Swiss Mounting Surfaces
    Arca-compatible on both the base and vertical arms for quick transitions between horizontal and vertical shooting.

    Full Port and Battery Access
    Thoughtful open design and hinged vertical arm maintain full access to memory card slots, accessory ports, LCD articulation, and battery compartment.

    Accessory Ready
    Includes a 1/4″-20 threaded hole, QD socket, strap slot, and magnetic tool storage for fast field adjustment.

    Built-In Magnetic Tool Storage
    A dedicated magnetic slot key is integrated into the base—always on hand for tightening the plate without rummaging for a tool.

    Lightweight and Durable
    Weighs just 123g while maintaining exceptional strength and rigidity.

Model     LPN-Z5II
Material     6061-T6 Aircraft-Grade Aluminum
Mounting     Arca-Swiss Standard (Base & Side)
Dimensions     142mm (L) × 63mm (W) × 87mm (H)
Weight     123g
Screw Thread     ¼”-20 captive-style mounting screw
Additional Mounts     QD socket, 1/4″ accessory thread, strap slot
Tool     Magnetic slot key (included)
