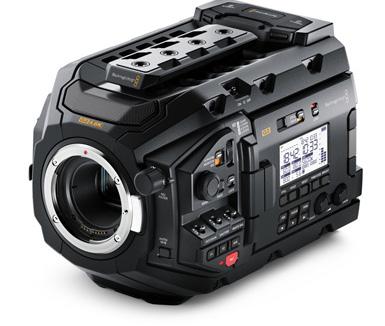

BLACKMAGIC Ursa Mini pro 4.6K G2 camera (b-CINEURSAMUPRO46KG2)
You get a Super 35mm 4.6K sensor with 15 stops of dynamic range, built in optical ND filters, interchangeable EF lens mount that can be swapped for optional PL, B4 or F mounts, Blackmagic RAW and ProRes recording to dual CFast or dual SD cards, and an innovative USB-C expansion port for recording directly to external disks. In addition, URSA Mini Pro 4.6K G2 features a massive set of external broadcast style controls, backlit status display, foldout touchscreen monitor and more!
Camera FeaturesEffective Sensor Size25.34mm x 14.25mm (Super35) Lens MountEF mount included. Interchangeable with optional PL, B4 and F lens mounts. Lens ControlElectronic control via EF mount pins or 12pin broadcast connector for compatible lenses Dynamic Range15 Stops. Shooting Resolutions4608 x 2592, 4608 x 1920 (4.6K 2.40:1) Frame RatesMaximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. High Speed Frame RatesBlackmagic RAW 8:1 4.6K Full - Up to 120 fps ProRes 422 HQ 4.6K Full - Up to 80 fps Built in ND FiltersFour position ND filter wheel with clear, 2-stop, 4-stop and 6-stop ND filters. FocusFocus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus. Iris ControlIris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. Screen Dimensions4 inch Screen TypeLCD capacitive touchscreen. Metadata SupportAutomatically populated lens data from electronic EF, B4 and i/Technology compatible PL lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. ControlsTouchscreen menus on 4 inch screen. Push buttons for other controls. 2 assignable shortcut keys. Timecode ClockHighly accurate timecode clock. Less than 1 frame drift every 8 hours.
ConnectionsTotal Video Inputs1 x SDI Total Video Outputs1 x SDI, 1 x SDI Monitoring. SDI Rates1.5G, 3G, 6G, 12G. Analog Audio Inputs2 x XLR analog switchable between mic, line and AES audio. Phantom power support. Analog Audio Outputs1 x 3.5mm headphone jack, supports iPhone microphone for talkback. Reference InputsTri-Sync/Black Burst/Timecode. Remote Control2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses. Computer InterfaceUSB Type-C 3.1 Gen 1 for external drive recording and software updates. AudioMicrophoneIntegrated stereo microphone. Built in Speaker1 x mono speaker. StandardsSD Video StandardsNone HD Video Standards1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI ComplianceSMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1 SDI Audio Sampling48 kHz and 24 bit MediaMedia2 x CFast 2.0 card slots, 2 x SD UHS-II card slots, 1 x USB-C 3.1 Gen 1 expansion port for external media for Blackmagic RAW and ProRes recording. Please click here for a summary of compatible media. Media FormatCan format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. Supported CodecsCodecsBlackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q5, Apple ProRes XQ QuickTime, Apple ProRes 444 QuickTime, Apple ProRes 422 HQ QuickTime, Apple ProRes 422 QuickTime, Apple ProRes 422 HQ QuickTime, Apple ProRes 422 LT QuickTime, Apple ProRes 422 Proxy QuickTime. Recording FormatsBlackmagic RAW Q0, Q5, 3:1, 5:1, 8:1 and 12:1 at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range. ProRes at 4608 x 2592, 4608 x 1920, 4096 x 2304, 4096 x 2160, 3840 x 2160, 3072 x 2560, 2048 x 1152, 2048 x 1080 and 1920 x 1080 with film, extended video or video dynamic range.
Power RequirementsPower Supply1 x External 12V power supply. 12 pin Molex connector for rear battery plate. External Power Input1 x 4 pin XLR port for external power or battery use. 1 x 12 pin Molex connector on rear battery plate. Custom V-mount battery plate with D-tap +12V regulated output from camera. PowerRear camera mount compatible with industry standard V-mount or gold mount battery plates.
No accessories for this product. |
    |
||||||
