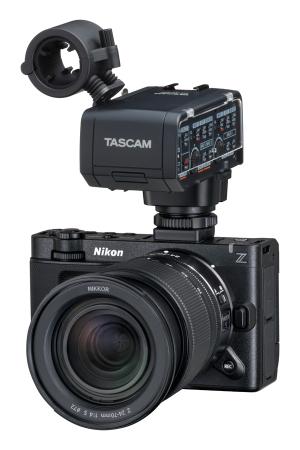

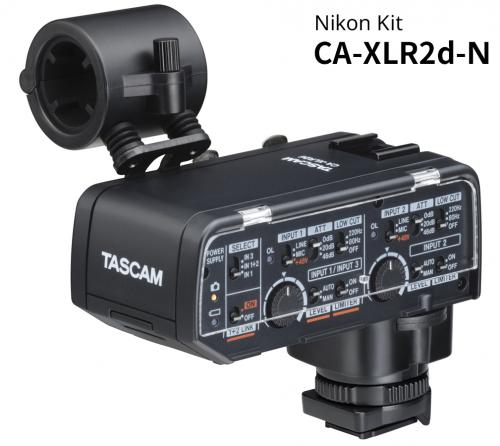

TASCAM XLR2d Nikon kit microphone adapter (ART-CAXLR2n)

Select the Best Microphone According to the Application

Choose the appropriate microphone or input that matches your application. From a single shotgun mic for interviews or dialog, to dual dynamic or condenser mics for stereo imaging, or the entire audio mix fed from the master mixer using the line level capability, CA-XLR2d supports a wide variety of shooting applications.

Equipped With a High-Performance AD Converter, Direct Transmission of Digital Audio to the Camera

Because of TASCAM know how and premium AD converters, the CA-XLR2d is all about clean, noise-free, professional audio. It enables high-quality audio and smart voice recording utilizing various specialized brands of audio equipment. By transmitting digital audio directly to the camera via an accessory shoe that supports digital transmission, there is no deterioration in sound quality, but it also frees you from the work of synchronizing images and sound in post production. In addition, the CA-XLR2d is driven by the power supply from the camera, so if you connect it to a compatible camera, you can have compact operation without the need for a dedicated power supply.

High-Performance HDDA Mic Preamplifier Achieves High Sound Quality, Low Noise, and Wide Dynamic Range

CA-XLR2d is equipped with a high-performance microphone preamplifier that can process anything from room tone to explosions and support a wide range of sets and environments. Each input supports microphone / line level switching and + 48V phantom power supply. CA-XLR2d allows input of dynamic microphones, condenser microphones and line-level audio signals from a mixer.

Designed For a High Degree of Freedom

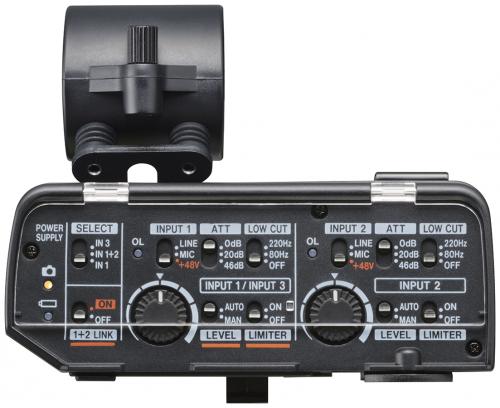

A cold shoe on the top panel expands setting flexibility. The shock mount mechanism is vibration resistant, noise-friendly and allows connection of various microphones. Two XLR/TRS input terminals and one 1/8-inch stereo mini microphone input terminals supports multiple shooting scenarios. CA-XLR2d has the flexibility that adapts to the gear necessary for the job.

Spec Description
Sampling Frequency     48k / 96k Hz
Quantization Bit Rate     16 / 24 bit
* Fs & Bitrate are synchronized with the settings of the connected camera
Number of channels     2 channels
MIC inputs (Balanced)
INPUT 1/2 Jacks
Connectors     XLR-3-31 equivalent (1:GND, 2:HOT, 3:COLD)
6.3mm(1/4") standard TRS jacks Input (Tip:HOT, Ring:COLD, Sleeve:GND)
* Phantom power supported by XLR only
MIC IN     input switch set to "MIC"
Input Impedance     2kΩ or higher
Maximum Input Level     +6dBu (ATT setting "46dB") *1
Minimum input level     -60dBu (ATT setting "0dB") *1
Gain range     66dB
LINE IN     input switch set to "LINE"
Input Impedance     10kΩ or higher
Maximum Input Level     +24dBu *1
Rated input level     +4dBu *1
Gain range     66dB
MIC inputs (Unbalanced)
INPUT 3 Jack
Connector     3.5mm(1/8") Stereo mini jack
* Support plug-in power
Input Impedance     2kΩ or higher
Maximum Input Level     +6dBV (ATT setting "46dB") *2
Minimum input level     -60dBV (ATT setting "0dB") *2
Gain range     66dB
Plug-in power     2.7V
PHONE / CAMERA output (Unbalanced)
OUTPUT Jack
Connector     3.5mm(1/8") Stereo mini jack
Output level     0.29Vrms (Fixed,OUTPUT setting "CAMERA")
0.5Vrms (Output volume setting at maximum、OUTPUT "HEADPHONE")
Headphone working impedance     16 to 250Ω
Power     2 AA batteries (alkaline, NiMH or lithium-ion)
Supplied through accessory shoe of compatible camera
Power consumption     2.0W (maximum)
Dimensions     88.2(W) × 119.1(H) × 110.0(D)mm (not including protrusions)
Weight
CA-XLR2d-C     341g (mic holder attached, battery holder not attached)
CA-XLR2d-F     331g (mic holder attached, battery holder not attached)
CA-XLR2d-N     341g (mic holder attached, battery holder not attached)
CA-XLR2d-AN     357g (not including batteries, mic holder attached, battery holder attached)
Operating temperature     0 to 40°C (32 to 104°F)
Included
CA-XLR2d-C     Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-C accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter
CA-XLR2d-F     Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-F accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter
CA-XLR2d-N     Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-N accessory shoe mount adapter (attached to unit), CA-AK1-AN cold shoe mount adapter
CA-XLR2d-AN     Mic holder (attached to unit, Battery holder, 3.5mm(1/8") stereo mini cable, TASCAM ID registration guide, Quick Guide (including warranty), CA-AK1-AN cold shoe mount adapter(attached to unit)
