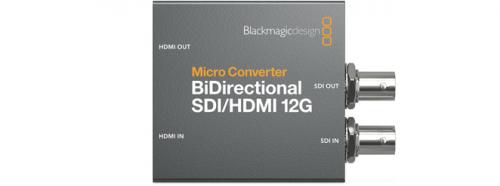

BLACKMAGIC Micro conv BiDirect SDI/HDMI 12G (b-CONVBDC/SDI/HDMI12)
Now you can convert in both directions simultaneously! Convert SDI to HDMI and HDMI to SDI in any combination of SD, HD or Ultra HD formats all at the same time! Micro Converter BiDirectional SDI/HDMI 12G lets you simultaneously convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60! Each conversion direction can be a different SD, HD or Ultra HD video standard, it’s like getting two converters in one! With multi-rate 12G-SDI input and output connections, Micro Converter BiDirectional SDI/HDMI 12G is compatible with virtually all professional broadcast equipment, including level A and B devices. It even automatically detects all SD, HD and Ultra HD formats! Micro Converter BiDirectional SDI/HDMI 12G has all you need to convert HDMI consumer gear to SDI. Use the input to convert HDMI computers or consumer cameras into 12G-SDI, while using the output for monitoring with big screen televisions or projectors! The all metal durable design is perfect for live production and broadcast. Plus it’s small enough to be hidden and used anywhere. It can be powered from any USB-C socket, or with the included power supply and international socket adapters!
ConnectionsSDI Video Inputs1 SDI Video OutputsAutomatically matches the HDMI video input. HDMI 2.0 Video Inputs1 x type A. HDMI 2.0 Video Outputs1 x type A. SDI Rates270Mb, 1.5G, 3G, 6G, 12G. Multi Rate SupportAuto detection of SD, HD, 2K, Ultra HD and 4K. Updates, Configurations and PowerUSB Type‑C. ReclockingYes StandardsSD Video Standards525i59.94 NTSC, 625i50 PAL HD Video Standards720p50, 720p59.94, 720p60 2K Video Standards2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 SDI Video RatesSDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. SDI Color SpaceYUV SDI Auto SwitchingAutomatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output. HDMI Video Standards525i59.94 NTSC, 625i50 PAL HDMI Color Precision4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color SpaceYUV Copy ProtectionHDMI input is unable to capture from copy protected HDMI sources. Camera ControlBidirectional signal conversion supports Blackmagic Camera Control and Tally. Settings ControlVia MacOS™ and Windows™ software utility connected by USB. Operating SystemsMac 10.15 Catalina, Windows 10, 64-bit. SoftwareInternal software upgrade via USB. Power RequirementsPower Supply+5V universal power supply included with international socket adapters for most countries. Power Consumption5W max. Operational Voltage Range4.4V to 5.25V DC Environmental SpecificationsOperating Temperature0° to 40° C (32° to 104° F) Storage Temperature-20° to 60° C (-4° to 140° F) Relative Humidity0% to 90% non-condensing Physical Specifications
