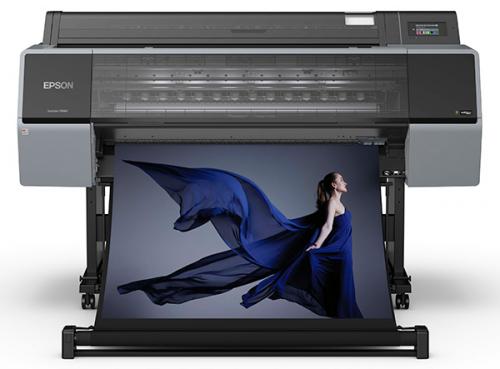

EPSON P9560 Surecolor printer (PEIP-9560)
|
$13,775.85(AUD inc. Tax)
|
|
|
It supports a wide range of roll and sheet based media and features an all new PrecisionCore MicroTFP print head with Variable Sized Droplet Technology™ for output with superior resolution, gradations and colour density. It uses the new UltraChrome
® Pro12 all-pigment aqueous ink for quality colour and premium B&W output that is consistent, predictable and durable. The SC-P9560 cartridges feature an extra-large capacity for extended operation with a low cost per print due to the new PrecisionCore printhead and reduced running costs. The printer also includes new sub tanks so you will not run out of ink during a print job again4. The printer ships with a fabric retractable output bin for cut sheets as well as an optional Auto-Take-Up system for continuous roll to roll production. An optional HDD is available for efficient workgroup operation with print server and reprint functionality along with an optional a high-speed Postscript® module which includes a HDD meaning users can directly print postscript files (PDF, EPS) and raster files (JPEG, TIFF) without the need of a PC.
- Our most advanced wide-format printer yet – tackles photography, fine art, proofing and graphic design printing with unmatched image quality and performance
- Powered by PrecisionCore – new 2.6" printhead performs at speeds up to 4 times faster than our previous generations1
- Extreme colour gamut – all-new UltraChrome PRO12 Ink with 3 levels of Black and Violet producing astounding colour with up to 99 percent coverage of the PANTONE® FORMULA GUIDE solid-coated standard2
- Realtime Photo and Matte Black ink switching – dedicated nozzles for both black ink types
- Industry-leading print permanence – creates prints that last up to 200 years colour and 400 years black-and-white3
- New customizable touchscreen –first-in-class to feature a customizable, 4.3" colour touchscreen for easy navigation
- Reliable printer design – redesigned industrial-level print engine for lasting durability and an interior LED light for convenient operation
- Increased black density with Black Enhance Overcoat – improved Dmax for a wider contrast ratio with enhanced clarity and increased sharpness on glossy papers
- Optional SpectroProofer® –automates colour calibration and proof verification tasks for proofing applications with optional third-party RIP and workflow software
- Easy workflow integration – compatible with a range of third-party RIP and workflow software
| SIZE |
| Max Print Width |
44 inch (1,118mm) wide |
| Max Sheet Size |
Super B0 |
| PRINT TECHNOLOGY |
| Print Head |
PrecisionCore™ Micro TFP head |
| Print Modes |
Uni & Bi-directional |
| Print Technology |
VSDT, auto head alignment, auto/manual nozzle checking, auto cleaning, ink repelling coating |
| Nozzle Configuration |
800 per colour |
| Channels |
12 |
| Max Resolution |
2400 x 1200dpi |
| Min Droplet Size |
3.5pl |
| INK SYSTEM |
| Family |
 Ultrachrome® Pro12 |
| Type |
Aqueous all-pigment |
| Colours |
 12 |
| Cartridge Size |
350/700ml |
| PERFORMANCE (A1 sheet) |
| Draft |
600 x 600dpi |
1.6 minutes |
| Normal |
600 x 600dpi |
2.03 minute |
| Highest Quality |
2400 x 1200dpi |
6.12 minutes |
 Figures represent print times on Premium Glossy Photo Paper 170gsm. Print speeds are engine only with total throughput time dependent on workflow configuration, paper type, software, file format / size, print resolution, ink coverage, networking, and other factors. |
| MEDIA SUPPORT |
| Format |
Roll and cut sheet |
| Size |
Roll: Width 254 (min) to 1118mm (max) Length 279 to 18,000mm, Diameter 150mm (max) Max weight 17kg Cut sheets: Width 210 (min) to 1118mm (max) Length 279 (min) to 1580mm (max) |
| Thickness |
0.08-0.5mm roll / 0.08-1.5mm sheet |
| Min Margins |
0mm top, left, right & bottom roll / 3mm top, 0mm left & right, 14mm bottom sheet |
| Loading |
Top manual sheet and top roll (spindle style with dual tension settings) |
| Handling |
Heavy-duty rotary auto-cutter & Media Barcode System |
| Manual Double Sided Printing |
Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
| Output |
Retractable paper basket (able to hold one Super B0 print with a maximum length of approx. 1,580mm) and optional Auto Take-Up unit |
| OPERATION |
| Control Panel |
4.3" Colour Touchscreen LCD |
| Interface |
High Speed USB 3.0
Ethernet 100Base-TX / 1000Base-T |
| Included Software |
Printer Driver, Epson Manual, Epson LFP Remote Panel 2, EpsonNet Config, Epson Software Updater, Epson Network Utilities (On CD) |
| Additional Software |
LFP HDD Utilities*, Epson Print Layout, LFP Accounting Tool*, Epson Color Calibration Utility, CopyFactory* (Download here) *Windows only |
| OS Compatibility |
Mac OS X10.6.8 or later, Windows XP/Vista/7/8/8.1 (32/64bit) or later |
| Software Compatibility |
Compatible with a wide range of design, production, workflow management and RIP software |
| Memory |
2GB |
| Language |
ESC/P Raster |
| ENVIRONMENTAL |
| Operational Temp |
10° to 35° C (15-25° C recommended) |
| Operational Humidity |
20 to 80% with no condensation (40-60% recommended without condensation) |
| Power Supply |
100 - 240 V, 50 Hz - 60 Hz AC, 5A |
| Power Consumption |
110W Operating / 3.4W Sleep (1000 Base-T) |
| Operating Noise |
TBA |
| PHYSICAL | |
| Printer (WxDxH) |
1909 x 667 x 1218mm, 155Kg (Basket closed, no ink)
1909 x 2211 x 1218mm, 155Kg (Basket open, no ink) |
| Recommended Operational Space |
2.5 x 2.8 x 1.5m (WxDxH) |
| Packaging (WxDxH) |
Printer, Stand & Starter Ink: 2028 x 805 x 1062mm, 208Kg
(Important: Box must be shipped straight & level) |
| WHAT'S IN THE BOX |
| Printer, Stand, Power Cord, Set of 110ml Inks (note 30-60% may be used during initialisation), 1 x Spindle, 2 x Maintenance Tank, Retractable output basket, Installation / Safety manual, Utility software & User manual (CD) |
