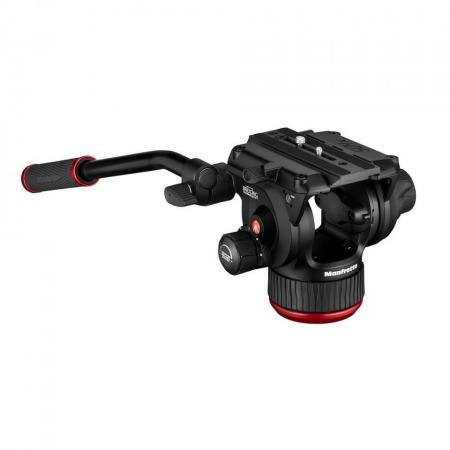

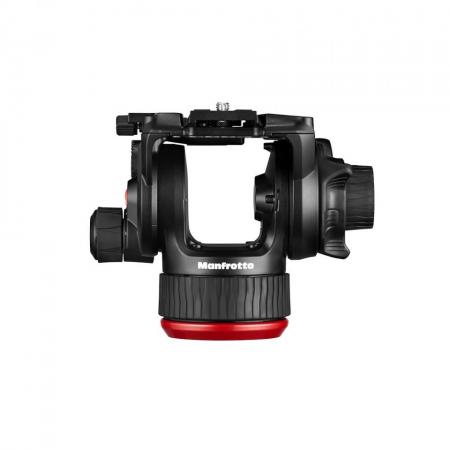

MANFROTTO MVH504XAH 504 video fluid head New (TM-VH504XAH)

$619.30(AUD inc. Tax)
In stock

  • Variable fluid Drag System on PAN & TILT, performed by new fluid
  • 4 steps counterbalance system up to 6,5 kg
  • Flat base for shooting on sliders, jibs or other accessories
  • Sliding plate side lock attachment
  • Easy link connectors with Manfrotto anti rotation technology

504X fluid video head is the evolution of the hugely successful 504HD.
It's a more compact and lighter version that finally comes with flat base (base diameter 75 mm), developed to meet the needs of the most demanding videographers.

The head is made from a brand-new catching aluminium design, and has a maximum payload of 12kg.

Utilising Manfrotto’s new fluid technology, the camera head allows you to capture judder-free smooth motion pans and tilts. It's never been easier for the operator to create premium-quality video capture, thanks to a 4-step counterbalance system which can carry payloads of up to 6.5 kg at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical.

Two easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.

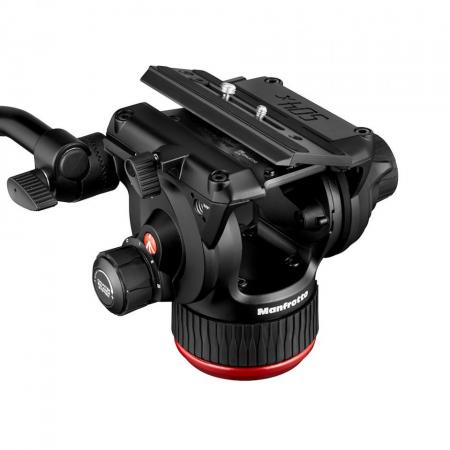

The sliding-plate side-lock attachment enables quicker set up of the camera, keeping video equipment stable and balanced. Head leveling is simple thanks to the clever backlit levelling bubble.


Weight 2 kg

Top Attachment 1/4″ screw, 3/8″ screw

Ball Flat Flat

Safety Payload Weight 12 kg

Counterbalance System Variable Steps

Powered by (batteries) Lithium

Base Diameter 75 mm

Counterbalance Weight 2.2, 4.4, 6.5 kg

Bubble Spirit Level (No.) 1

Center of gravity 55 mm

Certifications WEEE; RoHS

Colour Black

Front Tilt -70° / +90°

Head Type  Video/Fluid Head

Material Aluminium

Maximum Working Temperature 60 °C

Minimum Working Temperature -30 °C

Pan Bar Included Yes

Pan Drag continuously adjustable from 0 to max level

Panoramic Rotation 360 °

Plate Type 504PLONGR-1

Quick Release Yes

Tilt Drag continuously adjustable from 0 to max level

Working Height 14.9 cm

Accessory Compatibility MVAPANBARM; MVAPANBARL
