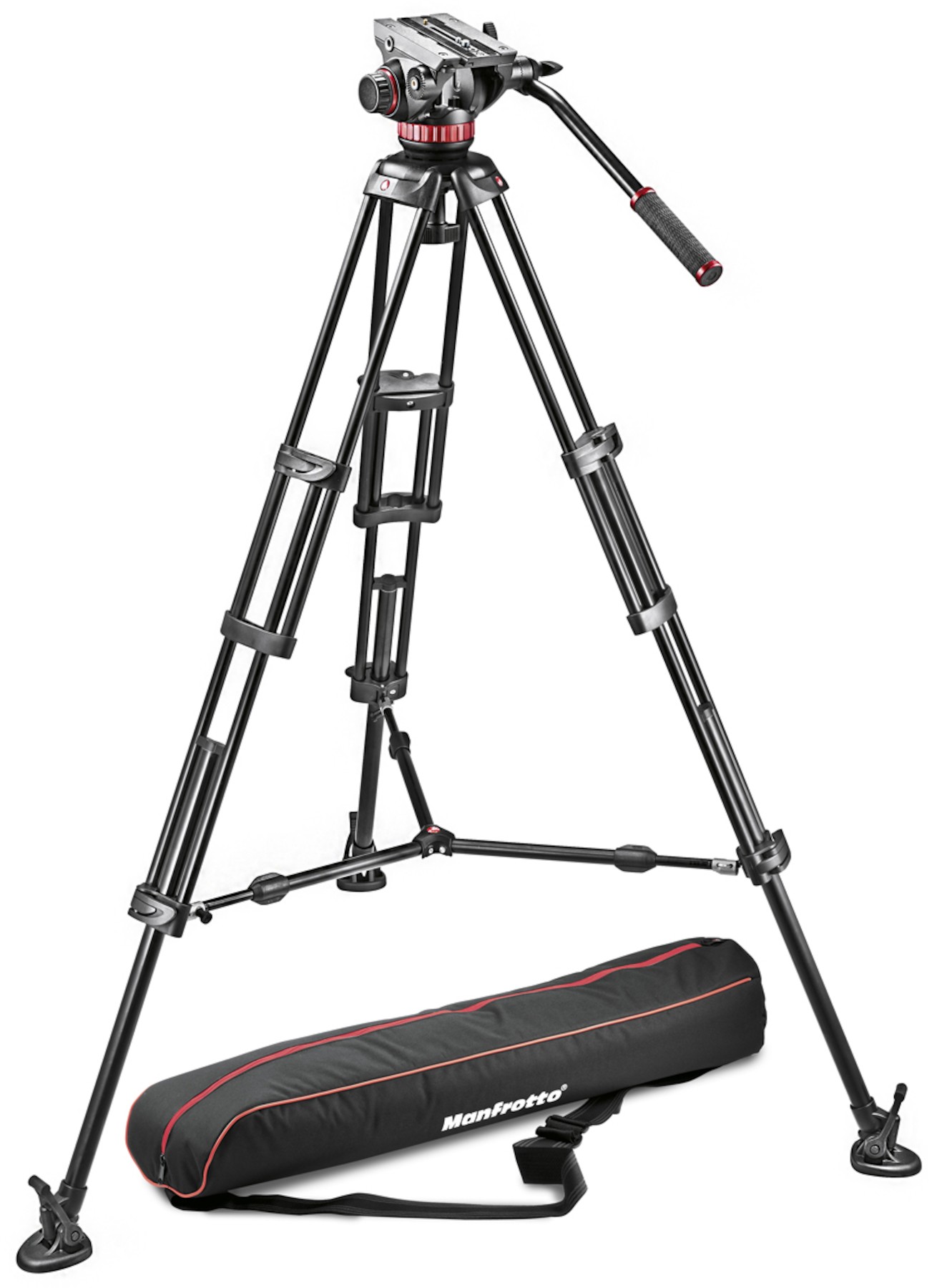

MANFROTTO 502A & 546BK & Bag set tripod (TM-VK502A-546BK1)

27%
off
$1,491.67 $1,089.00(AUD inc. Tax)
Qty
NOW IN STOCK

DATA SHEET:INSTRUCTIONS:MSDS etc pdf

Have total freedom to capture the perfect shot. The ingenious Professional Fluid Video System, Aluminium with Sliding Plate makes your job even easier, thanks to its long list of intuitive design features and high-functioning capabilities. This clever tripod with fluid video head gives you professional quality pan and tilt, extra easy set up, and the freedom to collapse and tidy away into a neat, compact package when you’re done.

This clever piece of kit consists of a fluid video head, and a pro video tripod with a mid-level spreader, giving you everything you need in one box. The mount features a 75mm half ball, so you’ll be able to get into the perfect position in a jiffy. Versatile and smart, this tripod with fluid video head can even support wider HDSLR and interchangeable lens cameras. The fluid drag system counterbalances loads up to 4kg, but it’s capable of holding normal loads up to 7kg, so you’ll never have to worry about wobbling from one angle to the next, whatever equipment you’re using.

Linking your photo head to accessories like external monitors, lights and microphones is a doddle too. Two easy link connectors give you the flexibility to attach whatever the job demands. And when the mount is up, it’s totally secure. It can support up to 20kg, making it super strong, all down to its die cast aluminium crown, and rigid two-stage design. The legs lock firmly in place at just a flick of a handle, spiked rubber feet and rubber overshoes keep a steady grip even on tricky terrain, and it’s versatile enough to pair with a number of different dollies.
Weight 5500 g
Collection/Series 502
Material Aluminium
Safety Payload Weight 7 kg
Min Height 41 cm
Maximum Height 164.5 cm
Head Type Video/Fluid Head
Leg Sections 3
Legs Tube Diameter 16, 25 mm
Quick Release Yes
Counterbalanced Weight 4 kg
Center of gravity 55 mm
Spreader mid level - variable arm length with 'click stop' set positions
Closed Length 83 cm
Ball Flat 75 Ball
Accessory Compatibility 502HLV; 509HLV; 114MV; 181B; 165MV;
Top Attachment 1/4″ screw, 3/8″ screw
Bubble Spirit Level (No.) 1
Carrying Bag Included 110125
Center Column no centre column
Certifications None
Color Black
Easy Link Yes
Front Tilt -80° / +90°
Leg Type Twin
Leg Angles from 30° to 66°
Leg Lock Type Flip Lock
Maximum Working Temperature 60 C
Minimum Working Temperature -20 C
Pan Bar Included Yes
Pan Drag continuously adjustable from 0 to max level
Panoramic Rotation 360
Plate Type 504PLONG
Tilt Drag continuously adjustable from 0 to max level
