PHOTTIX -ODIN TTL canon receiver (CW-PH89061)

73% off	~~$246.40~~ $66.00(AUD inc. Tax) Qty NOW IN STOCK

Overview
Specifications
Accessories
Reviews

Purchase further receivers for the Phottix Odin™ TTL Trigger for Canon (Patent Pending) system.

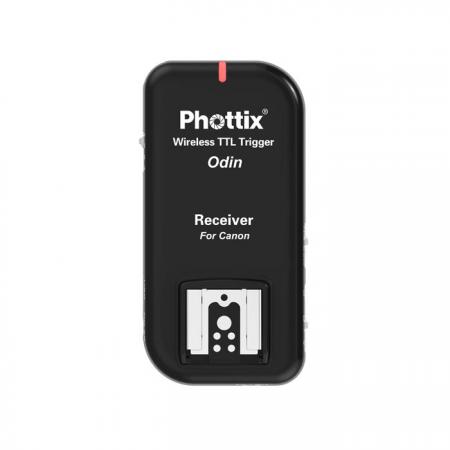

Phottix Odin TTL Flash Trigger Receiver, a receiver for use with the Phottix Odin™ TTL Flash Trigger.

Features

Wireless 2.4GHz. TTL and Manual Flash Triggering
Remote power control of groups in TTL with +/- EV adjustments (3 stops in 1/3 stop increments - 18 different levels.)
Mix TTL and Manual flash – fire some groups in TTL, others as manual.
Remote power control in A:B ratio modes with +/- EV adjustments
High speed sync – shutter speeds up to 1/8000 sec.
Second curtain sync functions
Remote manual mode flash power control
Remote flash head zoom adjustments – auto or manual
Compatible with Phottix Strato 4-in1 and Phottix Strato II Multi 5-in-1 Wireless Triggers.
Upgradeable via built-in USB ports.

What does the Odin™ offer?

The Phottix Odin™ TTL Trigger consists of an on-camera transmitter and control unit (TCU) and receiver units for compatible hot shoe flashes.

The Odin™ offers photographers four wireless channels and three flash control group designations. Flashes can be controlled in TTL or manual mode, or A:B ratio mode with EV +/- adjustments of three stops.

What makes the Phottix Odin™ unique is the ability to designate groups in TTL/Mixed mode. Individual groups, A, B, C, can also be controlled in TTL mode with EV +/- adjustments. Groups can also be set to Manual mode, adjusting power levels remotely, or turned off.

Zooming ahead

Flash head zoom can be set to be dynamically adjusted as photographers adjust their lenses. Flash zoom can also be easily adjusted manually and set statically from 24 to 105 mm. The Phottix Odin system will also trigger compatible non-TTL flashes and studio strobes.

Compatible with the Phottix Strato™ series

The Phottix Odin™ TTL Flash Trigger for Canon is compatible with Phottix Strato 4-in1 and Phottix Strato II Multi 5-in-1 Wireless Triggers. Current Phottix users will have no problem adding the Odin to their current triggering systems. As the world of cameras and flashes is always changing the Phottix Odin system can be upgraded when needed using the built-in USB ports.

What’s in the box?

Odin™ Receiver
2x AA Batteries
PC to 3.5mm cable
3.5mm to 3.5mm cable
6.3mm adapter
Lanyard
Instructions CD
QC certificate

Groups	3 groups – A, B, C
Battery	2 x AA batteries, 5V DC on receiver (external power port)
Voltage	2.4 – 3.2 V
Flash port voltage handling	≤300V
Attachment	¼ tripod lug, cold shoe
Dimensions	90(L) x 45(W) x 40(H) mm (receiver)
Weight	66g (receiver) – without batteries
Channel	4 Channels
Frequency	2.4 GHz
Max sync speed	1/8000 sec
Output	Hot shoe, 3.5 mm port
Input	USB port receiver
Operating temp	-15 ~ 65 C
Operating distance	100m+
Storage temp	-30 ~ 85 C
Signal input	USB port receiver
