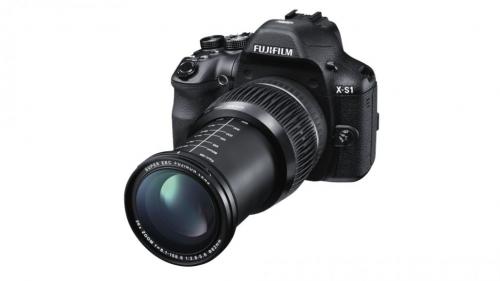

FUJI DISC XS-1 body (u4-FujiXS1)

1.Fujinon Lens for Excellent Shooting

2.Excellent Sensor and Processor Realize Quick Response

3.Advanced Electronic View Finder & Large 3.0-inch Tilt LCD

4.X-S1 Performance

5.Versatile Functions

https://www.fujifilmusa.com/products/digital_cameras/x/fujifilm_x_s1/index.html

Number of effective pixels*1 12.0 million pixels

Image sensor 2/3-inch EXR CMOS with primary color filter

Storage media

Internal memory (approx. 26 MB)

SD / SDHC / SDXC(UHS-I) memory card*2

File format

still image

JPEG (Exif Ver 2.3)*3, RAW (RAF format), RAW + JPEG

(Design rule for Camera File system compliant / DPOF-compatible)

movie

H.264 (MOV) with Stereo sound

Number of recorded pixels L : (4:3) 4000 x 3000 / (3:2) 4000 x 2664 / (16:9) 4000 x 2248 / (1:1) 2992 x 2992

M : (4:3) 2816 x 2112 / (3:2) 2816 x 1864 / (16:9) 2816 x 1584 / (1:1) 2112 x 2112

S : (4:3) 2048 x 1536 / (3:2) 2048 x 1360 / (16:9) 1920 x 1080 / (1:1) 1536 x 1536

<Motion Panorama>

360° Vertical 11520 x 1624 Horizontal 11520 x 1080

180° Vertical 5760 x 1624 Horizontal 5760 x 1080

120° Vertical 3840 x 1624 Horizontal 3840 x 1080

Lens

name

Fujinon 26x optical zoom lens

focal length

f=6.1 - 158.6 mm, equivalent to 24 - 624 mm on a 35 mm camera

full-aperture

F2.8 (Wide) - F5.6 (Telephoto)

constitution

12 groups 17 lenses (4 aspherical molded lenses, 2 ED lenses included)

Digital zoom Intelligent digital zoom approx. 2x (1.4) (up to 52 x when combined with optical zoom)

Aperture F2.8 - F11(Wide)

F5.6 - F11(Telephoto) 1/3EV step (controlled 9-blade aperture diaphragm)

Focus distance

(from lens surface)

Normal

Wide : Approx. 30 cm / 0.9 ft. to infinity

Telephoto : Approx. 2.0 m / 6.5 ft. to infinity

Macro

Wide : Approx. 7 cm - 3.0 m / 2.8 in. - 9.8 ft.

Telephoto : Approx. 2.0 m - 3.5 m / 6.5 ft. - 11.5 ft.

Super Macro

Approx. 1.0 cm - 1.0 m / 0.4 in. - 3.3 ft

Sensitivity Auto(400) / Auto(800) / Auto(1600) / Auto(3200) / Equivalent to ISO 100 / 200 / 250 / 320 / 400 / 500 / 640 / 800 / 1000 / 1250 / 1600 / 2000 / 2500 / 3200 / 4000* / 5000* / 6400* / 12800* (Standard Output Sensitivity)

* ISO4000 / 5000 / 6400 : M mode or lower, ISO12800 : S mode

Exposure control TTL 256-zones metering, Multi / Spot / Average

Exposure mode Programmed AE, Aperture Priority AE, Shutter Priority AE, Manual

Shooting modes

SP

Natural Light & Flash, Natural Light, Portrait, Portrait Enhancer, Dog, Cat, Landscape, Sport, Night, Night (Tripod), Fireworks, Sunset, Snow, Beach, Party, Flower, Text

MODE DIAL

EXR, AUTO, Adv., SP, C3, C2, C1, M, A, S, P

Image stabilizer Lens shift type

Exporsure compensation -2.0EV - +2.0EV 1/3EV step

Shutter speed (Auto mode) 1/4 sec. to 1/4000 sec., (All other modes) 30 sec. to 1/4000 sec.

Continuous shooting

TOP

Super High : approx. 10 fps (Size M, S)

High : approx. 7 fps (Size L, M, S)

Middle : approx. 5 fps (Size L, M, S)

Low : approx. 3 fps (Size L, M, S)

*SD memory card with a class 4 write speed (4 MB/sec.) or better is recommended.

*The frame rate varies depending on the shooting conditions or numbers of frames in continuous shooting.

others

Best Frame capture :

Super High : approx. 10 fps 8 / 16 frames (Size M, S)

High : approx. 7 fps 8 frames (Size L, M, S) / 16 frames (Size M, S)

Middle : approx. 5 fps 8 frames (Size L, M, S) / 16 frames (Size M, S)

Low : approx. 3 fps 8 frames (Size L, M, S) / 16 frames (Size M, S)

Auto bracketing AE Bracketing : ±1/3EV, ±2/3EV, ±1EV

Film Simulation Bracketing : PROVIA / STANDARD, Velvia / VIVID, ASTIA / SOFT

Dynamic Range Bracketing : 100%, 200%, 400%

ISO Sensitivity Bracketing : ±1/3EV, ±2/3EV, ±1EV

Focus

mode

Single AF / Continuous AF (EXR AUTO, Movie),

Manual AF (One-push AF mode included)

type

TTL contrast AF, AF assist illuminator available

AF frame selection

Multi, Area, Tracking

White balance Automatic scene recognition

Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, Custom, Color temperature selection (2,500K - 10,000K)

Self-timer 10 sec. / 2 sec. delay , Auto Release

Flash Auto flash (super intelligent flash)

Effective range : (ISO AUTO (800))

Wide : Approx. 30 cm - 8.0 m / 0.9 ft. - 26.2 ft.

Telephoto : Approx. 2.0 m - 4.0 m / 6.5 ft. - 13.1 ft.

Flash modes Red-eye removal OFF : Auto, Forced Flash, Suppressed Flash, Slow Synchro.

Red-eye removal ON : Red-eye Reduction Auto, Red-eye Reduction & Forced Flash, Suppressed Flash, Red-eye Reduction & Slow Synchro.

Hot shoe Yes

Viewfinder 0.47-inch, approx. 1440,000 dots, TFT color LCD monitor

Approx. 100％ coverage

Diopter adjustment : -5 - +3 m-1(dpt)

LCD monitor 3.0-inch, approx. 460,000 dots, TFT color LCD monitor, approx. 100% coverage

Movie recording 1920 x 1080 pixels / 1280 x 720 pixels / 640 x 480 pixels (30 frames / sec.) with stereo sound

Optical zoom (manual) can be used.

Photography functions EXR mode (EXR Auto / Resolution priority / High ISO & Low noise priority / Dynamic range priority), Face recognition, Face Detection, Auto red-eye removal, Film simulation, Framing guideline, Frame No. memory, Histogram display, Advanced mode (Motion panorama360, Pro focus, Pro low light), High Speed Movie (70 / 120 / 200 frames/sec.), Electronic level, One-touch RAW, Advanced Anti Blur, Focus check, Color space

Playback functions Face Detection, Auto red-eye removal, Multi-frame playback (with micro thumbnail), Protect, Crop, Resize, Slide show, Image rotate, Voice memo, Histogram display, Exposure warning, Photobook assist, Image search, Favorites, Mark for upload, Panorama, Erase selected frames, RAW conversing

Other functions PictBridge, Exif Print, 35 Languages, Time difference, Silent mode, Sutter sound

Terminal

Video output

NTSC / PAL selectable with Monaural sound

Digital interface

USB 2.0 High-Speed

HDMI output

HDMI Mini connector

External microphone

ø3.5 Mini with Stereo sound

Power supply NP-95 Li-ion battery (included)

Dimensions 135(W) x 107(H) x 149(D) mm / 5.3(W) x 4.2(H) x 5.9(D) in.

Weight Approx. 945 g / 33.3 oz. (including battery and memory card)

Approx. 905 g / 31.9 oz. (excluding battery and memory card)

Operating Temperature 0°C - 40°C

Operating Humidity 10% - 80% (no condensation)

Guide to the number of available frames for battery operation approx. 460 frames (*4)

approx. 500 frames (using EVF)

Accessories included Li-ion battery NP-95

Battery charger BC-65N

Shoulder strap

Lens cap and Lens cap cord

Lens hood

USB cable

CD-ROM

Owner's manual

Optional accessories Li-ion battery NP-95

Battery charger BC-65N

Shoe Mount Flash EF-42 / EF-20

Remote release RR-80

*1Number of effective pixels: The number of pixels on the image sensor which receive input light through the optical lens, and which are effectively reflected in the final output data of the still image.

*2Please see the Fujifilm website to check memory card compatibility.

*3Exif 2.3 is a digital camera file format that contains a variety of shooting information for optimal printing.

*4CIPA Standard
