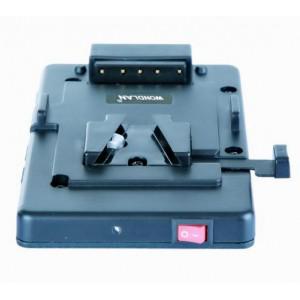

WONDLAN Electric support system Dyna (VR-Wdynaelesup)

$288.90(AUD inc. Tax)
Qty
NOW IN STOCK
Bookmark and Share

Related Items

No related items.

Power-supply system for DSLR cameras!

Supplies electricity to the camera and monitor simultaneously!



Features:

1. Output hyperpressure protection circuit

2. Low static energy consumption

3. Low temperature coefficient

4. High conversion efficiency

5. Automatically locked protection



Technical Parameter:

Test Items (+25℃)

input 14.4V

First Channel Output voltage

12.00±0.25V

Second Channel Output voltage

8.10±0.25V

Third Channel Output voltage

5.00±0.25V

Consumption Current when working

TYP. 40mA

Consumption Current when shutdown

TYP. 270uA

Overcurrent protection value

TYP. 2.4A

First Channel Output protection voltage

TYP. 12.5V

Second Channel Output protection voltage

TYP. 8.6 V

Third Channel Output protection voltage

TYP. 5.5 V

Input minimum voltage

TYP. 13.3 V

Input maximum voltage

TYP. 17.0 V

Overpressure protection control mode

close and lock the output

Overcurrent protection control mode

constant current output

Working ambient temperature

-20℃--45℃



12 Months Warranty
