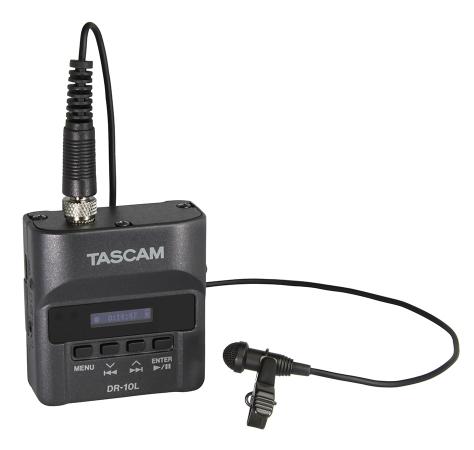

TASCAM DR-10L recorder (ART-DR10L)
20%
off
|
$479.00
$383.20(AUD inc. Tax)
|
|
|
- 44.1kHz/48kHz, 16/24-bit linear PCM mono/poly recording
- Support WAV format (compatible with BWF format)
- Media: microSD/SDHC cards (supports 32GBcapacities)
- Lavalier microphone with microphone clip and windscreen included (cable length: 160cm)
- Sliding record switch and hold function to prevent misoperation during recording
- Dual recording function
- automatic file closing function to prevent the loss of already recorded data
- Low/Mid Low/Mid/High/High plus recording level settings
- Low-cut filter
- Limiter
- Automatic level function
- With a built-in clock function, supports BWF files that can have time information added - convenient for editing and searching
- Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
- Playback function allows recorded data to be checked immediately
- Headphone output
- Easy-to-read organic EL display
- micro USB B port enables easy data exchange with computers
- Records at least 10 hours on a single AAA battery
* using alkaline batteries (EVOLTA)
- Unit settings can be created as a computer text file
- Firmware can be updated using a microSD card
- Belt clip included
- Custom case for storing the unit and accessories included
- RoHS-compliant product
V2.00
- Support for MP3 recording at both 128kbps and 192kbps
- Level meters are now active during both recording and playback
- Independent level settings are now supported within the dual recording function
- POLY file dual recording is now possible
- Overall performance enhanced
Spec description
| Recording media |
microSD card (64MB to 2GB),
microSDHC card (4GB to 32GB) |
| Media discharging |
Push-Push type (Guard cover mounted) |
| Recording format |
|
| V1.00 |
|
| WAV |
44.1k/48k Hz, 16/24-bit mono/poly WAV (BWF format) |
| V2.00 |
|
| WAV |
44.1k/48k Hz, 16/24-bit mono/poly (BWF format) |
| MP3 |
44.1k/48k Hz, 24-bit mono/poly |
| Recording |
128k/192k bps |
| Playback |
32k to 320k bps |
| Analog audio Inputs |
|
| Connector |
1/8" (3.5mm) TRS jack with screw lock |
| Microphone sensitivity |
–42dBV/Pa |
| Maximum input sound pressure |
115dB SPL |
| Maximum input level |
–15dBu (Gain L) |
| Minimum input level |
–55dBu (Gain H+) |
| MIC input gain |
+14dB to +38dB |
| Input impedance |
33kΩ (Mic bias off)/ 2kΩ (Mic bias on) |
| PHONES |
|
| Connector |
1/8" (3.5mm) stereo mini jack (Dual Mono Output) |
| USB |
|
| Connector |
Micro-B type 4pin |
| Protocol |
USB2.0 HIGH SPEED mass storage class |
| Power |
1 AAA battery (Alkaline battery/ Ni-MH battery / Lithium battery),
USB bus power |
| Power consumption |
0.45W |
| Battery operation time |
WAV, 48kHz, 24-bit Rec, without headphones, limiter: OFF , Dual Rec: OFF, JEITA Rec
*All times are approximate. |
| Alkaline battery (EVOLTA) |
10 hours |
| Ni-MH battery (eneloop) |
8 hours |
| lithium battery (Energizer ULTIMATE LITHIUM) |
15.5 hours |
| Battery (RTC) |
Lithium × 1(built in with soldering) |
| Dimensions (W×:H×D) |
2.05" × 2.19" × 0.96" / 52 × 55.6 × 24.4 mm |
| Weight |
2.2 oz. / 63 g (including battery)
1.8 oz. / 51g (excluding battery) |
| Operating temperature |
32˚F to 104˚F / 0˚C to 40˚C |
| Accessories |
Lavalier microphone with microphone clip and windscreen, USB cable (A type-micro B type), Belt clip, Custom case for storing the unit and accessories included, Owner’s manual (including warranty) |
Audio performance
| Frequency response |
20Hz to 22kHz +1/–2dB (IN to PHONES) |
| Distortion |
0.05% (1kHz sine wave, at maximum input level, IN to PHONES) |
| S/N ratio |
88dB or higher (PHONES volume max, MIC GAIN L selected, IN to PHONES) |
