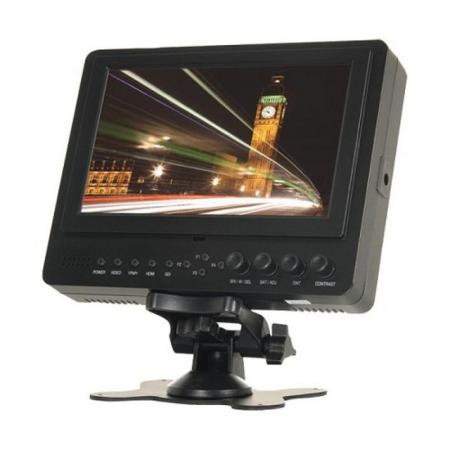

BOWENS -Limelite M7+ HD field monitor (VM-VB1700)

With the same lightweight design, portable size and superb versatility of the standard M7 monitor, the Limelite M7plus+ 7" HD Field Monitor adds the professional image control features required by busy professionals to ensure that they capture that perfect shot every time.

The super-high resolution screen can be used as a large viewfinder mounted on-camera, perfect for HDSLR cameras and HD camcorders, or as a monitor with a camera rig or crane ideal for directors previewing their creative flair.

Multiple signal and power inputs make the M7plus+ one of the most versatile and user-friendly monitors available to photographers and videographers today.

M7plus+ unique features include:

• Red focus peaking for critical focus assessment.
• Zebra exposure monitor warns you when your whites are about to lose detail.
• False Colour Filter helps you keep a check on RGB exposure levels.
• Histogram display shows brightness levels at a glance.
• Contrast ratio increased to 800:1.
• Non-slip rubberised coating adds protection to the monitor casing.

Standard M7/M7plus+ features Include:

• HDMI & YPbPr inputs, to connect with DSLR and Full HD video cameras.
• HDMI output for loop through.
• Battery mounts included as standard for Canon LP-E6, Sony NP-F and V-mount batteries. Optional mounts include Nikon EN-EL15 and Gold Mount.
• 16:9 Aspect Ratio (switchable to 4:3), with 1024x600 native resolution (max 1920x1080).
• Bright, high-contrast display with sunshade cover, to allow images to be clearly viewed, even in brighter sunshine.
• Wide operating voltage range – DC 6.5-24V.
• RGB monochromatic display, 16:9, 4:3 and full screen aspect ratio switch, underscan, overscan, pixel-to-pixel, centre marker, screen marker, HDMI& Video output.

•
  Screen Size :  7" (17cm) TFT LCD (16:9)

  Resolution :  1024x600, up to 1920x1080

  Brightness :  250cd/m2

  Contrast :  700:1

  Viewing Angle :  160ºH / 150ºV

  Input Voltage :  DC 6.5-24V (XLR Connection)

  Input Signal :  HDMI, YPbPr, AV

  Output Signal :  HDMI

  Current :  650mA

  Standby Current :  50mA

  Power Consumption :  7.8W

  Width :  194mm

  Height :  150mm

  Depth :  38.5mm (158.5mm with sunshade)

  Weight :  480g
