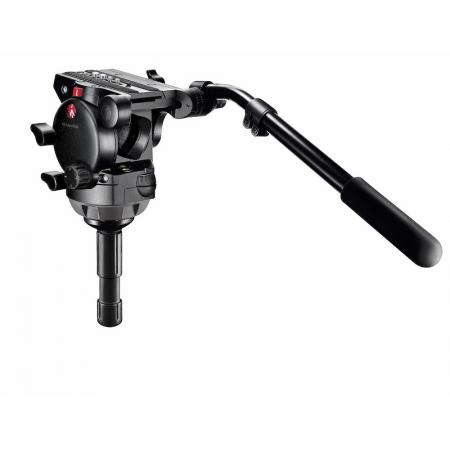

MANFROTTO 526-1 Pro fluid video head (TM-H526-1)

The 526-1 Professional Fluid Video Head directly addresses the heavy-duty, high-end ENG and EFP video market by offering a feature-packed fluid video head that borrows all the combined benefits of our 500 series heads with the ability to support top weight loads over 35 lbs.

The 526-1 features a replaceable and removable pan arm rosette so if any damage occurs to the side castings, only a small part needs to be replaced; large rubber padded knobs for better grip and all the controls (tilt and pan lock, tilt drag) are located on the left side so they can be easily found. The 526-1 offers our most precise fluid drag system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus the additional no-drag setting (number 0) for such occasions as snap-pans/tilts.

Counterbalance is achieved through an adjustable spring for camera weights between 17.5 and 33 lbs. The built-in 4-inch half-ball adapts to a number of our tripods with a 4-inch receiver, allowing the quick leveling of the camera with the aid of the bright leveling bubble. The 526-1 comes with one pan arm and the long 357PLV-1 plate.

 Weight 3.6 kg
Safety Payload UNI/PdR 105:2021 16 kg
Counterbalance System Variable Continuous
Counterbalance Weight 8 → 15 kg
Material Aluminum
Bubble Spirit Level (No.) 1
Center of gravity 125 mm
Powered by (batteries) 0
Top Attachment 1/4″ screw, 3/8″ screw attachmenttype
Color Black
Easy Link No
Front Tilt -70° / +75° tiltrange
Ball Flat 100 Ball
Head Type Video/Fluid Head
Maximum Working Temperature 60 °C
Minimum Working Temperature -20 °C
Pan Bar Included Yes
Pan Drag 0 plus 3 step
Panoramic Rotation 360 °
Plate Type 357PLV-1
Quick Release Yes
Tilt Drag 0 plus 3 step
Working Height 15 cm
Accessory Compatibility MVAPANBARM; MVAPANBARL; 519LV
