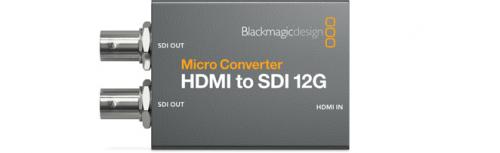

BLACKMAGIC Micro conv HDMI to SDI 12G PSU (b-CONVCMICHS12GWPSU)
The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/47.95/48 DCI. You can power it over USB from a laptop or a mobile phone charger!
ConnectionsSDI Video Outputs2 HDMI 2.0 Video Outputs1 x type A. SDI Rates270Mb, 1.5G, 3G, 6G, 12G. Multi Rate SupportAuto detection of SD, HD, 2K, Ultra HD and 4K. Updates, Configurations and PowerUSB Type‑C. ReclockingYes StandardsSD Video Standards525i59.94 NTSC, 625i50 PAL HD Video Standards720p50, 720p59.94, 720p60 Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 4K Video Standards4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 SDI Video RatesSDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. SDI Color Precision4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. SDI Color SpaceYUV SDI Auto SwitchingAutomatically detects SD, HD, Ultra HD and 4K DCI. Level A and B is user selectable on output for 3G‑SDI. HDMI Video Standards525i59.94 NTSC, 625i50 PAL HDMI Color Precision4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. HDMI Color SpaceYUV Copy ProtectionHDMI input is unable to capture from copy protected HDMI sources. Settings ControlVia MacOS™ and Windows™ software utility connected by USB. Operating SystemsMac 10.15 Catalina, Windows 10, 64-bit. SoftwareInternal software upgrade via USB. Power RequirementsPower Consumption4W max. Operational Voltage Range4.4V to 5.25V DC Physical Specifications
Environmental SpecificationsOperating Temperature0° to 40° C (32° to 104° F) Storage Temperature-20° to 60° C (-4° to 140° F) Relative Humidity0% to 90% non-condensing
