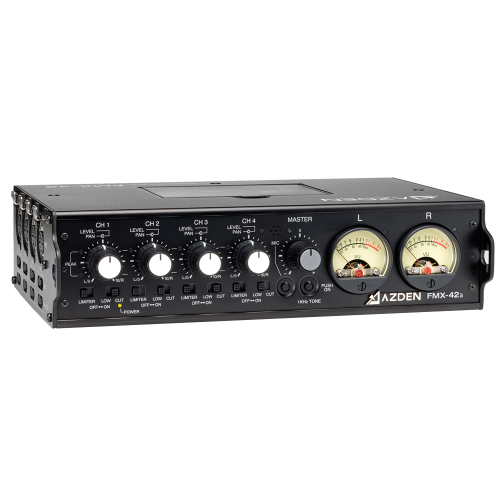

AZDEN FMX42A 4 channel field mixer (AMA-FMX-42A)

Having 4 balanced XLR line/mic inputs with individual level and pan controls, the FMX-42a provides switchable (per channel) 48V phantom power and limiting, professional quality VU meters for accurate level setting, master level control, 1k tone generator, 2 balanced XLR outputs (line/mic switchable), stereo mini-jack output for DV cameras, 10-pin Camera Return, mini-jack Camera Return and a headphone monitor with level control.

The 10-pin camera return may also be used as a secondary stereo output, independent from the mixer's main XLR outputs, using Azden's MX-10 Cable.

The FMX-42a can be powered by either 6 internal “AA” batteries or an optional 12V DC external supply (Locking 4-Pin Hirose connector). A ballistic nylon carrying case is included.

Features:

• 4 balanced XLR line/mic inputs and pan controls
• Switchable 48V phantom power and limiting
• Professional quality VU meters
• 2 balanced XLR outputs (line/mic switchable)
• Stereo mini-jack output for DV cameras
• 10-pin & mini-jack Camera Return & headphone out with level control
• 6x AA battery powered
• Optional A/C adapter
