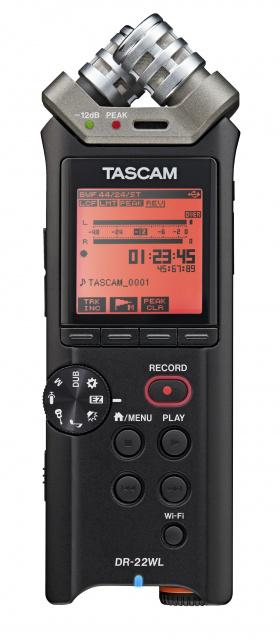

TASCAM -DR22WL Linear PCM/MP3 wifirecorder (ART-DR22WL)

The groundbreaking DR-22WL from TASCAM is the first portable recorder to include Wi-Fi for transport control, file transfer, and audio streaming to your smartphone or PC. Other innovations like the new Scene Dial make it easier than ever to capture great-sounding recordings and share them online. A set of stereo condenser microphones is arranged in true XY pattern for ideal stereo imaging. The eight-position Scene Dial selects recording settings for typical situations, or can be set to full manual for greater control.

Included in the DR-22WL is a Wi-Fi function for controlling its transport and transferring files to a smartphone or computer. A free app for iOS and Android controls the transport and transfers files for instant upload. For a recording beginner or experienced user looking for a great-sounding, portable recorder with Wi-Fi, the DR-22WL is the only choice.

The product improvement in Version 1.20 is the XRI (eXtended Recording Information) feature which embeds the DR-22WL/DR-44WL settings information into the BWF file. The BWF format audio file settings information, such as recorder name, recording level and input source can be included in the file. The "previous concert setting" can be easily reproduced.

In addition, a smartphone's GPS information can be embedded while connected to the recorder via Wi-Fi and using the TASCAM DR CONTROL app. The GPS information of the recording is very useful when making recordings in multiple locations, and the XRI data containing the GPS information is useful as a log when recording environmental sounds.

We are constantly improving the functionality of the TASCAM handheld line to make recording more enjoyable and convenient. A customer and recording enthusiast who asked "Please tell me how the sample sound on the website was recorded…" was the impetus for the development of the XRI feature. Input settings and recording level data are very important elements for maximizing the quality of a recording, and we saw massive potential in embedding them in the audio file. TASCAM has over 60 years of experience in the recording industry, and the XRI function is our latest innovation.

Equipped with XRI (eXtended Recording Information) functionality that embeds GPS information and settings information in the recording file

XRI is a function that stores the recording settings after each recording. This function allows the user to identify the recorder used, as well as the settings. XRI information can be displayed on XRI-compatible models and applications.

While using the DR CONTROL smartphone app, GPS information of the recording location can be embedded. This function is useful for outdoor sound-gathering recordings. XRI information is accessible on the main unit or from the DR CONTROL app.

XRI function supports BWF format recordings. Three modes of operation can be selected - OFF/ON/ON+GPS.

OFF:Extended recording information (XRI) is not recorded.
ON:Extended recording information (XRI) is recorded into the BWF file. The following information is included…

• MAKER(Maker Name):Recorder's brand name
• MODEL(Model Name):Recorder's model name
• FW VER.(Firmware Version):Recorder's Firmware version
• SOURCE(Input Source):Sound input method (input terminal or microphone)
• INPUT LV(Input Level Setting):Input level setting
• LOW CUT(Low Cut Filter Setting):Low cut filter setting
• LV CTRL(Level Control Setting):Recording level - automatic control function
• EFFECT(Effect Setting):Effect ON/OFF

ON+GPS:In addition to the above information, GPS information of where the recording was initiated (LATITUDE/LONGITUDE) is recorded.

XRI compatible models

• DR-22WL
• DR-44WL
• TASCAM DR CONTROL

* All images are captured from DR-44WL. DR-22WL has same menu and settings.
* With DR-44WL, XRI function can be used only in 4CH mode.
* XRI function is effective only in BWF format.
* Default is "ON." To use GPS information, change setting to "ON+GPS."
* XRI function is planned to be incorporated in more TASCAM recorders and applications. The specifications are available to other manufacturers considering incorporating this function into their products.

Peak Mark function identifies locations of over-level peaks

The Peak Mark function automatically places a mark 2 seconds before the detected peak (PEAK LED). This function quickly identifies where the peak was detected during recording, which is useful for post-recording confirmation. When there are no problems found after confirmation, the mark can be deleted. In the BWF format (in the same way as with other types of marks) the peak mark can utilized in corresponding DAWs such as SONAR.

* DR Series detects peaks at levels lower than 0dB, and the PEAK LED lights to simplify input level setting.
* New marks are not issued for 10 seconds after the previous peak mark.

Protect function to safeguard important files

The built-in Protect function prevents important recorded files from being mistakenly deleted. When the protect function is ON, files cannot be deleted by operating the main unit.

Other improved features

Version 1.20 Firmware functions have been improved based on customer feedback…

• Marks available during playback
• Mark Skip Mode option is added (ALL/MANUAL/LEVEL/TIME/PEAK/OFF)
• Single Mark deletion or All Mark deletion
• Empty folder deletion

A pair of studio-quality condenser microphones top the DR-22WL, arranged in a true XY pattern for detailed imaging and phase coherence. The mic capsules are build to withstand up to 120dB SPL without distorting. Record concerts and rehearsals with the confidence that your recording won't be ruined with clipping.

Cardioid Condenser Mics in an X-Y Pattern

Cardioid condenser capsules are mounted in acoustically-tuned housings. As with all TASCAM recorders, the mic capsules were selected after extensive listening tests. The true X-Y pattern captures the stereo field in phase-alignment, for perfect imaging during playback.

Designed To Handle High Sound Pressure Levels – Up to 120dB SPL

The design of the DR-22WL allows it to record loud sound sources, including rehearsals and concerts, without distortion. Up to 120 dB SPL means that a volume level over 10 times higher than the 105dB SPL maximum sound pressure of a movie theater can be captured without clipping. The high level capability also makes the DR-22WL ideal for sound effects gathering.

Superior Microphone Preamp and A/D Converter for Quiet Operation

A programmable gain amplifier (PGA) is used to adjust the level of the audio inputs. In many devices, the audio codec level is adjusted to control levels. In the DR-22WL, the mic gain circuit is independent from the A/D converter for low noise performance as well as programmable gain (manual, automatic, or controlled over Wi-Fi.)  A CIRRUS LOGIC CS42L52 is used in the DR-22WL, a premium-quality audio codec. The A/D - D/A chip features both great audio performance and low power use for longer battery life. The built-in mics and the external inputs both pass through this low-noise audio input circuit.

 Recorder Section

• Supported WAV recording formats: 44.1k/48k/96kHz, 16/24bit, WAV/BWF
• Supported MP3 recording format: 44.1k/48kkHZ, 32k to 320kbps, MP3
• Recording media: microSD/SDHC/SDXC card (up to 128GB SDXC card)

Recording Hardware

• Cardioid stereo condenser microphones fixed in X-Y position
• High sound pressure design captures levels up to 120dB SPL
• PGA (programmable gain amplifier) and Cirrus Logic CS42L52 audio codec for low-noise, high-performance audio recording

Key Features

• Scene Dial Presets for instant setup of common recording applications
• Remote control, file transfer and streaming playback using 2.4GHz Wi-Fi
• Wi-Fi connects directly to smartphone without a router
• Full remote control using the free TASCAM app for iOS and Android
• Recorded audio can be posted directly to SoundCloud using the TASCAM DR Control app.

Recording Function

• Dual format recording function allows simultaneous recording of both WAV and MP3 files
• Automatic level optimization functions (Peak Reduction & Limiter)
• Low-cut filter with four selectable frequencies (40/80/120/220Hz)
• Pre-recording buffer records up to 2 seconds prior to starting recording
• Automatic track increment function that can be set according to the application (level, elapsed time or manual)
• Auto recording function that can detect the sound input signal level and automatically start recording
• Automatic mark function that adds marks according to set conditions (peak detection or manual)

Playback Function

• Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
• A-B Loop playback function ideal for practicing music

Editing Function

• Automatic division function that divides files at marks (manual division also possible)

Other Function

• Reverb effect for vocal and instrument resonance
• Automatic power saving function that prevents unnecessary waste of battery power
• Resume function that retains the last stop position when power is turned back ON
• File name format can be set to use a user-defined word or the date
• Audio files created on computers can be played (Only in formats compatible with this product)

Other Hardware

• Built-in monaural speaker with an output of 0.3W
• 128×128 pixel oversized graphic LCD with backlight
• USB 2.0 High-speed file transfer to a computer
• Stereo mini headphone line output / Headphone output connector
• Powered by four AA batteries, USB bus power, or AC adapter
• Long-time operation of over ** hours is possible using just the internal batteries
• Strap -hole
• Tripod attachment screw-hole
• 4GB microSD card is included
