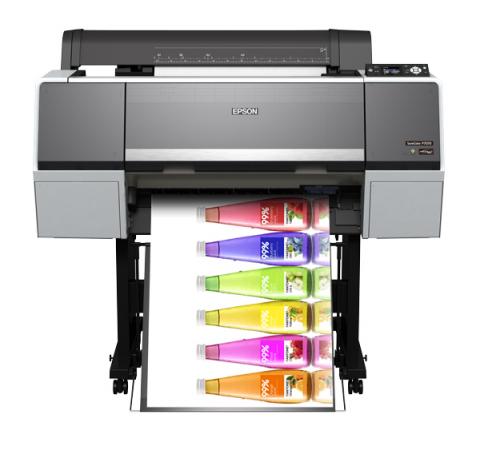

EPSON P7070 Surecolor 24"printer` (PEIP-7070)
|
$6,767.75(AUD inc. Tax)
|
|

|
The SC-P7070 is a 24" (610mm) Large Format Printer that is designed for premium photo, fine art, proofing & packaging design. It supports a wide range of standard and specialist media in roll and sheet formats. It features a PrecisionCore® Thin Film (TFP) head with Variable Sized Droplet Technology™ that enables the output of images in high resolution with superior fidelity and tonal gradation. It uses Epson’s latest UltraChrome® HDX all-pigment aqueous ink for accurate colour with an enhanced gamut, Dmax and image durability. The printer uses a 10 colour ink configuration with two levels of black, a choice of a third black or alternative Violet ink for outstanding colour and B&W prints with up to 99% PANTONE® coverage. Cartridges come in sizes to suit various levels of use and cost per print requirements. An optional SpectroProofer (ILS30) is available for precision colour management and ISO standard proofing work.
FEATURES AT A GLANCE
- Amazing Print Quality – Epson 2880x1440dpi TFP head with VSDT enables consistent and predictable output in ultra-high resolution with superior half tones and an optimised ink density.
- Supreme Colour – 10 colour Epson UltraChrome HDX ink enables prints with a high dMax and wide colour gamut, can be configured with either Light Light Black for a 98% PANTONE certified coverage or Violet for 99% coverage.
- Outstanding B&W – produces gallery quality black-and-white images with auto switching between Photo & Matte ink for output on different media types.
- Excellent Image Stability – prints dry quickly to become water and scratch resistant. Output can be stored for extended periods with excellent lightfastness*.
- Flexible Operation – supports a wide range of media with print speeds up to 37m2/hr . Handles roll based stock up to 24" (610mm) wide and sheets up to A1 and above including board up to 1.5mm thick. Supports edge-to-edge and borderless printing.
- Easy to Use – features spindle-less roll media loading, adjustable tension control, an auto media management system, and a heavy duty auto cutter. Has a colour LCD control panel with integrated help and offers flexible high-speed interfacing.
- Epson Print Layout Software – This plug-in for Adobe Photoshop, Lightroom, and Nikon ViewNX-i provides a simple, easy and flexible tool for producing images to suit a variety of display requirements. Images can be printed individually or as a compound, either borderless or with a choice of border sizes and styles. An advanced gallery wrap function enables output that is suitable for mounting onto a frame. The program operates via intuitive and consistent controls that include slider bars and colour wheels for precise and easy adjustment. It includes a set of colour modes to create different finishes and moods as well as an Advanced Black and White mode. It includes a set of template Layouts, supports ICC soft proofing, Colour Production, Preview, Custom media registration & Panorama Layouts.
- Designed for Business – operates with reduced power consumption, uses 11 large and cost-effective ink cartridges (up to 700ml), optional 320GB HDD and requires minimum user maintenance. Supplied in various configurations with an optional SpectroProofer, and user selectable Epson Cover Plus service packs for cover up to a total of 5 years. Compatible with a wide range of design, production, workflow management and RIP software.
SIZE |
Max Print Width |
24 inch (610mm) wide |
Max Sheet Size |
A1+ |
PRINT TECHNOLOGY
|
Print Head |
PrecisionCore® TFP |
Print Modes |
Uni & Bi-directional |
Print Technology |
VSDT, auto head alignment, auto nozzle checking, auto cleaning, barcode print system, auto Pk & Mk switching |
Nozzle Configuration |
360 per colour |
Active Channels |
10 |
Max Resolution |
2880 x 1440dpi |
Min Droplet Size |
3.5pl |
INK SYSTEM
|
Family |
Epson Ultrachrome® HDX with Light Light Black or Violet1 |
Type |
Aqueous all-pigment |
Colours |
11 (Choice of Light Light Black OR Violet)* |
Cartridge Size |
150 / 350 / 700ml |
* Configured at start-up. Once configured the colour choice cannot be changed. |
PERFORMANCE (A1 sheet)
|
Draft |
360 x 360dpi |
0.8 minutes |
Normal |
360 x 720dpi |
1.5 minutes |
Fine |
720 x 720dpi |
3.3 minutes |
Super Fine |
720 x 1440dpi |
8.1 minutes |
Super Photo |
2880 x 1440dpi |
13.4 minutes |
Figures represent print times only for the Epson test sample image as shown, produced on Plain (draft – fine modes) and Premium Photo paper (super fine & super photo modes). Print speeds are engine only with total throughput time dependant on workflow configuration, paper type, software, file format / size, print resolution, ink coverage, networking, and other factors.
|
MEDIA SUPPORT
|
Format |
Roll and cut sheet |
Size |
254-610mm wide x 150mm diameter 3" core / 103mm diameter 2" core roll, A4-A1+ sheet |
Thickness |
0.08-0.5mm roll / 0.08-1.5mm sheet |
Min Margins |
0mm top, left, right & bottom roll / 3mm top, 0mm left & right, 14mm bottom sheet |
Loading |
Front spindle-less single roll / top single sheet |
Handling |
Auto and manual tension control, high-speed heavy-duty rotary auto-cutter (under 4s per page) & Media Barcode System |
Manual Double Sided Printing |
Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability. |
Output |
Integrated folding bin |
OPERATION
|
Control Panel |
2.7” Colour LCD |
Interface |
High Speed USB 2.0 Ethernet 10Base-T / 100Base-TX / 1000Base-T |
Included Software |
Printer Driver, LFP RemotePanel 2, EpsonNet Setup, EpsonNet Config EpsonNet Print (Windows only), Epson Color Calibration Utility |
Web Downloads |
Web Downloads: LFP Accounting Tool, Epson Print Layout, HDD Utility Software, LFP print plug-in for Office |
HDD (optional) |
320GB |
OS Compatibility |
Mac OS X 10.6.8 or later, Windows 10, Windows 8/8.1, Win 7, Win 7 x64, Win Vista, Win Vista x64 & Win XP |
Software Compatibility |
Compatible with a wide range of design, production, workflow management and RIP software |
Memory |
1GB Main + 64MB Network |
Language |
ESC Raster |
ENVIRONMENTAL
|
Operational Temp |
10° to 35° C (15-25° C recommended) |
Operational Humidity |
20 to 80% with no condensation (40-60% recommended) |
Power Supply |
100 - 240 V, 50 Hz - 60 Hz AC, 2A |
Power Consumption |
65W Operating / Standby 19W / 2W Sleep |
Operating Noise |
47dB |
PHYSICAL |
Dimensions |
Paper Basket Closed: 1,356mm x 1,218mm x 667mm (WxHxD) Paper Basket Open: 1,356mm x 1,218mm x 903mm (WxHxD) |
Weight |
101kg (without ink) |
WHAT'S IN THE BOX |
Printer, Stand, Power Cord, Set of 110ml Inks (20-50% of each loaded cart will be used to charge the machine during initialisation and the unused LLK OR Violet cart must be discarded), 1 x Roll Media Adaptor Set, 1 x Maintenance Tanks, Installation / Safety manual, Utility software & User manual (CD) |
Packaging |
1480 (W) x 792 (D) x 1070 (H) mm, 142kg |
CONFIGURATION OPTIONS |
SCP70701YR |
Printer with 1 Year On-Site Warranty** |
SCP70703YR |
Printer with 2 Year CoverPlus On-Site Service Pack (total 3yrs cover)** |
SCP70705YR |
Printer with 2 x 2 Year CoverPlus On-Site Service Packs (total 5yrs cover)** |
SCP7070SP1YR |
Printer + S-Proofer ILS30, 1 Yr On-Site Warranty** |
SCP7070SP3YR |
Printer + S-Proofer ILS30, 2 Yr CoverPlus On-Site Service Pack (total 3yrs cover)** |
SCP7070SP5YR |
Printer + S-Proofer ILS30, 2 x 2 Yr CoverPlus On-Site Service Packs (total 5yrs cover)** |
ACCESSORIES & OPTIONS |
C12C811241 |
Additional Roll Media Adapter set |
C12C890121 |
Optional Roll Paper Belt |
C12C815331 |
Replacement Auto Cutter Blade |
C13T699700 |
Replacement Maintenance Tank |
C12C848031 |
Optional 320GB HDD |
SPECTRO24SP |
SpectroProofer ILS30 Upgrade Kit |
1YWSCP7070 |
1 Year CoverPlus On-Site Printer Service Pack** |
2YWSCP7070 |
2 Year CoverPlus On-Site Printer Service Pack** |
1YWSPECTRO |
1 Year CoverPlus On-Site Spectro Service Pack** |
2YWSPECTRO |
2 Year CoverPlus On-Site Spectro Service Pack** |
