LINDY 43391 150mt cat6 > USB2 extender (97-43391)

10%
off
$595.00 $535.49(AUD inc. Tax)
Qty
NO STOCK - BACK ORDER
Help
Bookmark and Share

Related Items

No related items.

150m CAT6 USB 2.0 Extender

  • Extends a single USB port up to 150m using Cat.6 network cable (not included)
  • Plug & Play installation, OS independent
  • Perfect for use with USB 2.0 devices such as storage devices, webcams, printers, scanners, mice and keyboards
  • Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
  • 2 year warranty

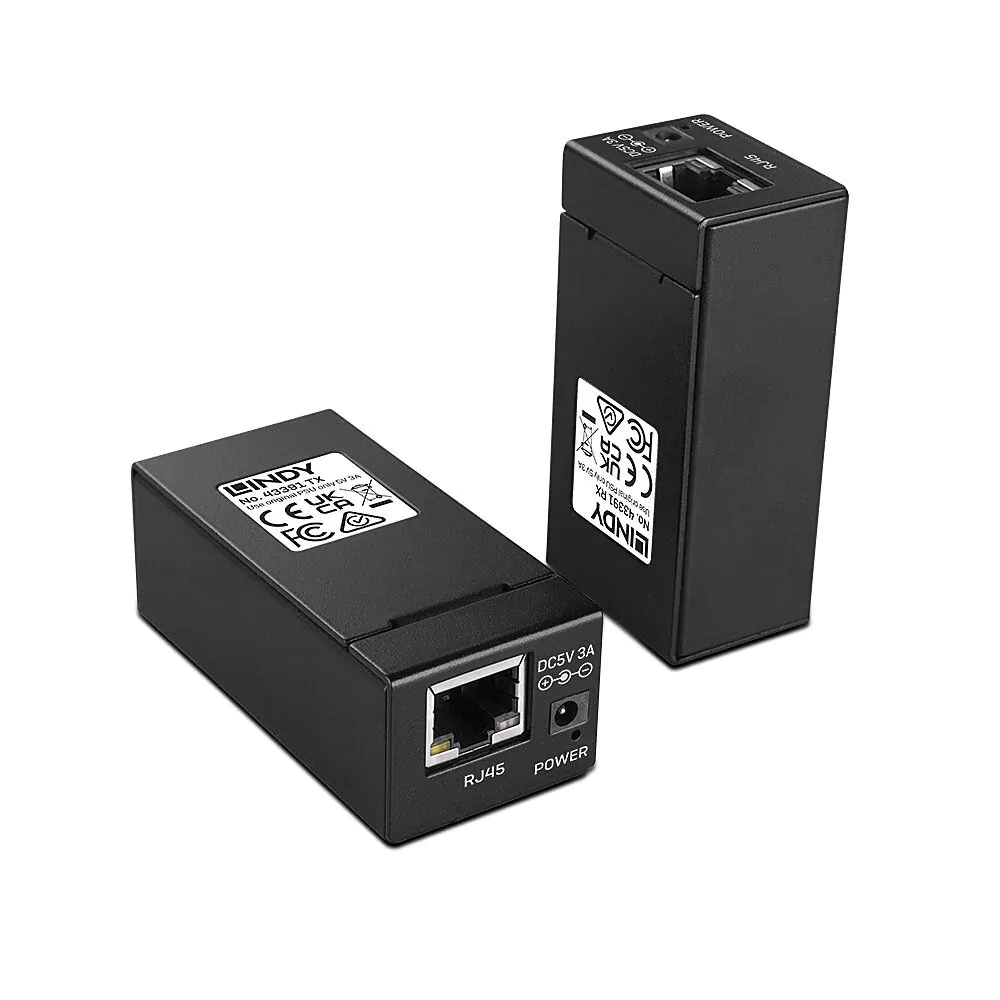

The Lindy 150m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 150m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.

This USB 2.0 Extender is suitable for many long-distance applications like remote printing, camera surveillance or controlling machines.  This USB 2.0 Extender is supplied with a power adapter for the receiver unit to ensure secure and uninterrupted power. The robust metal housing makes it ideal for rugged environments.

Package Contents
  • Transmitter unit
  • Receiver unit
  • Multi-Country Power Supply (EU, UK, US & AUS)
  • Lindy Manual



Specifications

  • USB Standard: USB2.0
  • Supported Bandwidth: 480Mbps
  • Maximum Distance: 150m (492ft)
  • Transmission Medium: Cat. 6 UTP network cable
  • Chipset: CH317Q
  • Special Features: Supports isochronous data transfer, LEDs for Power, Link, Activity

Connectors

  • Transmitter Input:  USB Type B (Female)
  • Transmitter Output:  RJ45 (Female)
  • Receiver Input:  RJ45 (Female)
  • Receiver Output: USB Type A (Female)
  • Power: 3.5/1.35mm DC socket

Physical Properties

  • Dimensions WxDxH: 67x32x25mm (2.6x1.3x1.0in) / unit
  • Housing Material: Metal
  • Net Weight: 0.084kg (0.19lb) per unit
  • Operating Temperature: 0° - 50°C (32°F - 122°F)
  • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
  • Humidity: 10 - 90% RH (non-condensing)
  • Power Requirements: 5V DC 3A
  • Colour: Black

Miscellaneous

  • Packaging Type: Carton Box
  • Packaging Dimensions: 220x194x60mm (8.66x7.64x2.36in)
  • Gross Weight: 0.6kg (1.32lb)
  • Warranty (Years): 2
  • Product Compliance: CE, FCC, RoHS & REACH, CP65
