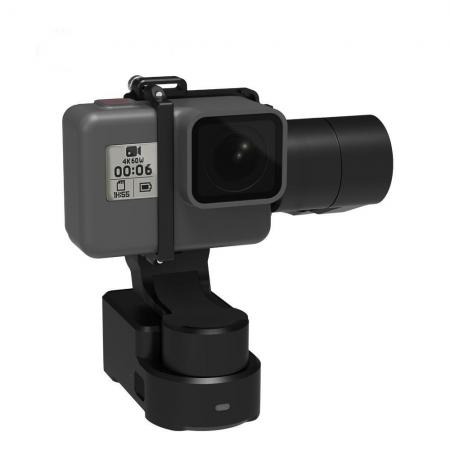

FEIYUTECH WG2X wearable gimble water resist (VR-FYWG2X)

WG2X Structure

Main Features

• Lighter gimbal to lighten the load.

• Unlimited rotated angles in tilting and panning motor to take wide footage.

• Splashproof function let you make a smooth clip in a foggy day.

• Session adapter with long screws, allows you switch between Hero and Session series easily.

• The optional RX0 adapter gives you more choice.

• Soft protection pad on the panning motor to well protect the camera.

• Anti-slip design on the button and side, help you hold it steady.

• Power on and off with a reminder beep that can be heard clearly outdoors.

• Automatically enter standby mode if turning on without camera to protect the motor.

• Intelligent initialisation automatically check motionless desk and finish it with a reminder of the beep.

• Intelligently follow pre-set route in auto-rotation mode, fit for motion time-lapse or automatic shooting.

• Quick upgrade, set up the parameter, reset and virtual remote control with APP.

• Several working mode make most of the videos easily to be done.

• Suitable for all the accessories of GoPro base adapter with 1/4 inch T-head connector, which can be mounting on helmet, bicycle, selfile pole, etc.

• Compatible with extension bar and tripod with 1/4 inch thread hole at the button and side.

Compatible Action Camera

• WG2X is compatible with GoPro HERO 8(Required GoPro 8 Mount)/7/6/5/YI 4K / SJCAM/AEE/Ricca, etc, and the cameras with similar size as GoPro. The maximum payload is 135 grams.

• It can compatible with HERO Session series by session mounting plate.

• It can also compatible with Sony RX0/RX0 II with additional RX0 adapter.

Gimbal Usage

Adaptive Device and Size
GoPro HERO 8(Required GoPro 8 Mount)/7/6/5/YI 4K / SJCAM/AEE/ Ricca etc.; Similar Cameras Size with GoPro;

HERO Session Camera Series with Session mounting plate; Sony RX0/RX0 Ⅱ with additional RX0 adapter.

Maximum Payload
0.298lb/135g(In balanced status)

Rotation Angle
Tilt: 360°;
Roll: 310°(Structure range), 70° (Limit angle after camera mounted);
Pan: 360°

Mounting Way
Inverted mounted (Camera can be in left/right side)
Vertical mounted (Camera can be in left/right side)
Forward mounted (Camera can be in left/right side)

Playing Modes
Pan Mode (Default), Follow Mode (Pan and tilt), Auto-rotation Mode, Lock Mode

Balance Adjustment
Make gimbal balanced with the movement of cross arm

Manual Lock
Yes

Reset / Initialisation
Yes

Camera Control

Photography or Video control
Support

Camera Mode Switch
Video mode and Photo Mode Shooting

Connection

Bluetooth
Gimbal bluetooth connect to Feiyu ON App

Wi-Fi
Control Action camera via Wi-Fi on App

Power

Working Time
2.5h(wifi function on)

Battery
Build-in lithium battery，1500mAh，3.7V/p>

Charging
5V/2A power charger, charging via USB port is supported

Charging Time
About 2 hours (using a 5V/2A charger)

General

Size
89.3mm x 78.1mm (max) x 102.5mm

Weight
0.52lb/238g (without Camera)

Extended Interface
2 1/4 inch thread holes (bottom of handle)

Main Materials
Aluminium Alloy

Firmware Upgrade
Yes

Splashproof
Splashproof. Not suitable for using under water or being exposed to salt water.

Accessories

Standard Accessories
1 x USB Cable
1 x Session mounting plate
2 x short screws
2 x long screws
1 x 1/4 inch T-head connector
1 x EPP bag

Optional Accessories
Extension bar
Tripod
RX0 adapter
