BLACKMAGIC Teranex mini smart panel (b-CONVNTRM/YA/SMTPN)

Introducing lowcost multi-camera live production with advanced broadcast features

The new ATEM Mini makes it easy to create professional multi-camera productions for live streaming to YouTube or innovative business presentations using Skype. Simply connect ATEM Mini and you can switch live between 4 high-quality video camera inputs in dramatically better quality images. You can even connect to a computer to present PowerPoint slides or add a gaming console. The built-in DVE allows exciting picture in picture effects, perfect for live commentary! There are loads of video effects too! To live stream, ATEM Mini has a USB output that works like a webcam, so you can connect to any video software. There's also HDMI video out for projectors! Microphone inputs allow high-quality desktop and lapel mics for interviews and presentations. ATEM Mini even has secret broadcast features built-in so it can do high-end work!

Faster video production Plus Live Streaming

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ATEM Mini connects to any computer and looks just like a built-in webcam so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close-ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, web sites or gaming consoles. All switching is in real-time so you can live stream to any social media platform such as YouTube, Facebook, TwitchTV and many more!

Self ContainedBroadcast Quality Switcher

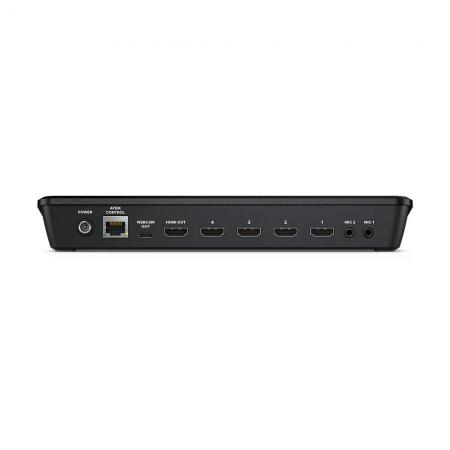

ATEM Mini features a compact control panel based design with all video, audio and control connections on the rear panel. The front panel includes easy to use buttons for selecting sources, adjusting audio inputs, as well as selecting video effects and transitions. The rear panel includes HDMI inputs for connecting cameras or computers, plus additional microphone inputs. The ATEM Mini program is output via an HDMI video out as well as a USB for webcam output. The front panel buttons are large and easy to use by the feel, so it’s even possible to use the switcher while presenting! You also get audio mixer buttons for live audio mixing. The fade to black button "FTB" lets you fade down at the end of your program.

Easy to use and fast to Learn!

ATEM Mini is very easy to use, as you simply press any of the input buttons labelled 1 to 4 on the front panel to change or cut between video sources. You can choose between cut transitions or effects transitions by selecting the cut or auto buttons on the panel. Unlike cut, the auto button tells ATEM Mini to use a selected video effect when switching between inputs. You can select from exciting transitions such as a commonly used dissolve, or more dramatic effects such as dip to color, DVE squeeze and DVE push. The DVE is perfect for a picture in picture effects and you can instantly set up different picture positions from the buttons on the control panel. There is even a still store for titles and graphics accessible via external software control.

Connections

Total Video Inputs - 4

Total Outputs - 2

Total Aux Outputs - 1

Total Audio Inputs - 2 x 3.5mm stereo mini jack.

Total Audio Outputs - None, embedded audio-only.

Timecode Connection - None

HDMI Video Inputs - 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.

Video-Input Re-Sync - On all 4 HDMI inputs.

Frame rate and format converters- On all 4 HDMI inputs.

HDMI Program Outputs - 1

Computer Outputs - 1 x USB Type-C 3.1 Gen 1.

Standards

HD Video Input Standards - 720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

HD Video Output Standards - 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards - None

Video Sampling - 4:2:2 YUV

Color Precision - 10-bit

Color Space - Rec 709

HDMI Input Resolutions from Computers

1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz
1920 x1080i 50 and 59.94Hz 60Hz

Colorspace Conversion - Hardware based real time.

Product Specifics

Upstream Keyers - 1

Downstream Keyers - 1

Advanced Chroma Keyers - 1

Linear/Luma Keyers - 2

Transition Keyer - DVE only.

Total Number of Layers - 4

Pattern Generators - 1

Color Generators - 2

DVE with Borders and Drop Shadow - 1

Interface - Minimum monitor resolution of 1366 x 768.
