MANFROTTO 504HD & 535K set tripod (TM-V504HD535K)

10%
off
$1,995.44 $1,795.89(AUD inc. Tax)
Qty
NO STOCK - BACK ORDER
Help

  • Variable Fluid Drag System on PAN and TILT movements
  • 4-step counterbalance system
  • Sliding plate for rapid camera connection and set up
  • Inbuilt Ø75mm levelling half ball
  • Carbon fibre single leg tripod

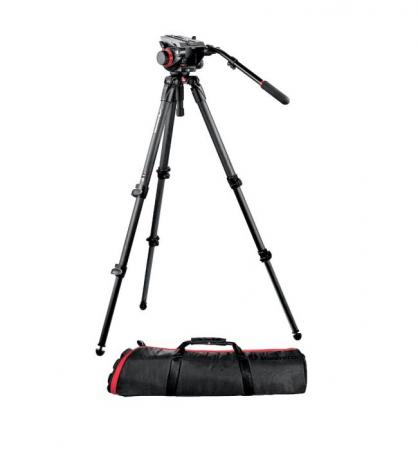

A lightweight, intuitive and versatile video system. It comes with the 504 fluid head with incorporated 75mm half ball, 535 carbon fibre single leg tripod, and the MB MBAG100PN tripod bag, giving you everything you need in one neat package.

The Manfrotto 504 fluid video head features variable fluid drag system in both pan and tilt movement which allows smooth shooting, a 4-step counterbalance system up to 7,5 Kg and a maximum payload of 12 Kg at 55mm C.O.G.. Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted.

The 535 carbon fibre tripod enables you to select an angle to suit you thanks to the leg angle selector. Together with the head you can move smoothly up and down, from 40,5cms to 184cms.

Specifications

Weight

5.2 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

75 Ball

Safety Payload Weight

12 kg

Counterbalance System

Variable Steps

Powered by (batteries)

Lithium

Counterbalance Weight

0, 2.5, 5, 7.5 kg

Bubble Spirit Level (No.)

1

Center of gravity

55 mm

Carrying Bag Included

MBAG100PN

Center Column

no centre column

Certifications

WEE;RoHS

Closed Length

88 cm

Colour

Black

Front Tilt

-60° / +90°

Head Type

Video/Fluid Head

Leg Type

Single

Leg Angles

23°, 50°, 70°

Leg Lock Type

Flip Lock

Leg Sections

3

Legs Tube Diameter

24.8, 29.2, 34.2 mm

Material

Carbon Fiber, Aluminium

Maximum Height

184 cm

Maximum Working Temperature

60 °C

Min Height

40.5 cm

Minimum Working Temperature

-20 °C

Pan Bar Included

Yes

Pan Drag

continuously adjustable from 0 to max level

Panoramic Rotation

360 °

Plate Type

504PLONG

Quick Release

Yes

Tilt Drag

continuously adjustable from 0 to max level

Accessory Compatibility

MVAPANBARM; MVAPANBARL;502HLV;509HLV;114;127V;127VS

No accessories for this product.

FREE FREIGHT or POSTAGE
(Packing, handeling and shipping charges have been incorporated in the cost of these goods)
Today we are offering free freight in Australia on this product.Small items will ship via Australia post. All other products will ship via road freight or local couriers.This is a limited offer and subject to change at any time.
