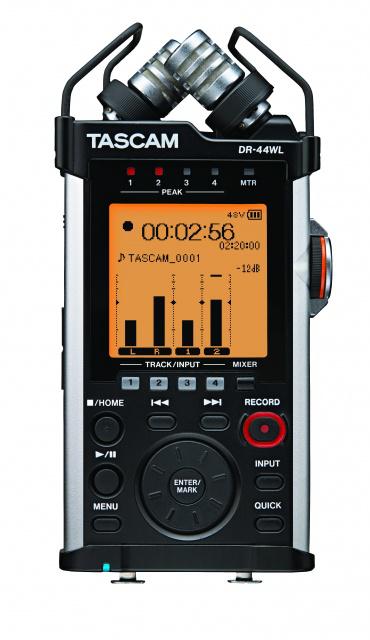

TASCAM -DR44WL Portable digital recorder (ART-DR44WL)

20%
off
$699.00 $559.20(AUD inc. Tax)
Qty
Discontinued
Help

TASCAM's DR-44WL is the latest recording innovation from TASCAM. It starts with high-quality stereo condenser microphones, updated with a new XY pattern and high-performance mic components. Two locking XLR inputs feed TASCAM's latest microphone preamp design, with the lowest noise level and richest sound available in a portable recorder.

The DR-44WL revolutionizes handheld recorders with its new Wi-Fi feature. A free app for iOS or Android devices provides control, file transfer, and audio streaming to your smartphone. Start recording while on-stage or from anywhere in the room, while setting trim levels and check meters to make sure the transport is running. At the end of a performance, transfer recordings to your phone and instantly upload them to SoundCloud, Facebook, even email directly to fans.

With rugged construction, great sound quality, and TASCAM's famed ease of use, the DR-44WL is the ultimate portable recorder for anyone from beginning musicians to experienced professionals.

The product improvement in Version 1.20 is the XRI (eXtended Recording Information) feature which embeds the DR-22WL/DR-44WL settings information into the BWF file. The BWF format audio file settings information, such as recorder name, recording level and input source can be included in the file. The "previous concert setting" can be easily reproduced.

In addition, a smartphone's GPS information can be embedded while connected to the recorder via Wi-Fi and using the TASCAM DR CONTROL app. The GPS information of the recording is very useful when making recordings in multiple locations, and the XRI data containing the GPS information is useful as a log when recording environmental sounds.

We are constantly improving the functionality of the TASCAM handheld line to make recording more enjoyable and convenient. A customer and recording enthusiast who asked "Please tell me how the sample sound on the website was recorded…" was the impetus for the development of the XRI feature. Input settings and recording level data are very important elements for maximizing the quality of a recording, and we saw massive potential in embedding them in the audio file. TASCAM has over 60 years of experience in the recording industry, and the XRI function is our latest innovation.



Equipped with XRI (eXtended Recording Information) functionality that embeds GPS information and settings information in the recording file
XRI is a function that stores the recording settings after each recording. This function allows the user to identify the recorder used, as well as the settings. XRI information can be displayed on XRI-compatible models and applications.

While using the DR CONTROL smartphone app, GPS information of the recording location can be embedded. This function is useful for outdoor sound-gathering recordings. XRI information is accessible on the main unit or from the DR CONTROL app.

XRI function supports BWF format recordings. Three modes of operation can be selected - OFF/ON/ON+GPS.

OFF:Extended recording information (XRI) is not recorded.
ON:Extended recording information (XRI) is recorded into the BWF file. The following information is included…
  • MAKER(Maker Name):Recorder's brand name
  • MODEL(Model Name):Recorder's model name
  • FW VER.(Firmware Version):Recorder's Firmware version
  • SOURCE(Input Source):Sound input method (input terminal or microphone)
  • INPUT LV(Input Level Setting):Input level setting
  • LOW CUT(Low Cut Filter Setting):Low cut filter setting
  • LV CTRL(Level Control Setting):Recording level - automatic control function
  • EFFECT(Effect Setting):Effect ON/OFF

ON+GPS:In addition to the above information, GPS information of where the recording was initiated (LATITUDE/LONGITUDE) is recorded.

XRI compatible models

* All images are captured from DR-44WL. DR-22WL has same menu and settings.
* With DR-44WL, XRI function can be used only in 4CH mode.
* XRI function is effective only in BWF format.
* Default is "ON." To use GPS information, change setting to "ON+GPS."
* XRI function is planned to be incorporated in more TASCAM recorders and applications. The specifications are available to other manufacturers considering incorporating this function into their products.
Peak Mark function identifies locations of over-level peaks
The Peak Mark function automatically places a mark 2 seconds before the detected peak (PEAK LED). This function quickly identifies where the peak was detected during recording, which is useful for post-recording confirmation. When there are no problems found after confirmation, the mark can be deleted. In the BWF format (in the same way as with other types of marks) the peak mark can utilized in corresponding DAWs such as SONAR.

* DR Series detects peaks at levels lower than 0dB, and the PEAK LED lights to simplify input level setting.
* New marks are not issued for 10 seconds after the previous peak mark.
Protect function to safeguard important files
The built-in Protect function prevents important recorded files from being mistakenly deleted. When the protect function is ON, files cannot be deleted by operating the main unit.
Other improved features
Version 1.20 Firmware functions have been improved based on customer feedback…
  • Marks available during playback
  • Mark Skip Mode option is added (ALL/MANUAL/LEVEL/TIME/PEAK/OFF)
  • Single Mark deletion or All Mark deletion
  • Empty folder deletion



High-Quality Condenser Microphones To Top

A pair of studio-quality condenser microphones top the DR-44WL, arranged in a true XY pattern for detailed imaging and phase coherence. The mic capsules are build to withstand up to 132dB SPL – as loud as a jet airplane – without distorting. Record concerts and rehearsals with the confidence that your recording won't be distorted.

In addition to the great-sounding new capsules, a new shockmounting system has been developed for lower handling noise and rumble. The capsules are suspended in a rubber mount that avoids low frequency noises when handheld, mounted on a camera, or used on a tripod.

Cardioid Condenser Mics in an X-Y Pattern
Cardioid condenser capsules are mounted in acoustically-tuned housings. As with all TASCAM recorders, the mic capsules were selected after extensive listening tests. The true X-Y pattern captures the stereo field in phase-alignment, for perfect imaging during playback.
Designed To Handle High Sound Pressure Levels – Up to 132dB SPL
The design of the DR-44WL allows it to record loud sound sources, including rehearsals and concerts, without distortion. Up to 132 dB SPL means that a volume level over 10 times higher than the 105dB SPL maximum sound pressure of a movie theater can be captured without clipping. The high level capability also makes the DR-44WL ideal for sound effects gathering.
Shockmount Design Reduces Handling Noise
Each mic capsule is cradled in its own shockmount to prevent vibrations from creating low frequency rumbling on the track. Inspired by high-end studio microphone mounts, the rubber material between the capsule and the body of the unit effectively absorbs movement from trucks passing by, handheld operation, or mounting on a camera or tripod.
Dual-Level Recording Feature Helps Prevent Overload
If levels get so high that your track is distorted, that recording can't be saved with any kind of mastering. The DR-44WL includes a limiter to keep levels under control, but an even more effective system is the Dual-Level Recording feature. Dual-Level Recording is a function that solves this problem by simultaneously recording two stereo files at different levels. If your recording is distorted, you have a lower level "safety track" that won't be distorted.
* When the Dual-level recording function is enabled, a maximum of two stereo tracks can be recorded simultaneously.



XLR Combo Jacks For Use With Professional Gear To Top

The XLR/TRS external input jacks accept either microphone or line level sources. Balanced or unbalanced signals can be plugged in, at either +4 or -10 levels, using the locking XLR connector or the 1/4" jack. The DR-44WL supplies 48V Phantom Power for condenser or ribbon microphones that require it. Both the internal mics and external inputs are used during 4-channel recording, perfect for live recording.

XLR/TRS Inputs Support Balanced Line or Mic-Level Sources
Two XLR/TRS combo input jacks are included for external inputs. The External Inputs accept mic or line level sources. For condenser mics, 48V phantom power is available. When set for line level, the inputs can accept -10 or +4 signal levels, balanced or unbalanced. High-quality XLR connectors with locking mechanisms are available, as well as a balanced or unbalanced 1/4" input.
Superior Microphone Preamp and A/D Converter for Quiet Operation
A programmable gain amplifier (PGA) is used to adjust the level of the audio inputs. In many devices, the audio codec level is adjusted to control levels. In the DR-44WL, the mic gain circuit is independent from the A/D converter for low noise performance as well as programmable gain (manual, automatic, or controlled over Wi-Fi.)

The CIRRUS LOGIC CS42L52 is used in the DR-44WL, a premium-quality audio codec. The A/D - D/A chip features both great audio performance and low power use for longer battery life. The built-in mics and the external inputs both pass through this low-noise audio input circuit.
Four-track Recording Mode
  The DR-44WL can record both the internal microphones and the external inputs simultaneously for a four-track recording. This makes it the ideal live recording rig: use the microphones to capture the sound in the room while recording a board mix from the PA mixer. Other 4-channel applications include drum set recording, surround recording, and film production.



Remote Wi-Fi Control To Top

TASCAM has revolutionized handheld recording with the new Wi-Fi control and transfer features. The DR-44WL creates its own Wi-Fi network with your iOS or Android phone, and a free app called DR Control controls remote operation without touching the unit. The app allows recording to be started and stopped, and can be used to check and adjust input levels. Any of the recording controls on the DR-44WL can be controlled over Wi-Fi.

Wi-Fi transmission range is about 65 feet (20m) – well beyond the reach of infrared remotes – so the recorder can be placed wherever the recording sounds best. Audio from the DR-44WL can also be streamed over Wi-Fi to check the recording. Plug headphones into your smartphone and listen to a near-realtime feed from the recorder.

Simple Wi-Fi Connections Without a Router
The DR-44WL connects with smartphones and other Wi-Fi devices directly. There is no need for a Wi-Fi router network or other external equipment. Wi-Fi connections can be established simply by inputting the information shown in the app. Connection status can be checked with an LED on the unit as well as the app screen. Even if the Wi-Fi connection is interrupted, recording will not stop.
Remote Control Using the Free DR Control App (iOS/Android)
The free DR Control app allows your iOS or Android phone to control the recorder from anywhere in the room. Start recording on-stage or from the back of the room, while placing the DR-44WL wherever the microphones sound best. Remote start also eliminates handling noise from pressing a button or moving the recorder.

In addition to recording, playback and other transport controls, DR Control can adjust the input levels, switch on the low-cut filter, change the mix, and more. A power-conservation mode is included to minimize battery consumption from Wi-Fi use.

iTunes App StoreGoogle Play Store
* Functions that can hinder operation have been excluded from wireless control
Wireless Streaming to Monitor the Recorder
With DR Control, audio from the DR-44WL can be broadcast via Wi-Fi to your smartphone for streaming playback. Even when the DR-44WL is in a place that is out of reach, this capability allows you to check audio from the headphone jack. Ensure that you're getting the sound you want without leaving your seat.
* The streaming playback function is intended for checking audio that has already been recorded.



Instantly Transfer Recordings to Your Smartphone or PC to Share Online To Top

In addition to remote control, the DR-44WL allows you to wirelessly transfer recordings to your smartphone or laptop. Upload recordings to SoundCloud through the app, then publish that link to Facebook, Twitter, and other social media. Or simply email the file to friends.

* An Internet connection is necessary to upload files to the Internet from a smartphone.



Dual-Format Recording Function Records both WAV and MP3 Files
Dual Format Recording simultaneously records WAV and MP3 files to the card. This allows you to have instant access to the MP3 file for online sharing, while retaining the uncompressed WAV file master recording for later use.

* Due to MP3 file specifications, this function can only be used with 16-bit 44.1/48kHz WAV formats. This function cannot be used with 24-bit or 96kHz WAV/BWF file formats.
Share audio files from SoundCloud to other social networking services
After recording, transfer your files from the recorder to your smartphone using the TASCAM DR Control app. Files can be uploaded directly to SoundCloud, then you can share that link to Facebook, Twitter, or Google+ timelines with a single button. A free SoundCloud account can be created, giving you up to three hours of uploaded recordings.
* Your smartphone must support Wi-Fi connections. Since direct connection is used, connection with other Wi-Fi networks will not be possible when in use.
* After files are transferred, the smartphone must be connected to the internet in order to upload to SoundCloud.
Wirelessly Transfer Files to Your Computer
A free app for Mac and Windows called File Transfer allows you to move selected recordings from the DR-44WL to your computer over Wi-Fi.
* The computer must support Wi-Fi connections. Since direct connection is used, connection with other Wi-Fi networks will not be possible when in use.



Automatic Features Streamline Recording Setup To Top

Even as a professional recording device, the DR-44WL has numerous automatic functions that can make recording easier for anyone. Numerous automatic recording functions combine with functions that simplify file management.

Peak Reduction and Limiter
These functions automatically adjust the recording level in response to the input level. The peak reduction function automatically lowers the level if an input overload is detected, optimizing the recorded sound. The limiter reduces excessive input levels without changing the input level setting.
Automatic Track Creation by Time
The DR-44WL can automatically create a new file and continue recording without interruption when a set amount of time has elapsed. This function is convenient when recording for long periods of time. For example, when set to 5 minutes, a new file will be created automatically every 5 minutes when recording. These files can be combined later in your audio editing software for seamless playback. Manual file increment is also possible by pressing the Record button during recording.
Automatic Track Creation by Level
The DR-44WL can create a new track every time a level threshold is passed. This can split a concert recording into tracks, and can be useful when digitizing another recording like a cassette, DAT, or vinyl record.
Automatic Mark Function
Marks can be added to files when high levels or peaks are detected. When set to a level, marks can be added automatically at the points when songs end. When set to peak detection and used together with the peak reduction function, these marks will identify the points where peaks were detected – making it easy when using audio editing software on a computer. You can also add markers manually while recording.
File Divide
This function can divide files where marks are added. When used together with the automatic marking function, long recordings can automatically be divided into files with individual songs. Files can also be divided manually.

Multitrack Mode For Serious Demo Production To Top

The DR-44WL is a powerful tool for songwriters. In Multitrack mode (MTR), the DR-44WL is able to overdub one track at a time. With multitrack functionality, you can produce studio-quality music files using just the portable DR-44WL. A reverb effect is also included to sweeten your mix.

MTR mode
MTR mode allows separate multitrack recording to four tracks. Record using the built-in mics to capture song ideas anywhere. Then plug into the external inputs to add amp simulator and keyboard overdubs. Use the mic inputs with +48V phantom power to bring in condenser mics for vocal recording. When you're finished recording your song, use the built-in mixer and reverb to mix, then record your mix as a stereo file.

DR-44WL SPECIFICATIONS

  DR-22WL DR-44WL
Recording media microSD card(64MB to 2GB),
microSDHC card(4GB to 32GB),
microSDXC card(48GB to 128GB)
SD card(64MB to 2GB),
SDHC card(4GB to 32GB),
SDXC card(48GB to 128GB)
Recording format
WAV/BWF
Sampling frequency 44.1kHz/48kHz/96kHz
Quantization bit rate 16bit/24bit
MP3
Sampling frequency 44.1kHz/48kHz
Recording bit rate 32k/64k/96k/128k/192k/256k/320k bps
Playback bit rate 32kbps to 320kbps
Number of channels 2-channels (Stereo) 4-channels
4CH mode - Mono (Up to 4 files)
Stereo (Up to 2 files)
Stereo (1 file) + Mono (Up to 2 files)
MTR mode - Mono (Up to 4 files)
Analog Inputs
EXT MIC/LINE IN
Connector 3.5mm(1/8') stereo mini jack,
Plug-in power Compatible
XLR-3-31,
6.3mm(1/4') TRS standard jack,
Phantom Power Compatible
Input Impendance 10k ohms or more 2.2k ohms or more
Nominal Input Level -20dBV -
Maximum Input Level -4dBV -
EXT IN [MIC]
Nominal Input Level - -17.3dBu +/-2dB
Maximum Input Level - -1.3dBu +/-2dB
EXT IN [LINE]
Nominal Input Level - +4dBu
Maximum Input Level - +20dBu
Analog Outputs
PHONES/LINE OUT
Connector 3.5mm(1/8') stereo mini jack
LINE OUT
Nominal Output Level -14dBV(10k ohm load)
Maximum Output Level +2dBV(10k ohm load)
PHONES
Maximum Output 20mW+20mW(32ohm load)
USB
Connector Micro-B type 4pin
Format USB2.0 HIGH SPEED mass storage class
Wi-Fi
Compliant IEEE 802.11b/g/n(2.4GHz only))
Communication mode Simple access point (Limited AP)
Security WPA2-PSK(WPS2.0-supported)
Tripod attachment screw-hole 1/4' Tripod attachment screw-hole
Power Supply 2 AA batteries (alkaline or NiMH),
USB bus power from a computer,
AC adapter (TASCAM PS-P515U, sold separately)
4 AA batteries (alkaline or NiMH),
USB bus power from a computer,
Dedicated AC adapter (GPE053B supplied with the unit)
Power consumption 1.7W(maximum) 2.5W(maximum)
Battery operation time
Format WAV, 44.1 kHz, 16 bit
Alkaline batteries (EVOLTA)
Recording About 17.5 hours (With built-in mic) About 16 hours (When MIC input is selected, phantom is not used)
Playback About 19 hours (With built-in speaker) -
Ni-MH batteries (eneloop)
Recording About 13.5 hours (With built-in mic) About 12 hours (When MIC input is selected, phantom is not used)
Playback About 14.5 hours (With built-in speaker) -
Dimensions 6.1" H x 2.1" W x  1.4" D
(155mm H x 52.2mm W ×36.6mm D)
6.3" L x 3.1" W x 1.7" H
(79mm L ×162.2mm  W × 42.5mm H)
Weight 6.0oz including batteries (170g) /
4.3oz without batteries (123g)
12.2 oz including batteries (346g) /
8.8oz without batteries (251g)
Accessories 4GB microSD card (in the unit), USB cable, 2 AA batteries for confirming operation, Owner's Manual (including warranty) AC adapter (GPE053B), 4GB microSD card with adapter (in the unit), USB cable (80 cm), 4 AA batteries for confirming operation, Fur windscreen, Mic stand adapter, Shoe mount adapter, Soft case, Owner's Manual (including warranty)



Audio Performance
Frequency response 20Hz to 20kHz +1dB/-3dB (Fs 44.1kHz, EXT IN to LINE OUT, JEITA)
20Hz to 22kHz +1dB/-3dB (Fs 48kHz, EXT IN to LINE OUT, JEITA)
20Hz to 40kHz +1dB/-3dB (Fs 96kHz, EXT IN to LINE OUT, JEITA)
Distortion 0.05% or less (Fs 44.1/48/96kHz, EXT IN to LINE OUT, JEITA)
S/N ratio 92dB or more (Fs 44.1/48/96kHz, EXT IN to LINE OUT, JEITA)



Computer Requirements
Windows
OS Windows XP, Windows Vista, Windows 7, Windows 8, Windows 8.1
Macintosh
OS Mac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard(V10.6.8), OS X Lion(V10.7), OS X Mountain Lion(V10.8), OS X Mavericks(10.9)
