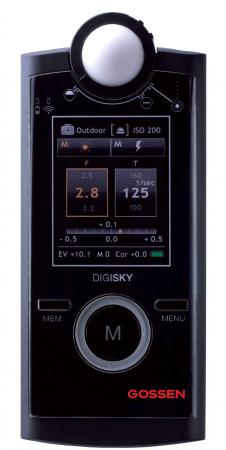

GOSSEN Digisky meter (520-digisky)

10%
off
$737.00 $663.30(AUD inc. Tax)
Qty
INDENT
Help

Specification
DIGISKY is the new handy and lightweight exposure meter in the GOSSEN range of products for flash light and ambient light. It is the big, well-arranged graphic display which permits a comfortable reading of the measured values. Designed for one-hand operating, the DIGISKY is equipped with a ring controller through which all functions may be selected very easily.
Even functions for special tasks may be set individually by means of three pre-settings, which may be chosen according to the photographer�s requirements. All measuring values may be indicated in full, � or 1/3 f-stops. The DIGISKY has a built-in remote radio trigger.
TFT-LCD Colour Graphic display
Even in dark ambience all measuring values may be read clearly. Well-arranged menu structure with every information at a glance.
Comfortable Triggering of your Studio Lighting
Up to 4 groups may be selected and triggered on 8 different radio frequencies.
Individual Configuration
Up to three profiles may be programmed and selected.




Technichal Data
Light Sensor two colour-corrected sbc silicon photo diodes
Processing of Measuring Values digital; repeat accuracy + 1 digit (=0.1EV)
Incident Light Reading diffuser characteristics adjustable to flat or spherical (180°)
Reflected Light Reading measuring angle 20°
Ambient Light
(when ISO 100/21°)
Incident Light Reading EV -2.5 to +18
Flash Light
(when ISO 100/21°)
Incident Light Reading f/1.0 to f/90
Functions Up to three user specific pre-settings possible, digital display, flash light measurements (cord/non-cord/remote trigger),
readout of the share of ambient light, USB interface for meter updates and for the transfer of the user setting from the
PC, overflow and underflow (for measurements and display), battery check, EV, correction values, displaying of position
of the measuring head, memory of measuring values, radio channel and group, dynamic analogue scale (for measuring
value correction in 1/10 stops), remote triggering of cameras for several camera companies
Film speeds from ISO 3/6° to 16000/43° in 1° DIN
Shutter speeds (standard values) 1/8000s up to 60 min in 1/1 or ½ or 1/3 f-stops
Flash synch speeds 1/1000 to 1 sec
Apertures ambient light f/1.0 to f/128
Apertures flash light f/1.0 to f/90
Correction values EV -9.9 to +9.9
Radio module OFF, elinchrom SkyPort and Skyspeed, more manufacturers of flash lights to follow
Radio groups 1 to 4 – ALL, A, B, C, D
Radio channels 1 to 8
Frequency channels Channel 1: 2456 MHz
Channel 2: 2458 MHz
Channel 3: 2460 MHz
Channel 4: 2462 MHz,
Channel 5: 2469 MHz
Channel 6: 2471 MHz
Channel 7: 2473 MHz
Channel 8: 2475 MHz
Power supply meter-specific rechargeable Lithium-Ion-battery
Operating temperature range -10°C to +50°C
Storage temperature -20°C to +60°C
Dimensions approx. 139 x 66 x 15 mm
Weight (incl. rechargeable battery) approx. 100 g
Subject to change
