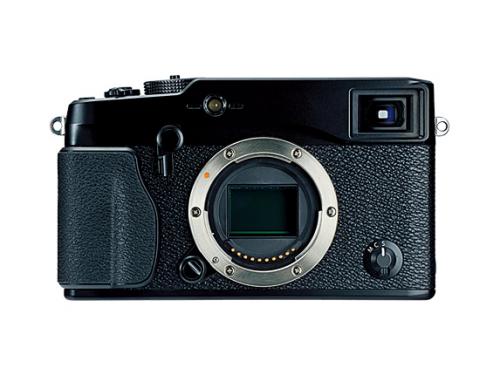

Fuji XPRO1 Dig camera
Fujifilm has designed the X-Pro 1 with a die-cast aluminum top and base, a leather like finish on the main body for grip and the look and feel of authentic leather, a natural fitting eyepiece and other elegant touches like precise engraving on the top-plate. This level of attention to design and a photographer's comfort when shooting makes it almost hard to believe the X-Pro 1 is a modern digital camera.
That being said, the X-Pro 1 is very much a digital camera, combining time-tested physical attributes - refined during the film era - and 21st century digital technology. Mirrorless, the camera's X Mount has a short flange back of just 17.7mm, meaning that rear lens elements are as close to the sensor as possible. This reduces the back focus distance of each lens and results in high resolution being achieved all the way to the edge of the image. The sensor is Fujiflm's 16.3Mp APS-C 23.6 x 15.6mm X-Trans CMOS sensor. The X-Trans utilizes a color filter array to attack moire and false colors, resulting in an exceptionally true-to-life image that sensor's with optical low-pass filters cannot approach. The EXR Processor Pro supports the X-Trans sensor in its mission and works with an integrated co-processor for high speed and precision.
The aforementioned X Mount attaches FUJINON XF lenses to the X-Pro 1 body. Each lens was designed precisely for the X-Pro 1 and promises enhanced resolution and light volume in edge areas, as well as reduced chromatic aberration. The XF lenses are all polished with Super EBC coating and feature an all-glass aspherical lens, among other elements. At the time of release the separately available lenses include the XF18mm F2 R, the XF35mm F1.4 R and the XF60mm F3.4 R Macro.
The X-Pro 1 also features the Hybrid Multi Viewfinder which allows you to switch between optical and electronic viewfinders. When an XF series lens is mounted to the camera the viewfinder magnification and frame size are automatically adjusted for immediate shooting. The optical viewfinder provides the brightest viewing image and keeps shutter lag to a minimum, while the electronic viewfinder provides focus confirmation, exposure information, white balance information and depth of field indicators, as well as a "Live View" of your composition. In addition to the Hybrid Multi Viewfinder, the X-Pro 1 has a 3.0" LCD screen with 100% coverage and 1,230,000 dots. Files can be stored to SD/SDHC/SDXC memory cards and still images can be recorded in JPEG and RAW formats. Of course, the X-Pro 1 can also capture H.264 HD video with stereo sound at 1920 x 1080 resolution. External TTL flashes can be attached to the camera using the hot shoe. Additional features include a self-timer, an ISO range of 200-6500 (extended range of 100-25,600) and spot, average, multi-zone and TTL 256-zone metering options, among other useful functions.
||By enhancing aperiodicity (randomness) in the array arrangement, the color filter minimizes generation of both moire and false colors, eliminating the necessity for an optical low-pass filter in the lens and enabling X-Trans CMOS sensor to capture full "unfiltered" lens performance
||The EXR Processor Pro is supported by an integrated co-processor for higher speed and higher precision image processing performance
||The optical low-pass filter prevents the occurrence of moire and false colors but results in a loss of resolution
||A higher degree of randomness with an array of 6 x 6 pixel units. Without using an optical low-pass filter, moire and false colors are eliminated while realizing high resolution. Inspired by the natural random arrangement of the fine grains of silver halide in film
||Designed especially for the X-Pro 1, the FUJINON XF Lens series promises enhanced resolution and light volume in image edge areas as well as reduced chromatic aberration for exceptional image quality
||Taking full advantage of the mirrorless design, the mount boasts a short 17.7mm flange back distance, a wider opening and deeper mounting of the lens, resulting in reduction of back focus distance to the minimum possible while achieving high resolution extending to the image edge areas
||Featuring the freedom to switch between an optical and electronic viewfinder, the Hybrid Viewfinder has evolved to meet the challenges of interchangeable lenses
||Viewfinder magnification automatically changes when an XF series lens is mounted and because there is very little noticeable difference in the angle of view when switching between OVF and EVF, viewing in either mode is smooth and natural
|Number of effective pixels
||16.3 million pixels
||23.6 mm x 15.6 mm (APS-C) X-Trans CMOS with primary color filter
- Sensor Cleaning system
- Ultra Sonic Vibration
||SD memory card / SDHC memory card / SDXC (UHS-I) memory card*1
- still image
- JPEG (Exif Ver 2.3)*2,
RAW (RAF format), RAW+JPEG
(Design rule for Camera File system compliant / DPOF-compatible)
- H.264 (MOV) with Stereo sound
|Number of recorded pixels
||L : (3:2) 4896 x 3264 / (16:9) 4896 x 2760 / (1:1) 3264 x 3264
M : (3:2) 3456 x 2304 / (16:9) 3456 x 1944 / (1:1) 2304 x 2304
S : (3:2) 2496 x 1664 / (16:9) 2496 x 1408 / (1:1) 1664 x 1664
L Vertical: 7680 x 2160 Horizontal: 7680 x 1440
M Vertical: 5120 x 2160 Horizontal: 5120 x 1440
||FUJIFILM X mount
|Compatible Interchangeable lens
- FUJINON LENS XF18mmF2 R
- FUJINON LENS XF35mmF1.4 R
- FUJINON LENS XF60mmF2.4 R Macro
||Equivalent to ISO 200 - 6400 (Standard Output Sensitivity)
AUTO mode : AUTO (400) / AUTO (800) / AUTO (1600) / AUTO (3200)
Extended output sensitivity equivalent ISO 100, 12800 and 25600
||TTL 256-zones metering, Multi / Spot / Average
||Programmed AE, Shutter priority AE, Aperture priority AE, Manual exposure
||-2.0 EV - +2.0 EV, inclement with 1/3 EV step
||Focal Plane Shutter
(with mechanical shutter)
|(P mode) 1/4 sec. to 1/4000 sec.,
(All other modes) 30 sec. to 1/4000 sec.
Bulb (max. 60 min.)
Time 2 to 30 sec.
Synchronized Shutter speed for flash :
1/180 sec or slower (P mode or A mode)
1/160 sec or sowler (S mode or M mode)
* 1/180 sec can be automatically set at some shooting conditions on P mode or A mode.
||Max 6 / 3 fps selectable
||AE Bracketing (±1/3 EV, ±2/3 EV, ±1 EV)
Film Simulation Bracketing (Any 3 type of film simulation selectable)
Dynamic Range Bracketing (100%, 200%, 400%)
ISO sensitivity Bracketing (±1/3 EV, ±2/3 EV, ±1 EV)
- Single AF / Continuous AF / MF Distance Indicator
- TTL contrast AF, AF assist illuminator available
- AF frame selection
- Area (EVF / LCD: 49 areas with 7 x 7, OVF: 25 areas with 5 x 5) / Multi
* changeable size of AF frame: among 5 type
||Automatic scene recognition
Custom, Color temperature selection (K)
Preset: Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, underwater
|Film Simulation mode
||10 type (PROVIA/STANDARD, Velvia/VIVID, ASTIA/SOFT, PRO Neg Hi, PRO Neg Std, MONOCHROME, MONOCHROME+Ye FILTER, MONOCHROME+R FILTER, MONOCHROME+G FILTER, SEPIA)
|Dynamic range setting
||AUTO (100-400%), 100%, 200%, 400%
||Approx. 10 sec. / 2 sec. Delay
||Hot shoe with TTL contacts; sync terminal
Red-eye removal OFF: Auto, Forced Flash, Suppressed Flash, Slow Synchro, Rear-curtain Synchro.
Red-eye removal ON: Red-eye Reduction Auto, Red-eye Reduction & Forced Flash, Suppressed Flash, Red-eye Reduction & Slow Synchro, Red-eye Reduction & Rear-curtain Synchro.
||Yes (dedicated TTL Flash compatible)
- Hybrid Multi Viewfinder
- Optical viewfinder
- Reverse Galilean viewfinder with electronic bright frame display
Magnifications: 0.37x / 0.6x
Coverage of frame area v.s. capturing area: approx. 90%
- Electronic viewfinder
- 0.47-in., approx. 1,440,000-dots color LCD viewfinder
Coverage of viewing area v.s capturing area: approx. 100%
- Eye sensor installed
- Eye point:
- approx. 14 mm
||3.0-inch RGBW (White) LCD monitor, approx. 1,230,000 dots, (Approx. 100% coverage)
||1920 x 1080 pixels, 1280 x 720 pixels (24 frames/sec.) with stereo sound
Individual movies can not exceed 29 minutes in length.
||Select custom setting, Motion panorama, Color space, Color (Saturation), sharpness, Dynamic range, Film simulation, Gradation, Auto red-eye removal, Framing guideline, Frame No. memory, Histogram display, Preview depth of focus, Focus check, Electronic level, Multiple exposure, Date input, Fn button setting (RAW, Movie, etc)
||RAW conversing, Image rotate, Red-eye reduction, Photobook assist, Erase selected frames, image search, Multi-frame playback (with micro thumbnail), Slide show, Mark for upload, Protect, Crop, Resize, Panorama, Favorites
||PictBridge, Exif Print, Languages selection, Time difference, Quick start mode, Power save mode, Silent mode
- Video output
- Digital interface
- USB 2.0 High-Speed
- HDMI output
- HDMI mini connector
||NP-W126 Li-ion battery (included)
||139.5 (W) x 81.8 (H) x 42.5 (D) mm / 5.5 (W) x 3.2 (H) x 1.7 (D) in.
(Minimum depth: 34.1 mm / 1.3 in.)
||Approx. 450 g / 15.9 oz. (including battery and memory card)
Approx. 400 g / 14.1 oz. (excluding battery and memory card)
||0°C - 40°C
||10 - 80% (no condensation)
|Guide to the number of available frames for battery operation
||approx 300 frames
|Starting up period
||Approx. 0.5 sec. ( Approx 1.0 sec, when QUICK START mode and Power save mode is set to OFF)
- * evaluated by FUJIFILM method
||Li-ion battery NP-W126
Battery charger BC-W126
Metal strap clip
Clip attaching tool
CD-ROM (Viewer software, RAW File Converter etc.*3)
- *1Please see the Fujifilm website to check memory card compatibility.
- *2Exif 2.3 is a digital camera file format that contains a variety of shooting information for optimal printing.
