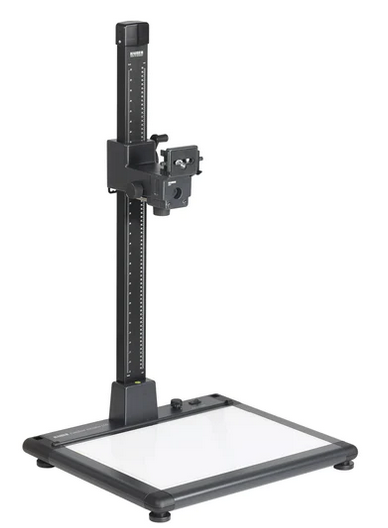

KAISER 5215 copylizer copy stand (SC-K5215)

Camera stand with integrated transmitted light source.

• Illumina base plate with 270 SMD LEDs, 5600 Kelvin daylight, color rendering index (CRI) = 95
• Serviceable illuminated area 50.6 x 36 cm (19.9 x 14.2 in., > tabloid format), illuminance approx. 8300 cd/m², brightness continuously dimmable, flicker-free operation.
• Mounting fixtures for optional RB 5270 DX (5278) and RB 525 AS (5284) surface lighting units.
• Height-adjustable feet.
• Base with spirit level.
• 70 mm (2.8 in) wide high-stability, vibration-resistant column made of special aluminum tubing, matt black anodized, with cm and inch scales.
• Hand-crank operated height adjustment of camera arm by friction drive on plastic bearings.
• Weight compensation by integrated coil spring.
• RTP camera arm with horizontally adjustable camera platform, camera body positioning device and interchangeable 1/4” and 3/8” threads.
• Illumina base (WxD): 63 x 55 cm (24.8 x 21.7 in.)
• Column height: 1 m (40 in.)
• Max. load: approx. 4 kg (8.8 lbs.)

Accessories

5278 - RB 5270 DX Copylizer Lighting Unit

5292 - Pressure Plate for Copylizer and Illumina Base exe.cutive

5294 - Metal Plate for Copylizer and Illumina Base exe.cutive
