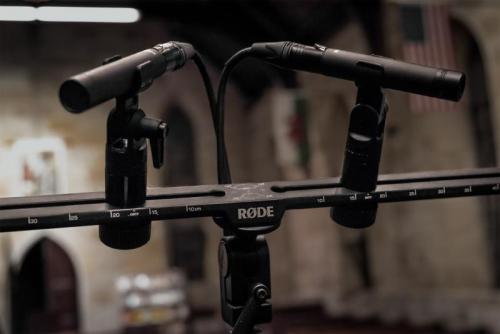

RODE TF5 matched pair mic (AMR-40TF5MP)

15%
off
$2,017.40 $1,714.79(AUD inc. Tax)
Qty
OUT OF STOCK - BACK ORDER NOW
Help

The TF-5 features the hallmark clarity and airiness of other RØDE small diaphragm mics, and adds to this a unique warmth of tone which is often lacking in smaller ‘pencil mics’ of this type, making the TF-5 uniquely versatile.

Features

  • Precision-paired small diaphragm cardioid condenser microphones
  • Ultra-low noise
  • Flat frequency response
  • Tight cardioid directivity
  • Warm, accurate sound
  • Suitable for the most critical recording applications
  • Designed in collaboration with Grammy® award winning classical producer and engineer, Tony Faulkner
TF-5 Specifications
ACOUSTIC & ELECTRICAL SPECIFICATION
Acoustic Principle

Externally biased condenser


Active Electronics

JFET impedance converter with bipolar output buffer


Polar Pattern

Cardioid


Frequency Range

20Hz - 20kHz


Frequency Response

30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB


Output Impedance

63Ω


Signal to noise Ratio

80 dB


Equivalent Noise

14 dB SPL

(A-weighted, as per IEC651)


Input SPL @ 1% THD

135 dB SPL (1kHz @ 1% THD, 600Ω load)


Sensitivity

-29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz)


Dynamic Range

112.6 dB (1kHz @ Max SPL)


Power Requirements

7mA @ 48V phantom power


MECHANICAL SPECIFICATION
Weight (g)

114g (single microphone)


Dimensions

Length: 98.7mm Diameter: 20mm

No accessories for this product.

FREE FREIGHT or POSTAGE
(Packing, handeling and shipping charges have been incorporated in the cost of these goods)
Today we are offering free freight in Australia on this product.Small items will ship via Australia post. All other products will ship via road freight or local couriers.This is a limited offer and subject to change at any time.

For Lab service products the return post or freight has been incorporated in the price and for Drop box only services there is NO freight applicable.
