MANFROTTO MK190XV+MVH500AH SET head+tripod (TM-190XVMVH500AH)

10%
off
$806.29 $725.66(AUD inc. Tax)
Qty
OUT OF STOCK - BACK ORDER NOW
Help

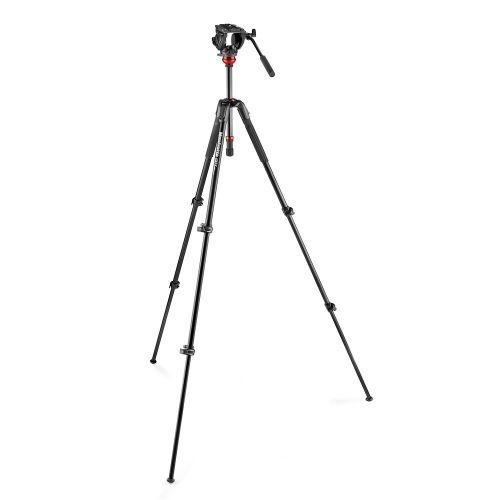

The new MVK500190XV is a video system composed by MVH500AH fluid video head and dedicated 190X Video aluminium tripod, ensuring the utmost versatility and carrying convenience.

The 500 head comes in the flat base version, for greater versatility when it comes to using it in combination with other video accessories (such as slider or jib). It also features fluid cartridges on both pan and tilt axes to ensure that every camera movement is smooth. It comes with a side lock system, allowing the camera and sliding plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. The side lock system also makes it quicker and simpler to lift the camera out of the head from above. The head has a pre-set counterbalance of 2.4kg at 55mm C.O.G., but can support up to 5kg of equipment. It has a 3/8'' Easy Link connector to fit an external monitor or other accessories. The dedicated single leg, 3 section, aluminium 190X Video tripod features a levelling column for quick and easy set-up, easily extendible, adjustable legs and Quick Power Lock (QPL) levers that rapidly block or unblock each leg section.
The tripod’s casting also features an Easy Link connector equipped with anti-rotation for accessories.

The system can support up to 5 kg.

Specifications

Weight

3.2 kg

Top Attachment

1/4″ screw, 3/8″ screw

Ball Flat

Flat

Safety Payload Weight

5 kg

Powered by (batteries)

0

Base Diameter

60 mm

Bubble Spirit Level (No.)

1

Counterbalance Weight

2.4 kg

Certifications

None

Closed Length

72.2 cm

Colour

Black

Front Tilt

-70° / +90°

Head Type

Video/Fluid Head

Leg Type

Single

Leg Angles

25°,46°,66°,88°

Leg Lock Type

Flip Lock

Leg Sections

3

Material

Aluminium

Maximum Height

173.3 cm

Maximum Height (with Center Column Down)

149.3 cm

Maximum Working Temperature

60 °C

Min Height

50.3 cm

Minimum Working Temperature

-20 °C

Pan Bar Included

Yes

Pan Drag

fluid cartridge with fixed drag

Panoramic Rotation

360 °

Plate Type

No accessories for this product.
