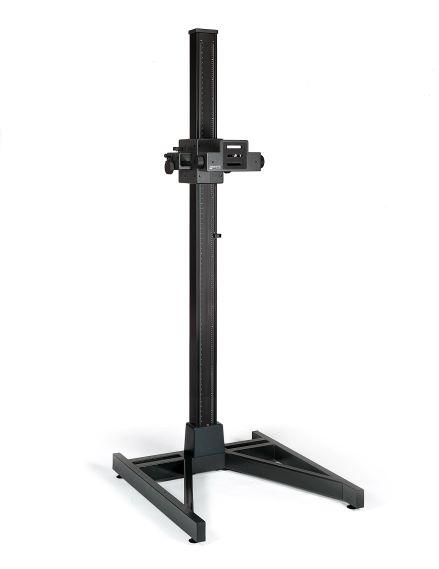

KAISER 5711 RSP Xtra copy stand (SC-K5711)

Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales. Column foot made of double strutted steel tube. Steel socket for bolting the column. Four levelling feet.

Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate tiltable by +/- 90°. Built-in spirit level. Camera carrier with motorized
height adjustment. Two travel speeds, independent of load. Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor. Cable remote control.

Stand is supplied without baseboard, intended to be used with Table for Copying Works 5712, with Table 5630 or custom-made devices.

Specifications:
Total height: 227 cm (89.4 in.)
Column cross section: 120 x 80 mm (4.7 x 3.1 in.)
Maximum load: 15 kg (33 lbs.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 1/4“ / 3/8“
Required floor space (WxD): 83 x 114 cm (32.7 x 44.9 in.)
