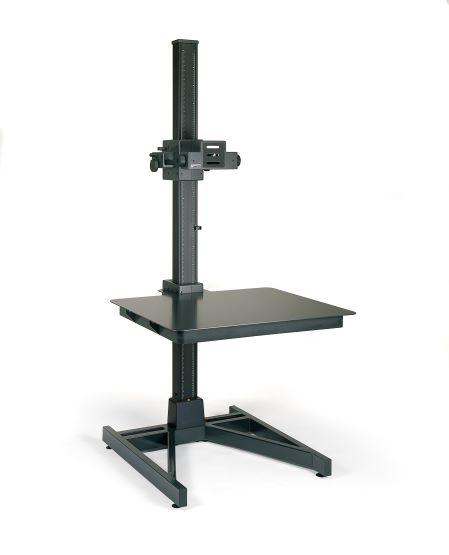

KAISER 5710 RSP 2motion column copy stand (SC-K5710)

10%
off
$25,925.90 $23,333.31(AUD inc. Tax)
Qty
OUT OF STOCK - BACK ORDER NOW
Help

Accepts originals up to 100 x 80 cm (39.4 x 31.5 in.). Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales. Column foot made of double strutted steel tube. Steel socket for bolting the column. Four levelling feet. Detachable base board made of 4 mm aluminium with stabilizing substructure.

Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation. Two blocking screws. Camera mounting plate tiltable by +/- 90°. Built-in spirit level.
Camera carrier and base board with individual motorized height adjustment. Two travel speeds, independent of load. Self-limiting worm gear: any height position is exactly held. Automatic end switch by magnet sensor. Anti-collision device.
Cable remote control.



Specifications:
Total height: 227 cm (89.4 in.)
Maximum working span: 160 cm (63 in.)
Column cross section: 120 x 80 mm (4.7 x 3.1 in.)
Maximum load:  on camera carrier: 10 kg (22 lbs.)
                        on base board: 15 kg (33 lbs.)
Base board: 100 x 80 cm (39.4 x 31.5 in.)
Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
Connecting thread (interchangeable): 1/4“ / 3/8“
Required floor space (WxD) : 100 x 126 cm (39.4 x 49.6 in.)
