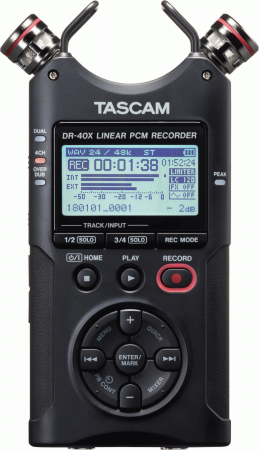

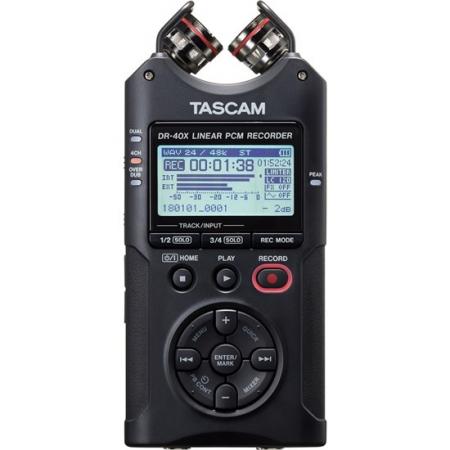

TASCAM DR40X Portable digital recorder New

25%
off
$439.00
$329.00(AUD inc. Tax)
Qty
In stock

Versatile four-track audio recorder for cinema, music, podcasting and any other application. Easy-to-use compact design with a high-performance feature set and versatile audio I/O, all to produce professional content.

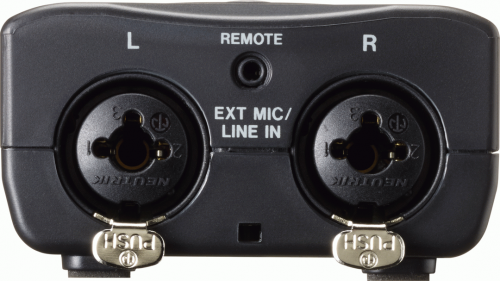

Dual Neutrik® XLR/TRS combo jacks support both mic-level and +4dBu line-level. These inputs can accept balanced microphone or line level from Mixers or the FOH console. The microphone preamp includes +48V phantom power and plenty of gain for detailed recordings with condenser microphones, as well as electret type microphones. Using the stereo built-in microphones, you can capture ambient sound of the audience while recording direct from an external console, which is ideal for capturing live performances.

DR-40X allows high-quality recording with its stereo built-in condenser microphones. Every detail is captured from small whispers to loud sounds up to 125dB SPL. These built-in microphones are adjustable unidirectional microphones for recording in an X-Y pattern for tight stereo imaging, or in an A-B pattern for a more ambient recording.

The layout of the DR-40X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding markers are just a button press away. Menu display of DR-40X supports 10 languages: English/ Spanish/ French/ Italian/ German/ Russian/ Chinese/ Korean/ Japanese/ Portuguese.

DR-40X uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries. Also dr-07x can be powered by a USB mobile battery as well for super long extended use. Connecting to a PC using USB Audio interface mode, and DR-40X becomes a tool for voiceover work, live streaming and songwriting with studio-quality audio. Built-in microphones work as USB microphones. Writing down what you hear – Easier said than done, but it is actually easy with DR-40X. In addition to its capability to capture crisp voice recording, DR-40X can help you with its Jump back function, variable Speed function and equalizer preset for human voice.

In addition to normal stereo channel recording and Dual Recording mode, DR-40X has “4CH Mode” that can record two different stereo feeds simultaneously. The combination of the sources are flexible; recording the built-in microphones along with a pair of external Mics such as close-up and ambient microphones, or recording the built-in Mics along with a balanced line input such as the feed from a mixer along with the sound in the room. Film-makers and videographers often experience sudden audio volume spikes during filming. An actor could suddenly scream, or a documentary subject could do almost anything. DR-40X has a Dual Recording mode that captures a copy of your take but at a lower level, as a safety track in case of sudden distortion. Also, Auto recording function can detect the sound input signal level and automatically start recording. The Pre-recording function with up to 2 seconds pre-record provides fail-safe protection.

Peak Reduction works in rehearsal mode or in record. Even if the sound or performance is louder than the sound check you’re safe. Combined with Auto level and Limiter for preventing distortion, you never have to worry. If you don’t like the last part of a phrase you just recorded with your guitar, or if you change your mind and want to rephrase narration, the “Overwrite mode” is exactly what you need. Overwrite mode allows punch-in recording from a desired point. It is destructive editing with one level of undo. The overdubbing function allows for Overdub Recording while playing a previously recorded file. This allows you to record other parts such as a guitar solo over a recording previously made such as at a rehearsal studio. Overdubbing creates a new file, leaving the original file unaffected, making it easy to re-record.

DR-40X support a SDXC card, which can record longer with larger data capacity. If you record one stereo file in 44.1kHz/ 16bit CD quality, 128GB card holds 192 hours maximum. In MP3/ 320kbps, it can record up to 896 hours. (that is 37 days!).

Features
  •
    • High-quality unidirectional stereo condenser microphones that can record in A-B and X-Y positions
    • XLR/TRS inputs compatible with +4dBu line level / +48V
    • 4-channel mode that can be used for dual recording and nondestructive overdub recording, etc.
    • Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
    • Dictation mode designed for human voice recording and transcription
    • MS decoding function making it possible to use M-S microphones
    • Optional RC-3F foot switch and RC-10 wired remote control can be connected
    • Long-time operation of maximum 18 hours is possible using just the internal batteries
    • Auto recording function
    • Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
    • Peak reduction function that detects peaks and automatically sets the optimal level
    • Level align feature that prevents uneven volume levels
    • Equalizer setting for adjusting playback sound quality
    • QUICK menu button for easy access to various functions
    • High-quality 24-bit/96kHz WAV/BWF linear PCM and MP3
    • SD/ SDHC/ SDXC (up to 128GB) can be used for recording media
    • Built-in monaural speaker with an output of 0.3W
    • When a predetermined maximum file size is reached, a new file is created to continue recording
    • Playlist function
    • A chromatic tuner is equipped which is helpful for practicing musical instruments
    • 128×64 pixel graphic LCD with backlight
    • High-speed file transfer to a computer using USB 2.0
    • Powered by 3 AA batteries, USB bus power, or optional AC adapter (PS-P520E)
    • Rubber feet for improving acoustic properties during desktop recordings are included
    • Tripod attachment screw-hole built in to the unit



Audio Performance

Frequency Response
Fs 44.1kHz 20Hz to 20kHz, +1/-3dB (EXT IN to LINE OUT, JEITA)
Fs 48kHz 20Hz to 22kHz, +1/-3dB (EXT IN to LINE OUT, JEITA)
Fs 96kHz 20Hz to 40kHz, +1/-3dB (EXT IN to LINE OUT, JEITA)
Total Harmonic Distortion 0.05% or less (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA)
Signal-to-Noise Ratio 92 dB or higher (Fs 44.1k/48k/96kHz, EXT IN to LINE OUT, JEITA)



Computer Requirements

Windows
Computer Windows PC with USB2.0 or USB3.0 port
CPU Dual Core, 2GHz or faster (x86)
Memory 2GB or more
Macintosh
CPU Power PC, iMac, G3, G4, G5 266MHz or faster
Memory 64MB or more
USB USB2.0 recommended
Recording Media SD card (64MB to 2GB), SDHC card (4GB to 32GB), SDXC card (up to 128GB)
File System FAT16/32, exFAT
Recording File Format
WAV / BWF
Sampling Frequency 44.1k / 48k / 96k Hz
Bit-depth 16 / 24-bit
MP3
Sampling Frequency 44.1k / 48k Hz
Recording Bit-rate 32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate 32k to 320k bps, VBR, ID3TAG Ver. 2.4
Number of Channels 4-channel (2 Stereo)
Playback speed control 0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only
Built-in Microphone Unidirectional, Stereo (switchable between A-B and X-Y positions)
EXT MIC/LINE IN
Connector XLR/TRS Combo jack (1: GND, 2: HOT, 3: COLD)
Nominal Input Level -19dBV (MIC) / +4dBu (LINE)
Maximum Input Level -3dBV (MIC) / +20dBu (LINE)
Input Impedance 2.2kΩ (MIC) / 10kΩ (LINE)
PHONES/LINE OUT
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
for LINE connection
Nominal Output Level -14dBV (10kΩ load)
Maximum Output Level +2dBV (10kΩ load)
Output Impedance 12Ω
for Headphones connection
Maximum Output Power 20mW + 20mW (32Ω load)
USB
Connector USB Micro B-type
Format USB2.0 HIGH SPEED
Built-in Speaker 0.3W, Mono
Low-cut Filter 40 / 80 / 120Hz
Chromatic Tuner C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod attachment screw-hole 1/4" Tripod attachment screw-hole
Power 3 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption 2.5 W (Max)
Battery Operation Time
(Recording)

Alkaline (EVOLTA) approx. 18 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Ni-MH (eneloop) approx. 16 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Dimensions (W×H×D) 2.75" × 6.1" × 1.37" / 70 × 155 × 35 mm
Weight 8.3 oz. / 213 g
