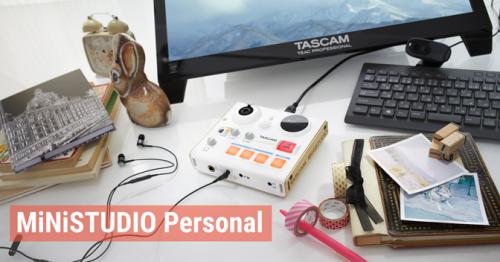

Designed to bring an extra dimension to your podcasts and live streaming, the TASCAM MiNiSTUDIO features three assignable PON sound effect buttons. Use the included bell, buzzer and applause effects or apply your own .wav or .mp3 files for a completely customized experience. You can also set each velocity sensitive PON button to act as a one-shot sound effect, to only play while you press or to loop as long as you hold the button down. Why should the morning DJ's have all the fun?
Diguise your voice, fool your fans! Perhaps the most extreme feature of the MiNiSTUDIO Personal is the Voice Effects option. Simply pressing this innocent little button will instantly transform your voice in any one of a number of amazing and amusing ways. Pitch your voice up into cartoon mouse territory or pitch it down like you've joined the Dark Side. Add a spacey Echo, wobbly Chopper or go old school with the Walki-talkie-approved Radio effect. Voice Effects: crazy, wacky and a whole lot of fun.
In addition to the default Easy mode of the TASCAM MiNiSTUDIO software panel is an Expert mode that can be accessed by selecting the tab along the top of the window. This exposes a more comprehensive set of controls that enable you to fine tune EQ, compression and reverb settings as well as customize the behavior of the PON sound effect buttons and the various Voice Effect options. Don't be fooled by the friendly face of the MiNiSTUDIO - underneath the shiny exterior lies a truly professional tool that proudly carries the TASCAM name.
You talk. You play music. You play games. You fire off PON sound effects and bathe your voice in the mysterious fog of a reverberant hallway. In short, you create an immersive soundscape that you want to share with your listeners. To make this dream a reality, the MiNiSTUDIO Personal US-32 supports TASCAM's unique Broadcast architecture that seamlessley mixes your voice and effects with any and all audio produced by your PC or Laptop.
MINISTUDIO PERSONAL US-32 SPECIFICATIONS
| MiNiSTUDIO Personal US-32 | MiNiSTUDIO Creator US-42 | |
| Sampling frequency | 44.1k/48k/88.2k/96kHz | |
| Quantization bit rate | 16/24bit | |
| Analog audio inputs | ||
| MIC IN | IN 1 | IN 1-2 |
| Connector | XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED | |
| Input impedance | 2.4k ohms | |
| Maximum input level | +7.7dBV (2.427Vrms) | |
| Gain | 45dB | |
| INST IN |
– | UNBALANCED IN 1 |
| Connector | – | 6.3mm(1/4")TS-jack(T：HOT, S：GND), UNBALANCED (When set to "INST" at MIC/LINE/INST switch) |
| Input impedance | – | 1M ohms |
| Gain | – | 45dB |
| MIC IN (Plug-in Power) |
3.5mm(1/8”) 4-pole mini jack/3.5mm (1/8”) mini jack | |
| Input Impedance | 5k ohms or more | |
| Gain | 45dB | |
| LINE IN |
3.5mm(1/8”) stereo mini jack | |
| Input Impedance | 5k ohms or more | |
| Maximum Input Level | +7.7dBV (2.427Vrms) | |
| MIC 2 |
Omnidirectional Condenser Mic | – |
| ANALOG AUDIO OUTS | ||
| LINE OUT | – | Stereo RCA Jacks |
| Output impedance | – | 200k ohms or more |
| Nominal output level | – | -10dBV (0.316Vrms) |
| Maximum output level | – | +6dBV (1.995Vrms) |
| PHONES | ||
| Connector | 1/4” Stereo Phone-jack/ 3.5mm(1/8”) 4-pole mini jack/3.5mm (1/8”)Stereo mini jack | |
| Maximum output level | 15mW+15mW above (Less than THD+NO.1%,32Ωloaded) |
|
| CONTROL INPUT/OUTPUT |
||
| USB | USB B-type 4-pin | |
| Format | USB2.0 High Speed (480MHz) | |
| DC IN 5V | USB Micro B type | |
| AUDIO PERFORMANCE | ||
| Frequency response | ||
| (To PHONE OUT) | (To LINE OUT) | |
| 44.1k/48kHz | 20Hz to 20kHz 0/-1dB (PHONE OUT, JEITA) | 20Hz to 20kHz 0/-1dB (LINE OUT, JEITA) |
| 88.2k/96kHz | 20Hz to 40kHz 0/-3dB (PHONE OUT, JEITA) | 20Hz to 40kHz 0/-1dB (LINE OUT, JEITA) |
| EIN | Less than -113dBu (150 ohm terminated, volume max) |
Less than -120dBu (150 ohm terminated, volume max) |
| THD+N | Less than 0.008%/ | Less than 0.005% |
| S/N ratio | 90dB or more (MIC IN to PHONE OUT, volume min, JEITA) |
100dB or more (MIC IN to LINE OUT, volume min, JEITA) |
| Crosstalk | 95dB or more (MIC IN to PHONE OUT, 1kHz, JEITA) |
95dB or more (MIC IN to LINE OUT, 1kHz, JEITA) |
