GGS S5 Multiangle SWIVI LCD for DSLR (CVF-S5)

GGS Swivi S5 Foldable Optical Viewfinder for DSLR Camera with 3"/3.2" 3:2/4:3 LCD Screen 3x Magnification Loupe /Magnifier

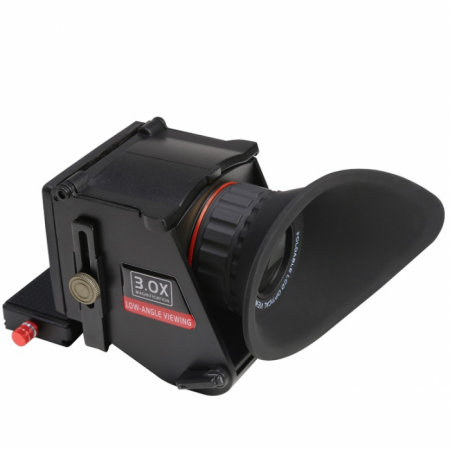

SWIVI S5 viewfinder provides an extremely clear, magnified view. Essentially when shooting video in daylight condition.
It has 2 different modes: Magnification and Low-angle view. Magnification mode provides a 3 times magnifying view on LCD .It also has a mirror, can be uesd as low-angle viewfinder.Offers much convenience for video shooting. Rubber eyecup can be changed to different direction for different eye.

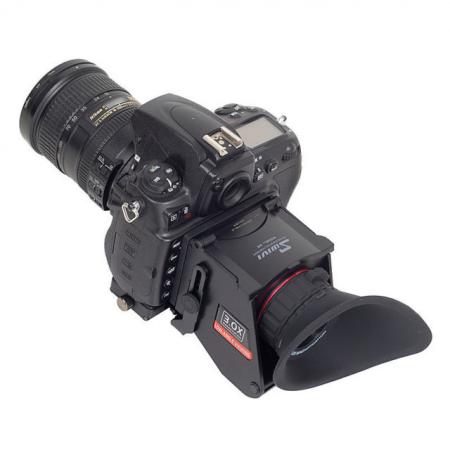

The viewfinder attaches to the camera by using included mounting plate. Attach the mounting plate on the tripod thread under the camera, the plate and the viewfinder frame can be adjusted all direction to fit different camera bodies.

Specification
Lens: 3piece/group
Magnification: 3×
Dioper: ≤3
Transmittance:＞90%
Lens Aperture: 40mm

Support: 3"/3.2" 4:3/3:2

Screen size 68.6 mm x55.5mm

Mode: High-angle Finder/Magnification/ Low-angle Finder

Installation Procedure
1. Attach mounting place under the camera
2. Separate frame from viewfinder and reverse it.
3. Loose the screws on the frame and plate side.
4. Insert the viewfinder frame into the plate
5. Adjust the frame front/rear vertical and horizontal to fit the camera LCD(use extension frame for battery grip)
6.Tighten the screws on the frame and plate and make sure viewfinder doesn't move.
7.When you need to remove viewfinder,just need to loose the screw on the plate(side)

Magnification/ Low-angle Finder
